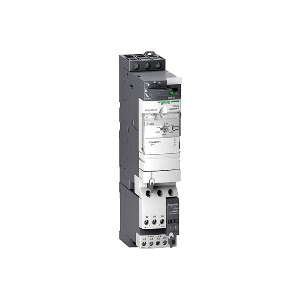

Square D LU2B12B Starter Power Base
Image Disclaimers Message
Brand: Square D
Square D LU2B12B Starter Power Base
Brand: Square D
Square D LU2B12B Starter Power Base
Part #:LU2B12B
SKU #: 2310884
$422.47/EA
Key Features
Part #:LU2B12B
SKU #: 2310884
Brand: Square D
Dimensions: 1.77 in W x 4.96 in D x 8.82 in H, 8.82 in H x 1.77 in W x 4.96 in D
Series: LU2B
Specifications: 24 VAC, 12 A, 1.7/2 W, 50/60 Hz, 3-Poles, 1NO-1NC
Suitable For Use With: Combination Motor Starters
Type: Reversing, Self-Protected
$422.47/EA
- Suitability for isolation
- 10 kA 500 VAC, 4 kA 690 VAC, 50 kA 230 VAC, 50 kA 440 VAC rated service breaking capacity
- 2360 mA at 24 VAC I maximum while closing typical current consumption
- 150 ms with change of direction power circuit, 35 ms opening control circuit, 70 ms closing control circuit, 75 ms without change of direction power circuit operating time, 25 ms AC network 50/60 Hz duration of inrush phase
- 15000000 cycles mechanical durability, 60 cycles/min operating rate, 6 kV conforming to IEC 60947-6-2 rated impulse withstand voltage, 600 VAC conforming to CSA C22.2 No 14, 600 VAC conforming to UL 508, 690 VAC conforming to IEC 60947-1 3 rated insulation voltage
- Control circuit: 7.08-10.62 lbf.in- with screwdriver 0.2 in flat, control circuit: 7.08-10.62 lbf.in - with screwdriver 0.2 in Philips no 1, power circuit: 16.81-22.12 lbf.in- with screwdriver 0.24 in flat, power circuit: 16.81-22.12 lbf.in - with screwdriver 0.24 in Philips no 2 tightening torque
- 2 W for control circuit with LUCA, LUCB, LUCC, LUCD, 1.7 W for control circuit with LUCM heat dissipation
- IP20 front panel and wired terminals conforming to IEC 60947-1, IP20 other faces conforming to IEC 60947-1, IP40 front panel outside connection zone conforming to IEC 60947-1 IP degree of protection
- TH conforming to IEC 60068 protective treatment
- 1 kV serial mode conforming to IEC 60947-6-2, 2 kV common mode conforming to IEC 60947-6-2 non-dissipating shock wave, 10 V conforming to IEC 61000-4-6 immunity to radio electric fields
- 1/2 hp at 1 phase 120 VAC, 2 hp at 1 phase 240 VAC, 10 hp at 3 phase 575 VAC, 3 hp at 3 phase 208 VAC, 3 hp at 3 phase 220/240 VAC, 7.5 hp at 3 phase 460 VAC power rating
- -13 to 140 deg F with LUCM/-13 to 158 deg F with LUCA, LUCB, LUCC, LUCD
Specifications
Brand: Square D
Dimensions: 1.77 in W x 4.96 in D x 8.82 in H, 8.82 in H x 1.77 in W x 4.96 in D
Series: LU2B
Specifications: 24 VAC, 12 A, 1.7/2 W, 50/60 Hz, 3-Poles, 1NO-1NC
Suitable For Use With: Combination Motor Starters
Type: Reversing, Self-Protected
UNSPSC: 39121521
UPC: 00785901202486
Square D LU2B12B Starter Power Base
Square D Starter Power Base, Self-Protected, Series: LU2B, 8.82 in H x 1.77 in W x 4.96 in D
Additional Description: SQD -LU2B12B (N) REVERSER 12A 24V AC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Reversing power base, TeSys Ultra, 3P, 12A/690V, coil 24VAC
