Brand: Square D

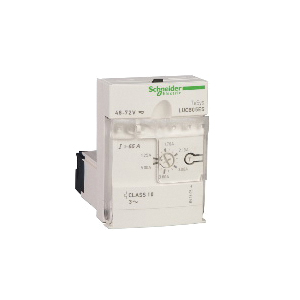

Square D LUCBX6BL Advanced Control Unit
Image Disclaimers Message
Brand: Square D
Square D LUCBX6BL Advanced Control Unit
Brand: Square D
Square D LUCBX6BL Advanced Control Unit
Part #:LUCBX6BL
SKU #: 2246108
$129.86/EA
Key Features
Part #:LUCBX6BL
SKU #: 2246108
Brand: Square D
Amperage Rating: 0.15 to 0.6
Coil Voltage: 24
Dimensions: 4 in L x 3.1 in W x 2.1 in H
Electrical Connections: Wired
Enclosure Type: IP20/IP40
$129.86/EA
- -40 to 85 deg C storage temperature
- 0.25 kW at 400 to 440 VAC kW Motor power
- 25/280/35 mA consumption current
- Plug-in mounting mode
- 88 to 242 VDC/264 VAC control circuit voltage limits
- Protection against phase failure and phase imbalance
- Protection against overload and short-circuit
- Earth fault protection
- -25 to 70 deg C operating temperature
Specifications
Brand: Square D
Amperage Rating: 0.15 to 0.6
Coil Voltage: 24
Dimensions: 4 in L x 3.1 in W x 2.1 in H
Electrical Connections: Wired
Enclosure Type: IP20/IP40
Frequency Rating: 50/60
Motor Power: 0.09
Operating Temperature: -25 to 70
Overload Relay: Thermal
Phase: 3
Reset Type: Manual
Series: LUCB, TeSys™ LUCB
Temperature Rating (Degrees F): -13 to 158
Type: 3-Phase Class 10 Solid State, Class 10
Voltage Rating: 24, 400 to 440
Connection type: Plug-In
Mounting type: Front Side/Plug-In
UNSPSC: 39121521
UPC: 00785901222637
Square D LUCBX6BL Advanced Control Unit
Square D Advanced Control Unit, Class 10, Series: LUCB
Additional Description: SQD -LUCBX6BL ADVANCED CU 0.15-0.6A 24V DC 24VDC 0.15-0.6A 24VDC
Catalog Description: Advanced control unit, TeSys Ultra, 0.15A to 0.6A, 3P motors, protection & diagnostic, class 10, coil 24VDC
