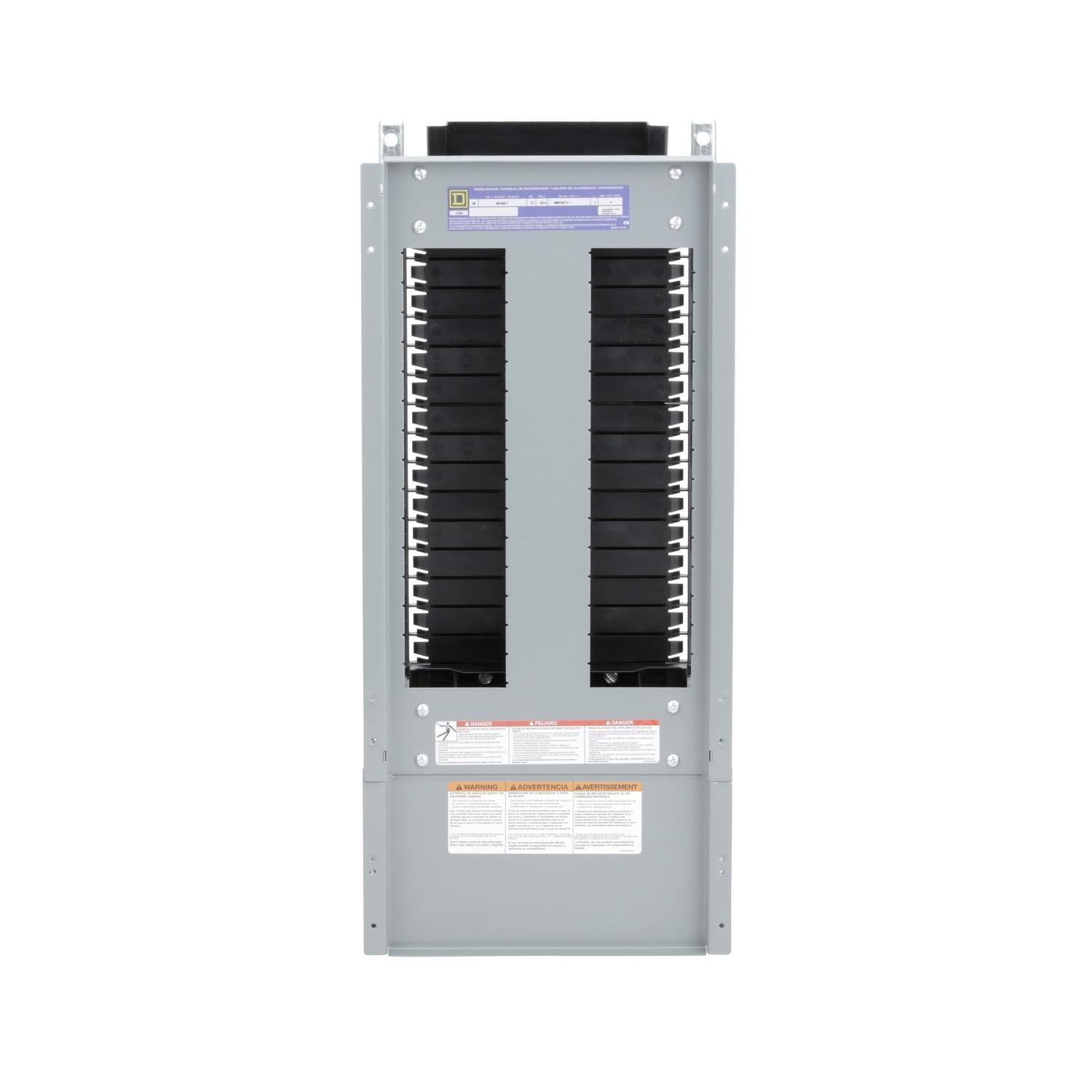

Square D NF430L1 Panelboard Interior
Image Disclaimers Message
Square D NF430L1 Panelboard Interior
Square D NF430L1 Panelboard Interior
Part #:NF430L1
SKU #: 2217343
Key Features
Part #:NF430L1
SKU #: 2217343
Brand: Square D
Amperage Rating: 125 A
Breaker Mounting: Bolt-On
Breaker Type: EDB
Bus Material: Aluminum
Dimensions: 20 in W x 5-3/4 in D x 44 in H, 27 in H x 10-7/16 in W x 5-3/4 in D, 44 in H x 20 in W x 5-3/4 in D
- Bottom connection
- Main lugs only
- 20 in enclosure nominal width
- 3-phase
- 32, 44 in enclosure nominal height
- https://www.youtube.com/watch?v=abIf06C7qgc
Square D NF430L1 Panelboard Interior
Square D Panelboard Interior, Main Lug, Series: NF Series, 480Y/277 VAC, 125 A, 30 Spaces, 100000 A Short Circuit, EDB Breaker, Bolt-On Breaker Mounting, 4-Wire Wiring Configuration, Aluminium Bus, Panel Mount, 27 in H x 10-7/16 in W x 5-3/4 in D
Additional Description: SQD -NF430L1 PANELBOARD INTERIOR NF 125A MLO 30CKT 3P
Catalog Description: Panelboard interior, NF, main lugs, 125A, Al bus, 30 pole spaces, 3 phase, 4 wire, 600Y/347VAC max
