Part Number # NSYS3DC101030
SKU # 2232316
NSYS3DC101030
Square D NSYS3DC101030 Special Enclosure
Part Number # NSYS3DC101030
SKU # 2232316
Square D NSYS3DC101030 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | NSYS3DC101030 |
| SKU #: | 2232316 |
| Finish: | Epoxy Polyester Powder Coated |
| NEMA Rating: | NEMA 1/2/3/3R/4/4X |
| Series: | NSYS3DC |
| Type: | 1-Door Compact |
| Country of origin: | FR |
| Depth: | 300, 300 mm |
| Height: | 1000 mm |
| Length: | 800 |
| Material: | Steel |
| Mounting type: | Wall |
| Width: | 1000, 1000 mm |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121303 |
| UPC: | 00785901662761 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D NSYS3DC101030 Special Enclosure
Brand: Square D
Part Number: NSYS3DC101030
Square D Special Enclosure, 1-Door Compact, Series: NSYS3DC, 1000 mm Width, 300 mm Depth, 1000 mm Height, NEMA 1/2/3/3R/4/4X NEMA Rating, Hinged Cover, Lock: 3-Point/Screw Driver Insert, Wall Mounting, Steel, Epoxy Polyester Powder Coated, Gray
Additional Description: SQD -NSYS3DC101030 S3DC H1000xL1000xP300 plain door
Catalog Description: Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1000x1000x300mm, IP66, IK10
NSYS3DC101030 Application
For protecting equipment in most indoor installations with harsh and dirty environments, gutter shaped front profile double sheet THK single piece body and multi-purpose applicationsNSYS3DC101030 Item Features
- IP66 conforming to IEC 60529
- Without mounting plate, plain chassis and cable gland plate
NSYS3DC101030 Standards
RoHS Compliant|IEC 62208|UL 508A|Green Premium Listed|REACH Compliant|ECCN: EAR99SKU #2232316Part Number #NSYS3DC101030UNSPSC39121303UPC00785901662761

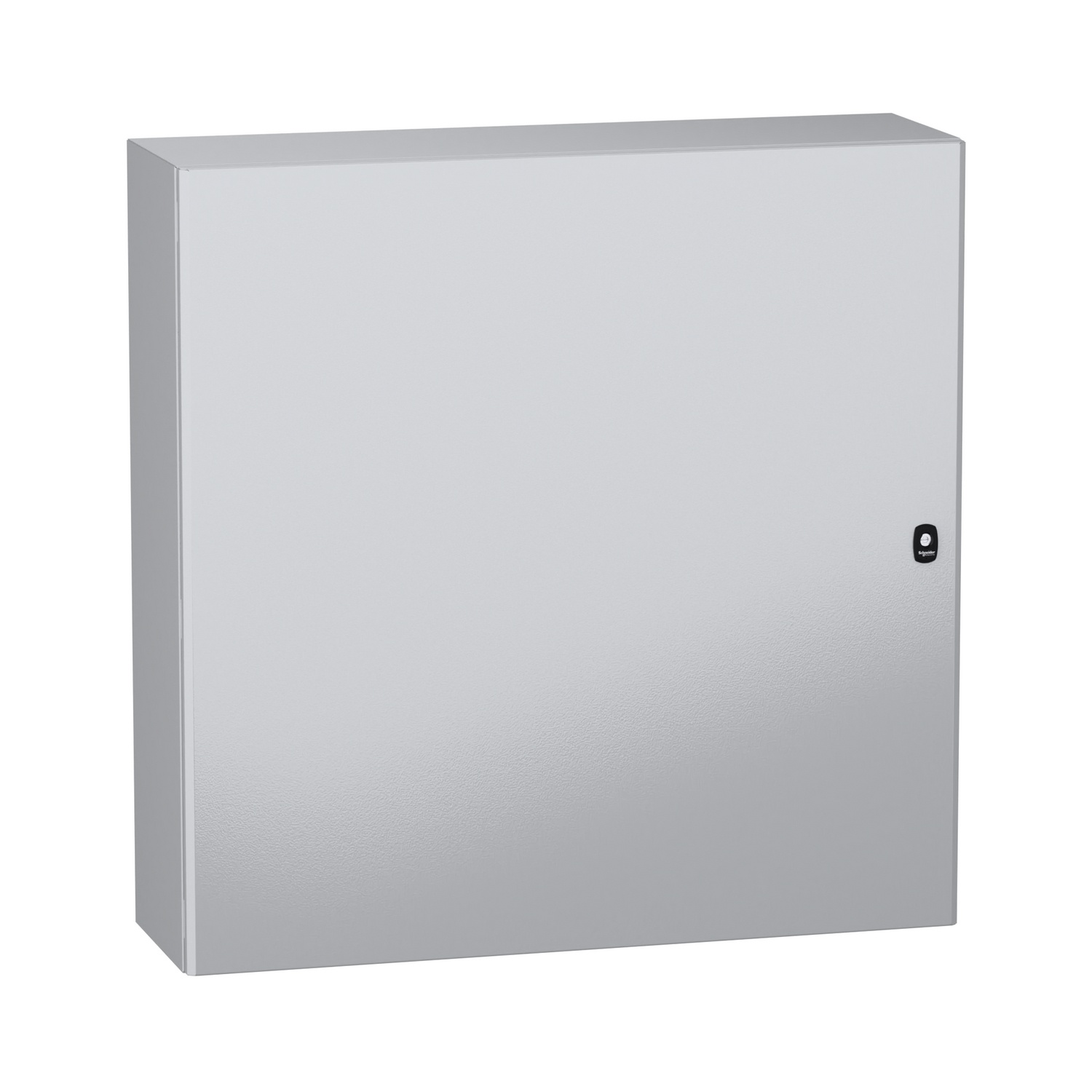

Image provided may only be a representation of final product and may include optional equipment
