Part Number # QHB115
SKU # 2269289
QHB115

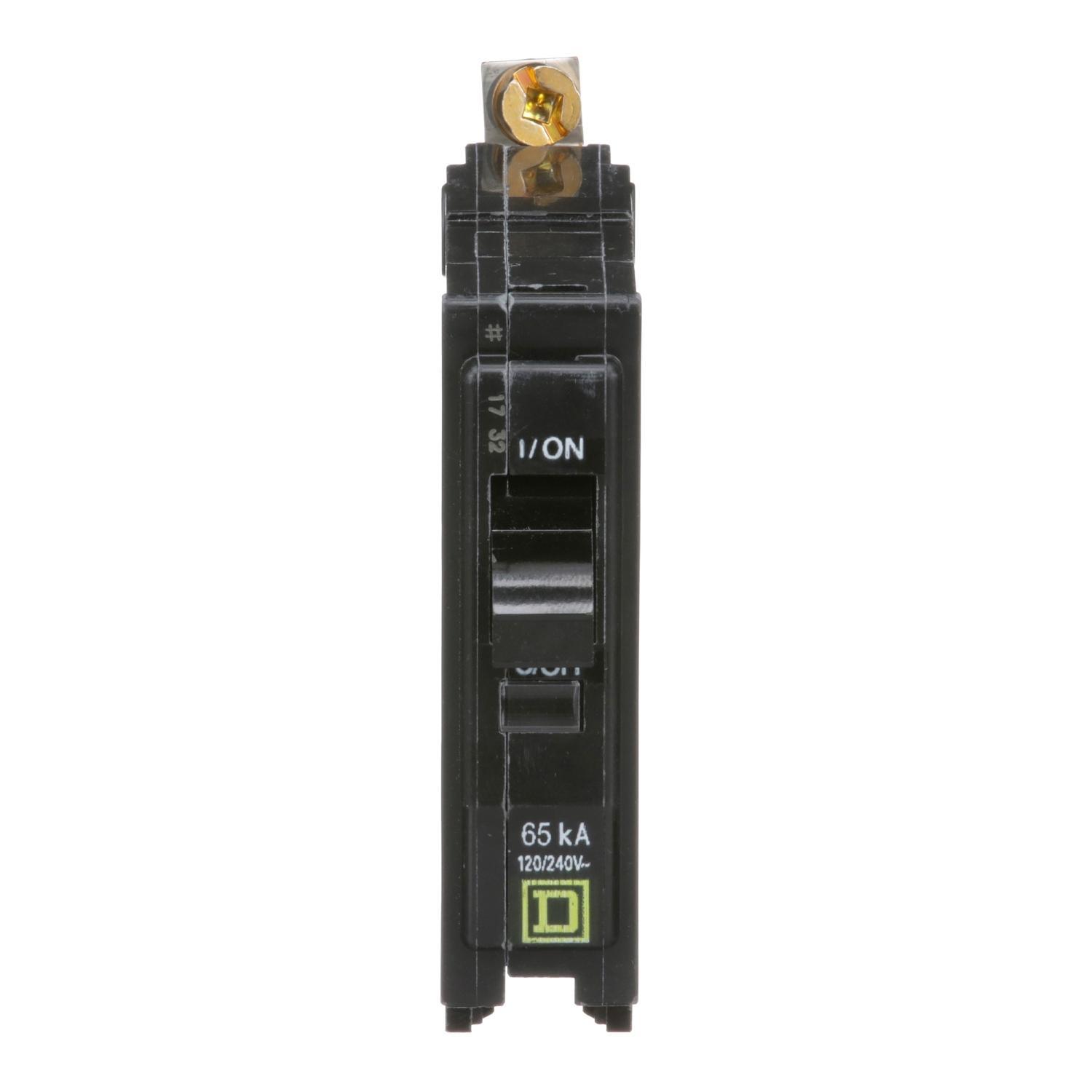

Square D QHB115 Qo Miniature Circuit Breaker
Part Number # QHB115
SKU # 2269289
Square D QHB115 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QHB115 |
| SKU #: | 2269289 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 2.91 in L x 0.75 in W x 3 in H |
| Enclosure Type: | NEMA AB1 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 65 kA at 120/240 VAC |
| Number of Poles: | 1 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type QHB |
| Wire Size: | 14 to 8 AWG Al/Cu |
| Connection type: | Pressure Plate |
| Country of origin: | US |
| Material: | Fiberglass Filled Thermoset |
| Mounting type: | Bolt-On, Bolted-On |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 00785901255376 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D QHB115 Qo Miniature Circuit Breaker
Brand: Square D
Part Number: QHB115
Square D QO Miniature Circuit Breaker, Type QHB, 120/240 VAC, 15 A, 50/60 Hz Frequency, 65 kA at 120/240 VAC Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph, Pressure Plate Connection, 14 to 8 AWG Al/Cu Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 40 deg C, 2.91 in L x 0.75 in W x 3 in H Dimensions, Fiberglass Filled Thermoset
Additional Description: SQD -QHB115 (N) MINIATURE CIRCUIT BREAKER 120/240V 15A NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Mini circuit breaker, QO, 15A, 1 pole, 120/240VAC, 65kA, bolt on
QHB115 Application
Switching Duty Rated, Residential, Light Commercial, Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel, Series Arc Fault and Ground Fault Protection ApplicationsQHB115 Item Features
- Reliable and durable
- Plug-on neutral design and shorter footprint for faster installs
- Simple design and clear instructions for quick setup
- Time-saving diagnostics with touch of a button
QHB115 Standards
RoHS Compliant|CSA 22.2 No. 5|Federal Specification W-C-375B/GEN|HACR Rated|NOM-ANCE Certified|UL 489 File No. E84967|PROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.govSKU #2269289Part Number #QHB115UNSPSC39121603UPC00785901255376
Image provided may only be a representation of final product and may include optional equipment
