Brand: Square D

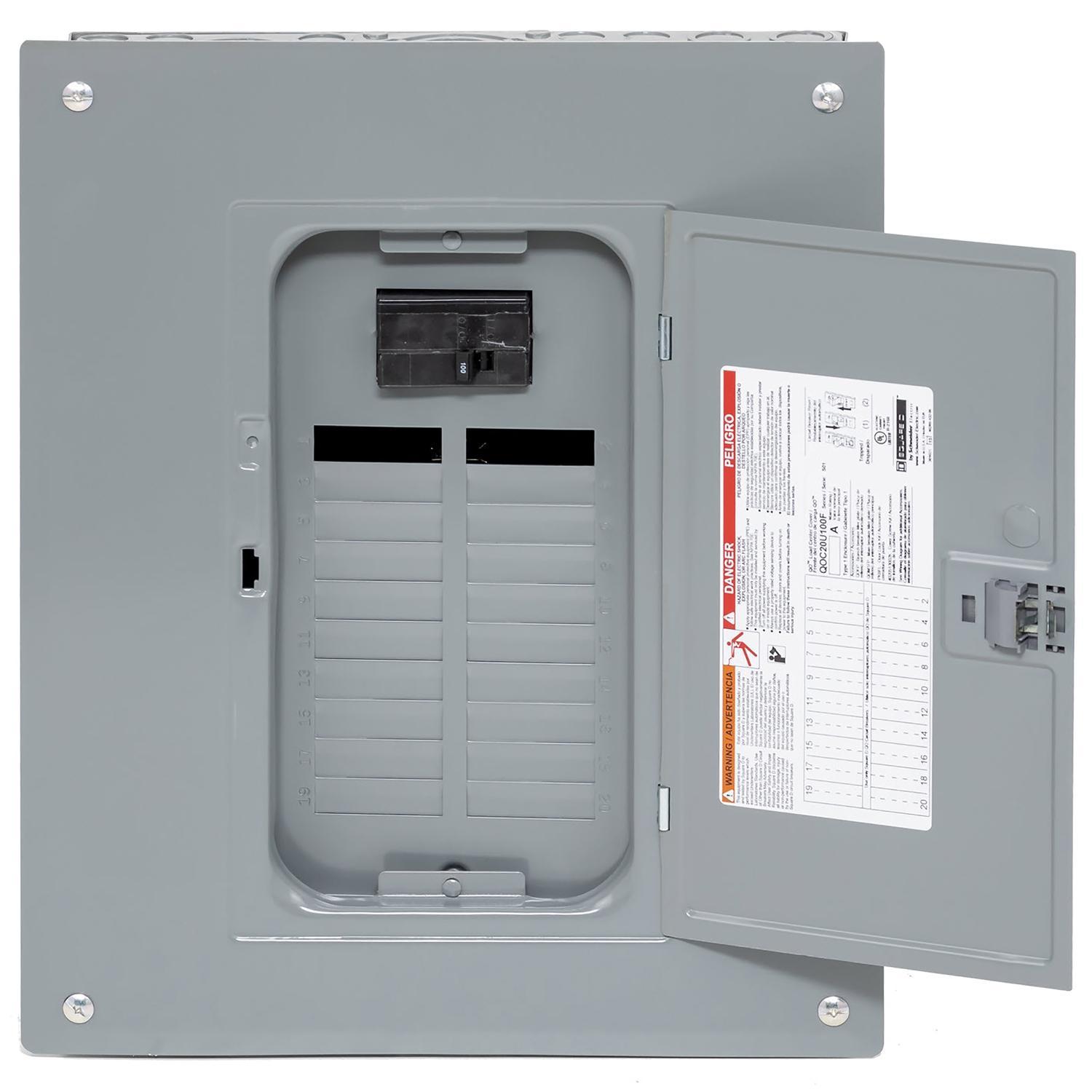

Square D QO120M100PC QO Convertible Main Neutral Load Center
Image Disclaimers Message
Brand: Square D
Square D QO120M100PC QO Convertible Main Neutral Load Center
Brand: Square D
Square D QO120M100PC QO Convertible Main Neutral Load Center
Part #:QO120M100PC
SKU #: 2411963
$158.94/EA
Key Features
Part #:QO120M100PC
SKU #: 2411963
Brand: Square D
Amperage Rating: 100 A
Breaker Mounting: Plug-On
Enclosure Box Size: 14.25 in W x 3.75 in D x 17.92 in H
Enclosure Type: NEMA 1
Interrupt Rating: 22 kA
$158.94/EA
- 3/4 in W circuit breaker
- Separate flush or surface mount covers
- Full complement of accessories
- Backed out neutral screws save labor and installation time
- Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
- Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
- Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
- Standard 22000/10000 A series short circuit current rating on main breaker load centers provides increased application capability
- QO 3 ph main circuit breaker panels can be field upgraded to provide 100000 A short circuit current ratings
- Single, captive interior mounting screw cant be lost
- Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
- Split branch neutral with up to 50% more terminations than UL requirement - simplifies wiring and reduces clutter
- Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable
- Combination slot/square drive neutral, ground and cover screw accommodate both standard flat blade screwdrivers and square head drivers
- Three ground bar mounting locations (left, right and end) make it easier to wire
Specifications
Brand: Square D
Amperage Rating: 100 A
Breaker Mounting: Plug-On
Enclosure Box Size: 14.25 in W x 3.75 in D x 17.92 in H
Enclosure Type: NEMA 1
Interrupt Rating: 22 kA
Number of Circuits: 20
Number of Poles: 1
Number of Spaces: 20
Type: 1-Phase
Voltage Rating: 120/240 VAC
Country of origin: US
Manufacturer Name: Schneider Electric
UNSPSC: 39121101
UPC: 00785901609483
Item FeaturesResidential, Remodels/Upgrades, Commercial, Agricultural and Indoor Applications
Item FeaturesCombination Cover
Item Features
Item FeaturesUL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65PROP65s.ca.gov
Item FeaturesLifetime
