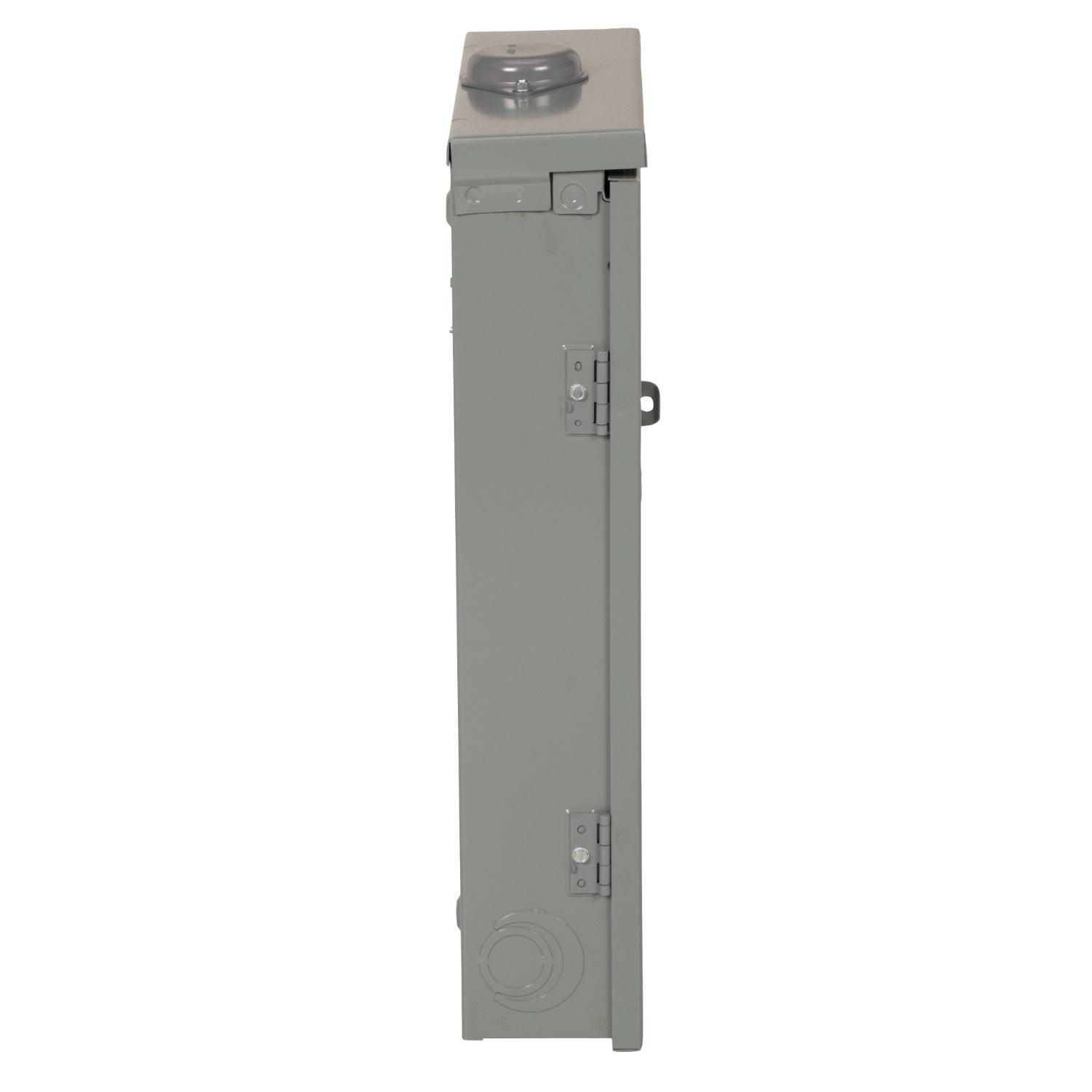

Square D QO124L125PGRB Qo Main Lug Load Center
Image Disclaimers Message
Square D QO124L125PGRB Qo Main Lug Load Center
Square D QO124L125PGRB Qo Main Lug Load Center
Part #:QO124L125PGRB
SKU #: 2351157
Key Features
Part #:QO124L125PGRB
SKU #: 2351157
Brand: Square D
Amperage Rating: 125 A
Breaker Mounting: Panel
Dimensions: 22.06 in H x 14.75 in W x 4.52 in D
Enclosure Box Size: 4R
Enclosure Type: NEMA 3R
- Aluminum bus construction on fixed mains panels
- Tin plated copper busbar
- Service entrance equipment capable panels
- Split branch neutral for clutter-free wiring
- Top or bottom feed by rotating convertible mains panels 180 deg
- Single captive screw interior mounting on indoor panels to ease removal
- Straight-in wiring to help minimize service cable installation
- Side hinge doors on outdoor convertible main panels
- Gray baked enamel surface finish
- Provisions for door lock on convertible mains panel covers
Square D QO124L125PGRB Qo Main Lug Load Center
Square D QO Main Lug Load Center, 1-Phase Convertible Neutral, 240 VAC, 125 A, 1 Pole, 50/60 Hz, 65 kA Interrupt, 24 Circuits, Panel Breaker Mounting, 3-Wire Wiring Configuration, 24 Spaces, 6 to 2/0 AWG Aluminum/Copper Wire, Plug-On Mount, NEMA 3R, 4R Enclosure Box, Galvannealed Steel Housing, 22.06 in H x 14.75 in W x 4.52 in D
Additional Description: SQD -QO124L125PGRB QO PLUG-ON NEUT LC N3R 1 PH ML 240V 125A 125A 24 SPACES
Catalog Description: Load center, QO, 1 phase, 24 spaces, 34 circuits, 125A convertible main lugs, PoN, NEMA3R, gnd bar, UL
