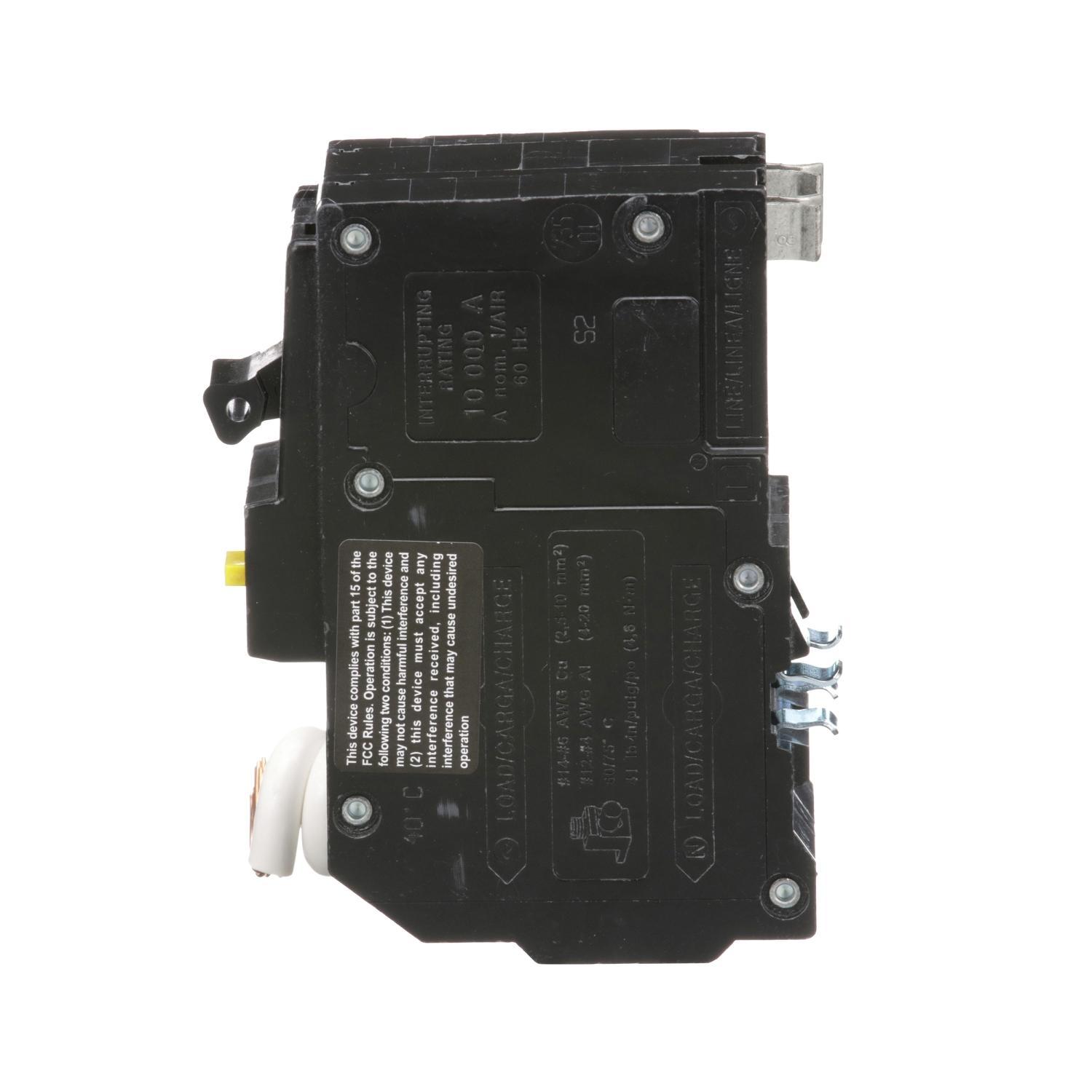

Square D QO240GFI Qwik-Gard Circuit Breaker
Image Disclaimers Message
Square D QO240GFI Qwik-Gard Circuit Breaker
Square D QO240GFI Qwik-Gard Circuit Breaker
Part #:QO240GFI
SKU #: 2218157
Key Features
Part #:QO240GFI
SKU #: 2218157
Brand: Square D
Amperage Rating: 40, 40 A
Dimensions: 2.91 in L x 1.5 in W x 4.12 in H, 4.12 in H x 1.5 in W x 2.91 in D
Frame: QO
Frequency Rating: 50/60, 50/60 Hz, 60, 60 Hz
Interrupt Rating: 10, 10 kA
- Qwik-Gard GFCIs provide the same branch circuit protection as standard QO circuit breakers
- They are longer than standard QO circuit breakers and thus require more gutter space
- Class A devices must trip at 6 mA of ground fault current and above and hold below 4 mA of ground fault current
- For use with QO load centers, NQOD panel boards/interiors and Speed-D switchboard distribution panels
- 14 to 6 AWG Cu, 12 to 4 AWG Al wire
- Common trip
- Ground fault protecting class A 6 mA
- https://youtu.be/VQnBmbd9XF0
Square D QO240GFI Qwik-Gard Circuit Breaker
Square D Qwik-Gard Circuit Breaker, 120/240 VAC, 40 A, 60 Hz Frequency, 10 kA Interrupt, QO Frame, Thermal/Magnetic Trip, 2 Pole, 1 ph, Box Lug Connection, 14 to 6 AWG, 12 to 4 AWG Wire, Plug-On Mounting, 40 deg C, 4.12 in H x 1.5 in W x 2.91 in D Dimensions
Additional Description: SQD -QO240GFI MINIATURE CIRCUIT BREAKER 120/240V 40A
Catalog Description: [TAA] Mini circuit breaker, QO, 40A, 2 pole, 120/240VAC, 10kA, plug in, 6mA grd fault A, pigtail
