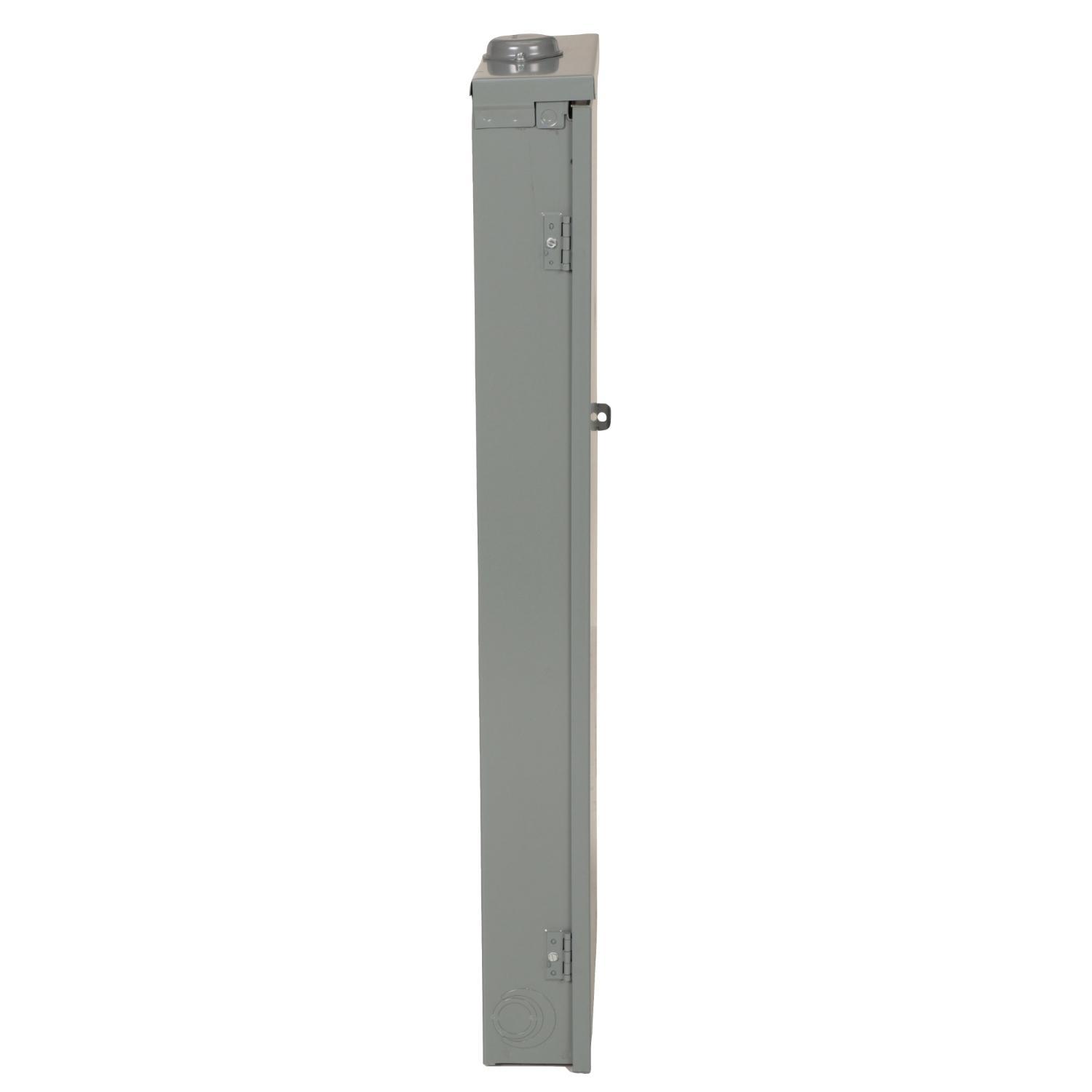

Square D QO330MQ125RB Qo Main Breaker Load Center
Part Number # QO330MQ125RB
SKU # 2354504
$1935.32 / Each
Square D QO330MQ125RB Key Features
Brand: Square D
Part Number # QO330MQ125RB
SKU #2354504
Amperage Rating: 125 A
Breaker Mounting: Panel
Dimensions: 14.75 in W x 4.52 in D x 39.37 in H, 39.37 in H x 14.75 in W x 4.52 in D
Enclosure Box Size: NEMA 14R
Enclosure Type: NEMA 3R
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 25, 25 kA
Number of Circuits: 30
Number of Poles: 1
Number of Spaces: 30
Type: 3-Phase Convertible
Voltage Rating: 208Y to 120 VAC/120 to 240 Delta VAC/240 Delta VAC, 208Y/120 VAC, 120/240 Delta VAC, 240 Delta VAC
Wire Size: 4 AWG to 300 kcmil
Wiring Configuration: 3/4-Wire
Country of origin: US
Housing material: Galvannealed Steel
Manufacturer Name: Schneider Electric
UNSPSC: 39121101
UPC: 00785901290599
$1935.32 / Each
- Square D QO Main Breaker Load Center, 3-Phase Convertible, 208Y/120 VAC, 120/240 Delta VAC, 240 Delta VAC, 125 A, 1 Pole, 50/60 Hz Frequency, 25 kA Interrupt, 30 Circuits, Panel Breaker Mounting, 3/4-Wire Wiring Configuration, 30 Spaces, 4 AWG to 300 kcmil Wire, NEMA 3R Enclosure, NEMA 14R Enclosure Box, Galvannealed Steel Housing Material, 14.75 in W x 4.52 in D x 39.37 in H Dimensions
QO330MQ125RB Application
For outdoor, residential, commercial, industrial requirements to protect electrical systems, equipment and people applicationsQO330MQ125RB Includes
Surface CoverQO330MQ125RB Item Features
- Aluminum bus construction on fixed mains panels
- Shielded one piece tin plated aluminum bus construction on convertible mains panels, an industry exclusive for protection and performance
- Service entrance equipment capable panels
- Split branch neutral for clutter-free wiring
- Top or bottom feed by rotating convertible mains panels 180 deg
- Single captive screw interior mounting on indoor panels to ease removal
- Straight in wiring to help minimize service cable installation
- Side hinge doors on outdoor convertible main panels
- Gray baked enamel surface finish
- Provisions for door lock on convertible mains panel covers
- 4 AWG to 300 kcmil aluminum/copper wire
QO330MQ125RB Standards
RoHS Compliant|UL Listed|NOM Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govQO330MQ125RB Warranty
18 monthsSKU #2354504Part Number #QO330MQ125RBUNSPSC39121101UPC00785901290599
