Brand: Square D

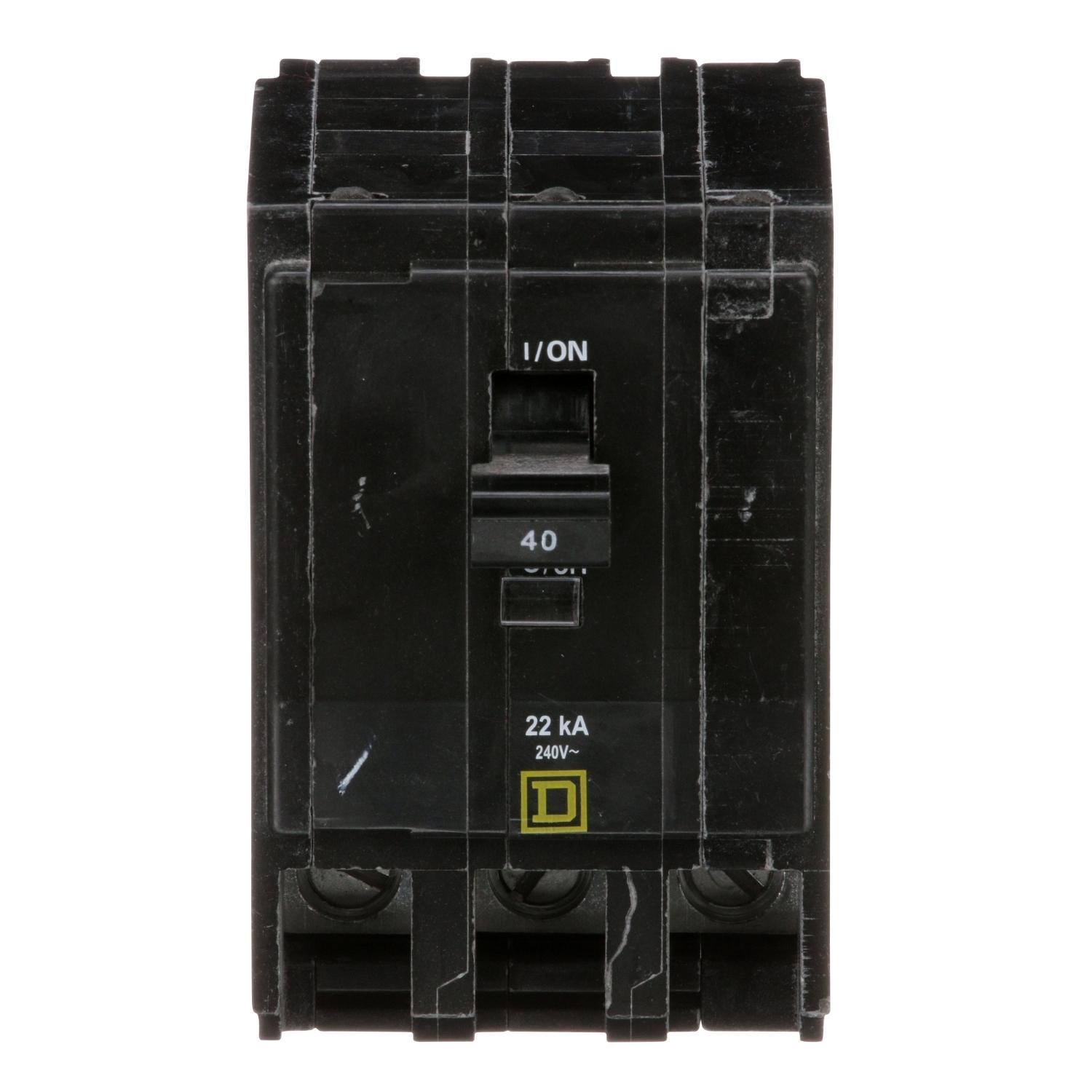

Square D QO340VH Qo Miniature Circuit Breaker
Image Disclaimers Message
Brand: Square D
Square D QO340VH Qo Miniature Circuit Breaker
Brand: Square D
Square D QO340VH Qo Miniature Circuit Breaker
Part #:QO340VH
SKU #: 2393256
$154.70/EA
Key Features
Part #:QO340VH
SKU #: 2393256
Brand: Square D
Amperage Rating: 40 A
Dimensions: 2.91 in L x 2.25 in W x 3.12 in H
Frequency Rating: 50/60 Hz
Interrupt Rating: 22 kA
Number of Poles: 3
$154.70/EA
- Designed for superior safety, quality and reliability
- Engineered with the quality and craftsmanship that have made Square D the preferred brand of electrician and homeowners
- First and only offer in the market to put the game changing Visi-Trip on all the circuit breakers for easy trip detection
- Saves space compact 3/4 in W design for small system footprint
- Faster installation fewer connection
- Frees gutter space - no pigtails with the innovative plug-on neutral design
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
Specifications
Brand: Square D
Amperage Rating: 40 A
Dimensions: 2.91 in L x 2.25 in W x 3.12 in H
Frequency Rating: 50/60 Hz
Interrupt Rating: 22 kA
Number of Poles: 3
Phase: 3 ph
Temperature Rating (Degrees F): 40 deg C
Trip Type: Thermal/Magnetic
Type: Type QO-VH Standard
Voltage Rating: 240 VAC
Wire Size: 8 to 2 AWG
Connection type: Box Lug
Country of origin: IE
Material: Fiberglass Filled Thermoset
Mounting type: Plug-In
Manufacturer Name: Schneider Electric
UNSPSC: 39121603
UPC: 00785901060208
Square D QO340VH Qo Miniature Circuit Breaker
Square D QO Miniature Circuit Breaker, Type QO-VH Standard, 240 VAC, 40 A, 50/60 Hz Frequency, 22 kA Interrupt, Thermal/Magnetic Trip, 3 Pole, 3 ph, Box Lug Connection, 8 to 2 AWG Wire, Plug-In Mounting, 40 deg C, 2.91 in L x 2.25 in W x 3.12 in H Dimensions, Fiberglass Filled Thermoset
Additional Description: SQD -QO340VH MINIATURE CIRCUIT BREAKER 240V 40A
Catalog Description: Mini circuit breaker, QO, 40A, 3 pole, 120/240VAC, 22kA, plug in
Item FeaturesResidential, Light Commercial, Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel, Series Arc Fault and Ground Fault Protection Applications
Item Features
Item FeaturesCSA C22.2 No. 5|CSA Certified|Federal Specification W-C-375B/GEN|HACR Rated|NEMA AB1|NOM/ANCE Certified|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov|RoHS Compliant|UL 489 File No. E84967|UL Listed
