$2102.99/EA
- Tin plated aluminum bus construction on main lug or main circuit breaker panels
- Service entrance equipment capable panels
- Straight-in wiring to help minimize service cable installation
- Single captive screw interior mounting on indoor panels to ease removal
- New side hinge doors on outdoor convertible main panels
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating enclosure
- Does not accepts plug-on neutral circuit breaker
- Lug electrical connection
- 208Y/120 VAC, 120/240 VAC delta, 240 VAC delta
- Aluminum/copper wire
Specifications
Brand: Square D
Amperage Rating: 225 A
Breaker Mounting: Bolt-On
Breaker Type: MB/QO
Dimensions: 14.76 in W x 39.37 in H
Enclosure Type: NEMA 3R
Frequency Rating: 50/60 Hz
Interrupt Rating: 25 kA
Number of Circuits: 42
Number of Poles: 1
Number of Spaces: 42
Type: 3-Phase Convertible
Voltage Rating: 208Y to 120 VAC/240 to 120 VAC Delta/240 VAC Delta, 208Y/120 VAC, 240/120 VAC Delta, 240 VAC Delta
Wire Size: 4 AWG to 300 kcmil
Wiring Configuration: 4-Wire
Country of origin: US
Housing material: Galvannealed Steel
Mounting type: Plug-On
Manufacturer Name: Schneider Electric
UNSPSC: 39121101
UPC: 00785901290643

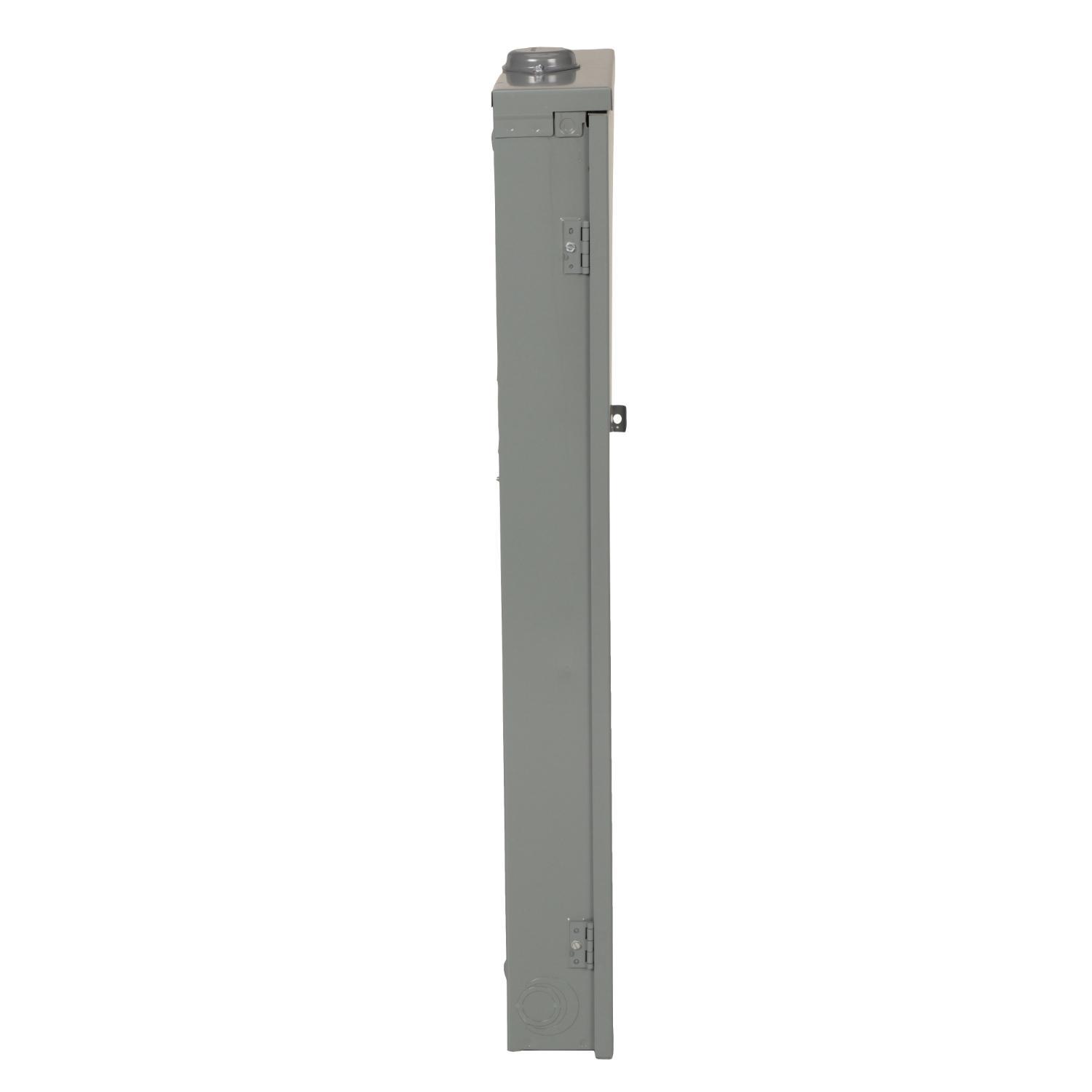

Square D QO342MQ225RB Qo Main Breaker Load Center
Square D QO Main Breaker Load Center, 3-Phase Convertible, 208Y/120 VAC, 240/120 VAC Delta, 240 VAC Delta, 225 A, 1 Pole, 50/60 Hz Frequency, 25 kA Interrupt, 42 Circuits, MB/QO Breaker, Bolt-On Breaker Mounting, 4-Wire Wiring Configuration, 42 Spaces, 4 AWG to 300 kcmil Wire, Plug-On Mounting, NEMA 3R Enclosure, Galvannealed Steel Housing Material, 14.76 in W x 39.37 in H Dimensions
Additional Description: SQD -QO342MQ225RB LOAD CENTER QO RB MB 225A 3PH 42 CIRCUIT
Catalog Description: Load center, QO, 3 phase, 42 spaces, 42 circuits, 225A convertible main breaker, NEMA3R, QDL, UL
Item FeaturesFor residential, commercial and industrial requirements to protect electrical systems, equipment and people applications
Item FeaturesRainproof Cover
Item Features
Item FeaturesRoHS Compliant|UL Listed|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Item Features18 months
