QOB150

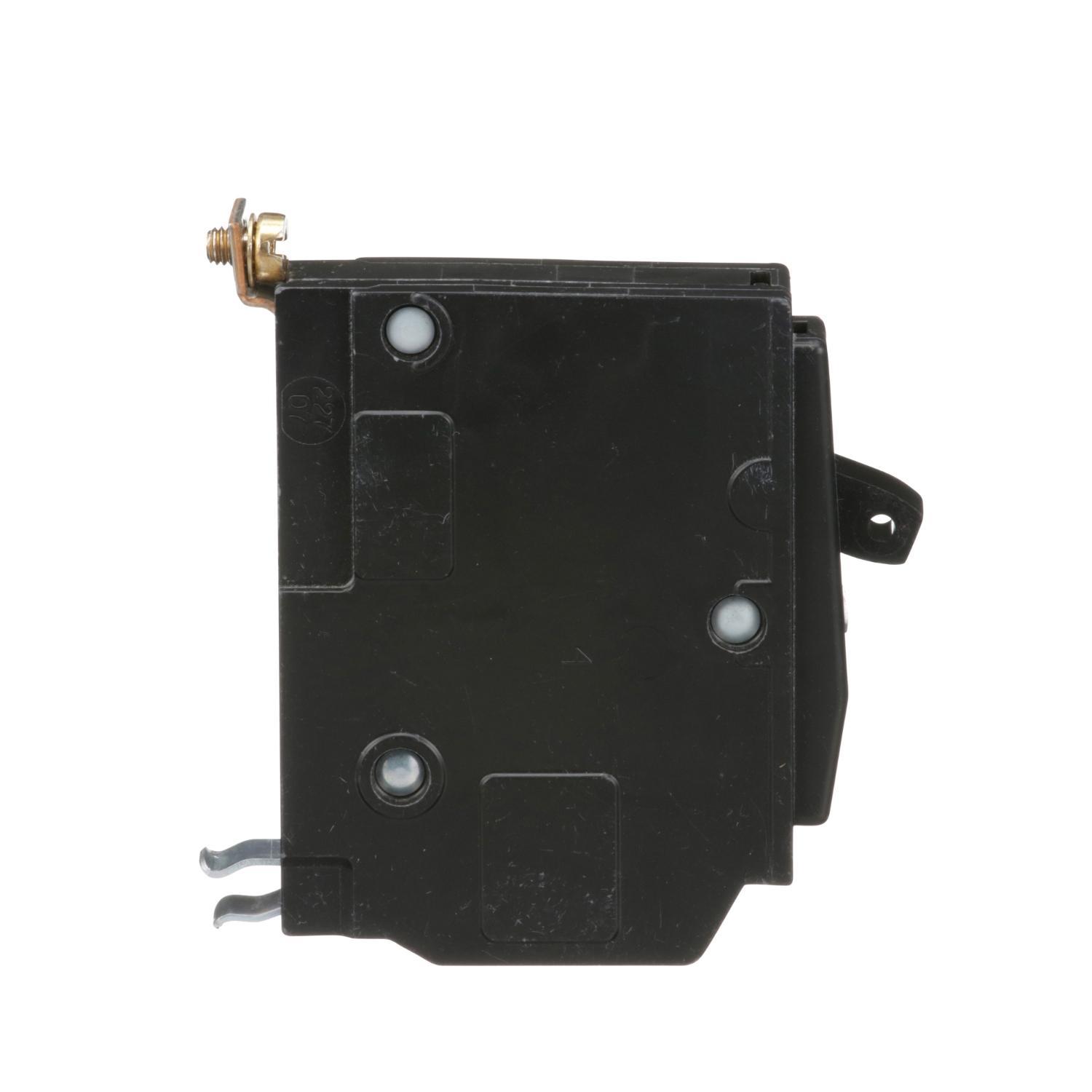

Square D QOB150 Qo Miniature Circuit Breaker
Part Number # QOB150
SKU # 2289569
$32.65 / Each
Typical price:$39.80 / Each
Square D QOB150 Key Features
Brand: Square D
Part Number # QOB150
SKU #2289569
Amperage Rating: 50, 50 A
Dimensions: 2.91 in L x 0.75 in W x 3 in H, 2.91 in L x 0.75 in W x 3.12 in H
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 10, 10 kA
Number of Poles: 1
Phase: 1, 1 ph
Temperature Rating (Degrees F): 104, 40 deg C
Trip Type: Thermal Magnetic, Thermal/Magnetic
Type: Standard
Voltage Rating: 120/240, 120/240 VAC
Wire Size: 8 to 2, 8 to 2 AWG
Connection type: Box Lug
Country of origin: MX, US
Mounting type: Bolt-On
Manufacturer Name: Schneider Electric
UNSPSC: 39121603
UPC: 00785901416807
$32.65 / Each
Typical price:$39.80 / Each
- Square D QO Miniature Circuit Breaker, Standard, 120/240 VAC, 50 A, 50/60 Hz, 10 kA Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph, Box Lug, 8 to 2 AWG Wire, Bolt-On Mount, 40 deg C, 2.91 in L x 0.75 in W x 3.12 in H
QOB150 Application
For providing overload and short circuit protectionQOB150 Item Features
- QO and QOB circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication
- The tripping mechanisms in two and three-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously
- Bolt-on QOB circuit breakers are for use in NQO and NQOD panel boards
- QO and QOB circuit breakers have Visi-Trip feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit
- 10 kA at 120/240 VAC, 5 kA at 48 VDC interrupt rating
- 8 to 2 AWG aluminum/copper wire
QOB150 Standards
CSA C22.2 File No. 5|CSA Certified|HACR Rated|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov|RoHS Compliant|UL 489|UL ListedSKU #2289569Part Number #QOB150UNSPSC39121603UPC00785901416807
