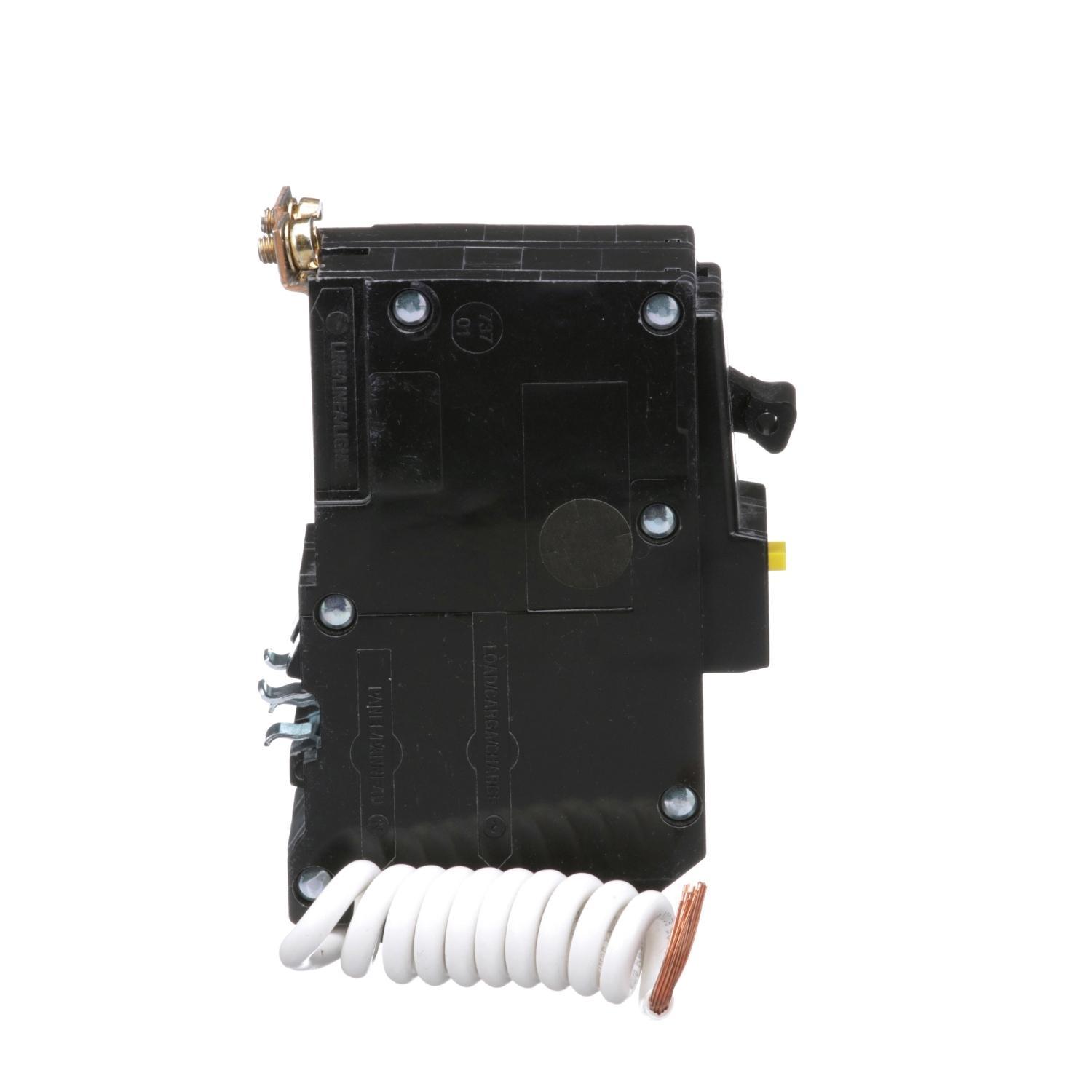

Square D QOB220GFI Qwik-Gard Circuit Breaker
Square D QOB220GFI Qwik-Gard Circuit Breaker
Part #:QOB220GFI
SKU #: 2229156
Key Features
Part #:QOB220GFI
SKU #: 2229156
Brand: Square D
Amperage Rating: 20, 20 A
Dimensions: 2.91 in L x 1.5 in W x 4.12 in H, 4.12 in H x 1.5 in W x 2.91 in D
Frame: QOB
Frequency Rating: 50/60, 60, 60 Hz
Interrupt Rating: 10, 10 kA
- Qwik-Gard GFCIs provide the same branch circuit protection as standard QO circuit breakers
- They are longer than standard QO circuit breakers and thus require more gutter space
- Class A devices must trip at 6 mA of ground fault current and above and hold below 4 mA of ground fault current
- For use with NQOD panelboards/interiors
- 14 to 10 AWG Cu, 14 to 8 AWG Al/Cu wire
- Common trip
- Ground fault protecting class A 6 mA
- https://www.youtube.com/watch?v=3SxmA3ubihc
Square D QOB220GFI Qwik-Gard Circuit Breaker
Square D Qwik-Gard Circuit Breaker, 120/240 VAC, 20 A, 60 Hz Frequency, 10 kA Interrupt, QOB Frame, Thermal/Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 14 to 10 AWG, 14 to 8 AWG Wire, Bolted-On Mounting, 40 deg C, 4.12 in H x 1.5 in W x 2.91 in D Dimensions
Additional Description: SQD -QOB220GFI MINIATURE CIRCUIT BREAKER 120/240V 20A
Catalog Description: [TAA] Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, bolt on, 6mA grd fault A, pigtail
