Brand: Square D

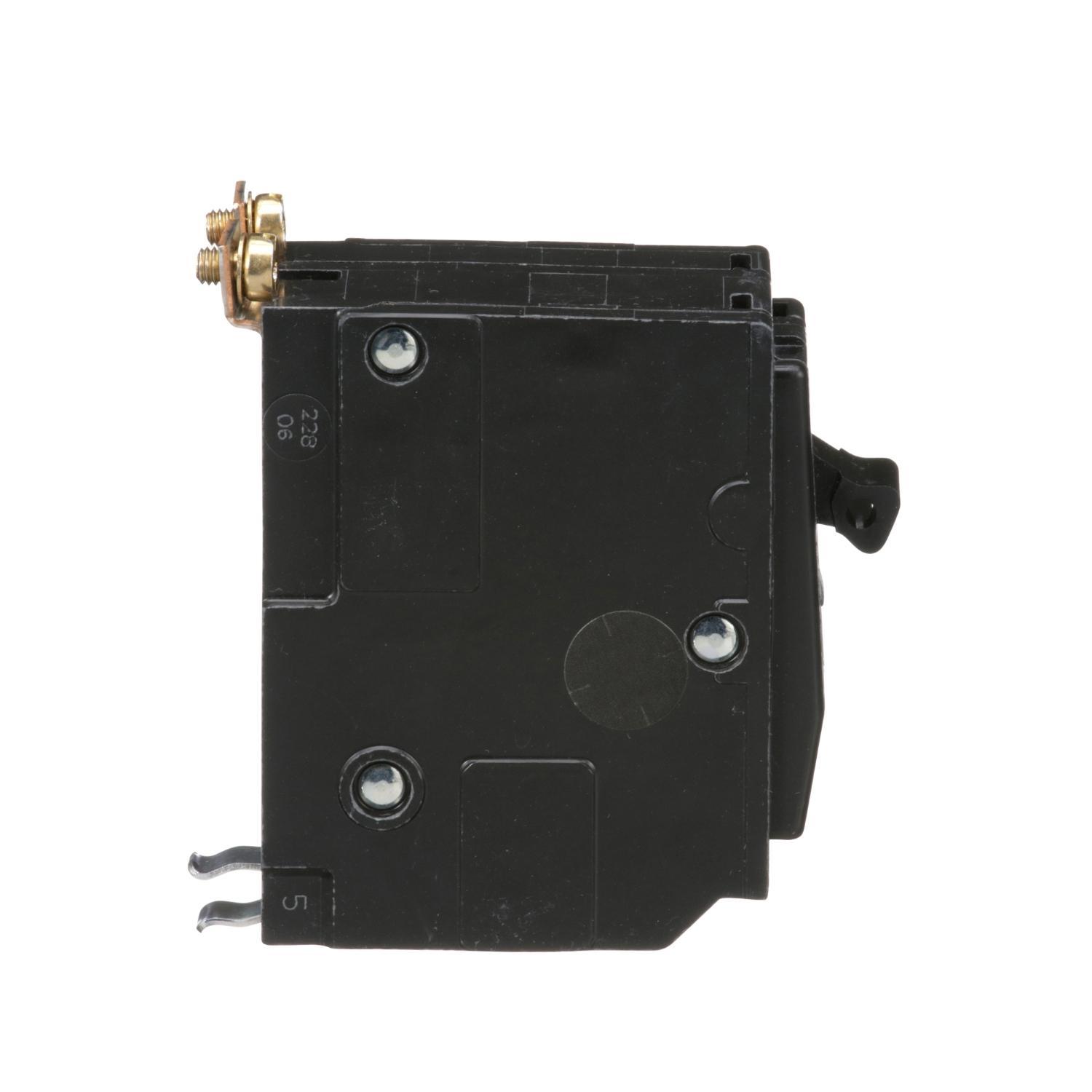

Square D QOB225 Miniature Circuit Breaker
Image Disclaimers Message
Brand: Square D
Square D QOB225 Miniature Circuit Breaker
Brand: Square D
Square D QOB225 Miniature Circuit Breaker
Part #:QOB225
SKU #: 2197949
$75.08/EA
Key Features
Part #:QOB225
SKU #: 2197949
Brand: Square D
Amperage Rating: 25, 25 A
Dimensions: 2.91 in L x 1.5 in W x 3 in H, 3 in H x 1.5 in W x 2.91 in D
Frame: QOB
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 10, 10 kA
$75.08/EA
- Tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously
- Bolt-on QOB circuit breakers are for use in NQO and NQOD panel boards
- QO and QOB circuit breakers have Visi-Trip feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit
- Common trip
- 10 kA at 120/240 VAC, 5 kA at 48 VDC interrupt rating
- 14 to 8 AWG Al/Cu wire
- 14 - 10 AWG copper, 14 - 8 AWG copper/aluminum
- Standard
- https://www.youtube.com/watch?v=8d24HtN6GZw
Specifications
Brand: Square D
Amperage Rating: 25, 25 A
Dimensions: 2.91 in L x 1.5 in W x 3 in H, 3 in H x 1.5 in W x 2.91 in D
Frame: QOB
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 10, 10 kA
Number of Poles: 2
Phase: 1, 1 ph
Temperature Rating (Degrees F): 104, 104 deg F, 40, 40 deg C
Trip Type: Thermal Magnetic, Thermal/Magnetic
Type: Standard
Voltage Rating: 120/240, 120/240 VAC, 240 VAC, 48 VDC
Wire Size: 14 to 10 AWG, 14 to 8 AWG, 14 to 8, 14 to 8 AWG
Connection type: Pressure Plate
Country of origin: MX
Mounting type: Bolt-On, Bolted-On
Manufacturer Name: Schneider Electric
UNSPSC: 39121603
UPC: 00785901368281
Square D QOB225 Miniature Circuit Breaker
Square D Miniature Circuit Breaker, 240 VAC, 48 VDC, 25 A, 50/60 Hz Frequency, 10 kA Interrupt, QOB Frame, Thermal/Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 14 to 10 AWG, 14 to 8 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in H x 1.5 in W x 2.91 in D Dimensions
Additional Description: SQD -QOB225 MINIATURE CIRCUIT BREAKER 120/240V 25A
Catalog Description: Mini circuit breaker, QO, 25A, 2 pole, 120/240VAC, 10kA, bolt on
Item FeaturesFor providing overload and short circuit protection
Item Features
Item FeaturesRoHS Compliant|UL 489|CSA C22.2 #5|HACR Rated|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
