Part Number # QOB2255237
SKU # 2393611
Image Disclaimers Message
Brand: Square D
QOB2255237

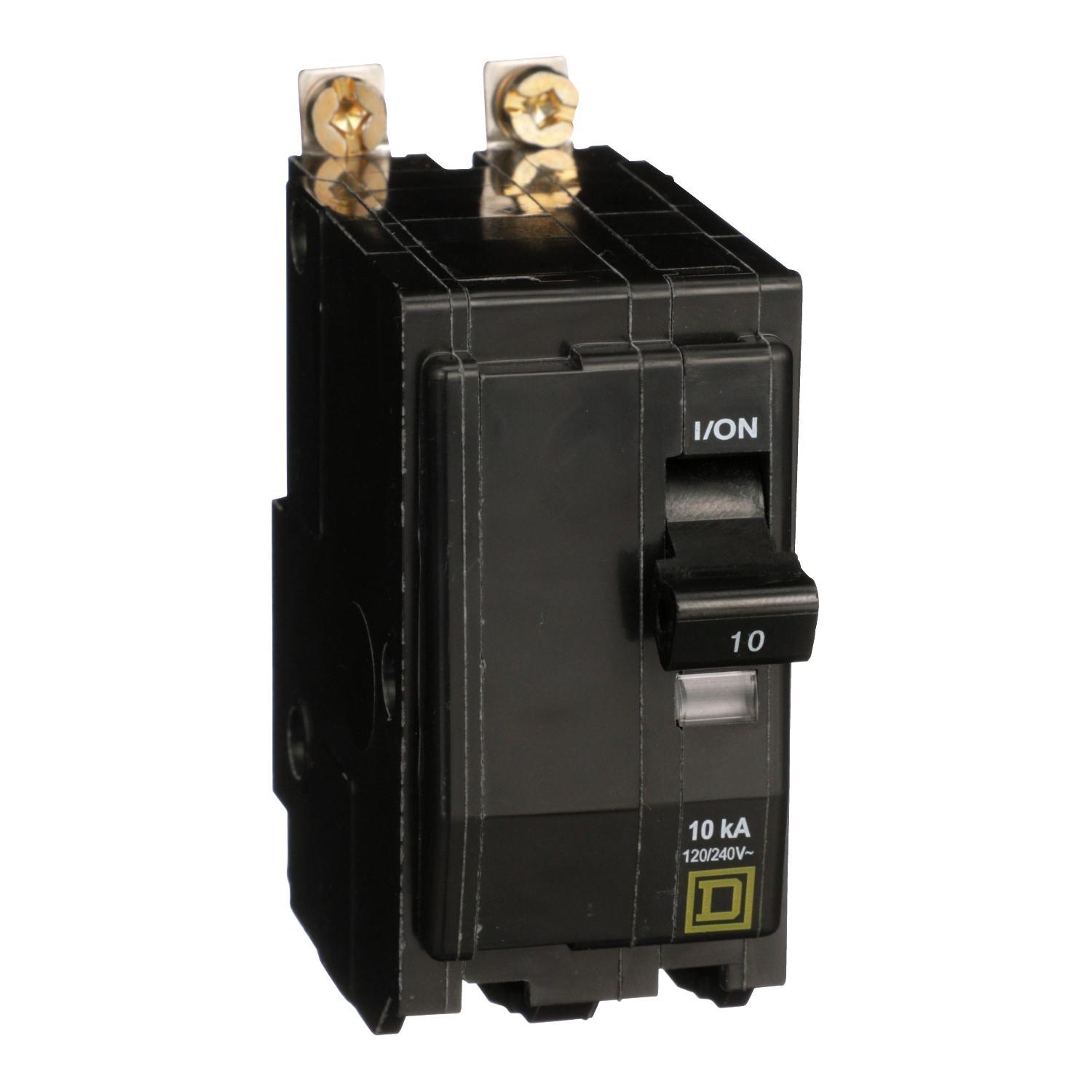

Square D QOB2255237 Miniature Circuit Breaker
Part Number # QOB2255237
SKU # 2393611
$87.77 / Each
Typical price:$107.00 / Each
Square D QOB2255237 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QOB2255237 |
| SKU #: | 2393611 |
| Amperage Rating: | 25, 25 A |
| Dimensions: | 3 in H x 1.5 in W x 2.91 in D |
| Enclosure Type: | NEMA AB1 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10 kA at 120/240 VAC, 5 kA at 48 VDC |
| Number of Poles: | 2 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 104, 104 deg F |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type QOB |
| Wire Size: | 14 to 8 AWG Cu |
| Connection type: | Ring Tongue |
| Country of origin: | MX |
| Material: | Fiberglass Filled Thermoset |
| Mounting type: | Bolted-On |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 00785901165392 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$87.77 / Each
Typical price:$107.00 / Each
Quantity:
- Square D Miniature Circuit Breaker, Type QOB, 120/240 VAC, 48 VDC, 25 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Ring Tongue Connection, 14 to 8 AWG Cu Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 104 deg F, 3 in H x 1.5 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
QOB2255237 Application
Residential and Light Commercial, Commercial and Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault Protection and Ground Fault ProtectionsQOB2255237 Item Features
- Reliable and durable
- Plug-on neutral design and shorter footprint for faster installs
- Simple design and clear instructions for quick setup
- Time-saving diagnostics with touch of a button
QOB2255237 Standards
RoHS Compliant|CSA 22.2 No. 5|Federal Specification W-C-375B/GEN|HACR Rated|NOM/ANCE Certified|UL 489 File No. E84967|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2393611Part Number #QOB2255237UNSPSC39121603UPC00785901165392
