Brand: Square D

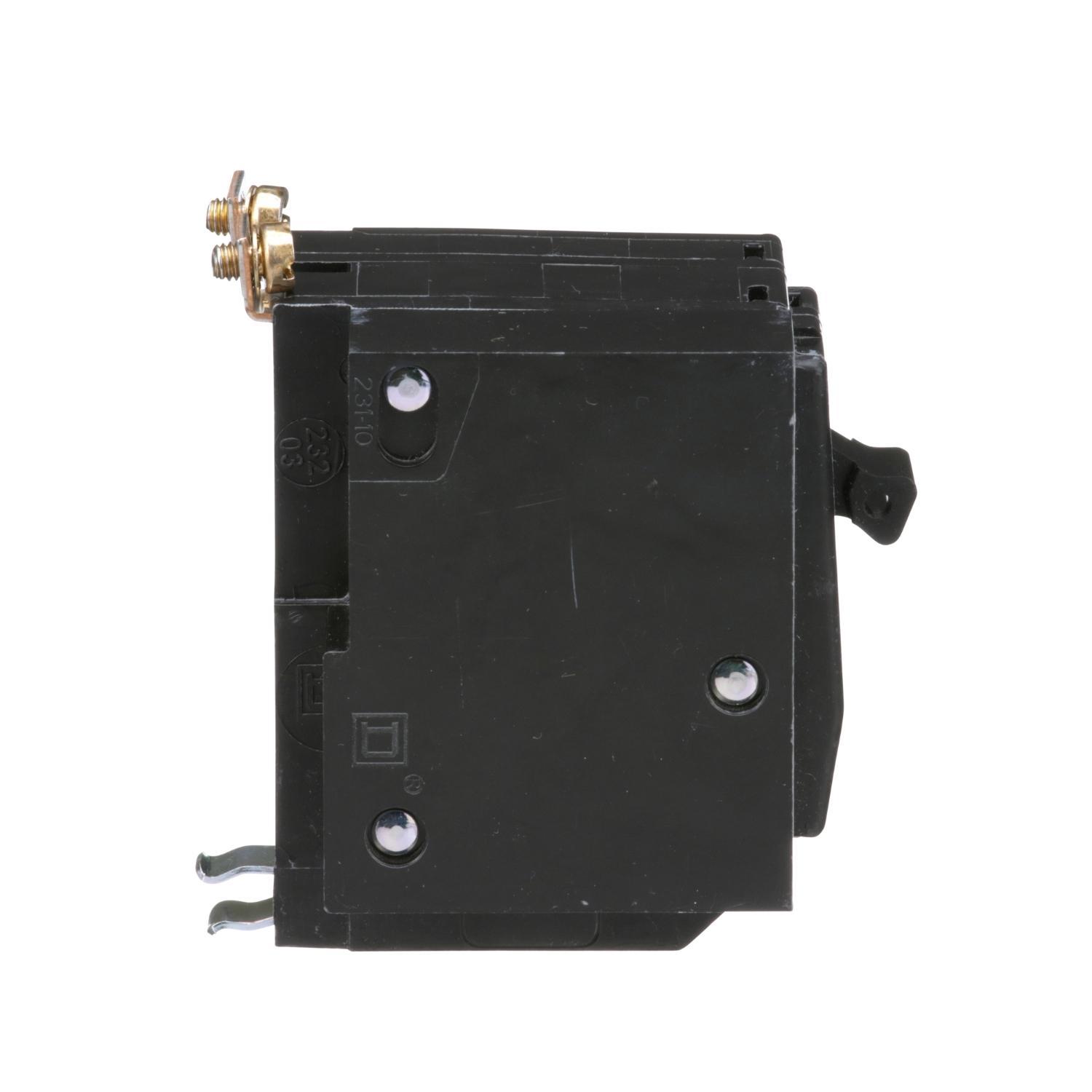

Square D QOB2301021 Qo Miniature Circuit Breaker
Image Disclaimers Message
Brand: Square D
Square D QOB2301021 Qo Miniature Circuit Breaker
Brand: Square D
Square D QOB2301021 Qo Miniature Circuit Breaker
Part #:QOB2301021
SKU #: 2393308
$228.04/EA
Key Features
Part #:QOB2301021
SKU #: 2393308
Brand: Square D
Amperage Rating: 30 A
Dimensions: 2.91 in L x 2.25 in W x 3 in H
Frequency Rating: 50/60 Hz
Interrupt Rating: 10 kA
Number of Poles: 2
$228.04/EA
- QO and QOB circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication
- The tripping mechanisms in two and three-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously
- Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboard
- QO and QOB circuit breakers have Visi-Trip feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit
- Common trip
- 120/208/240 VAC shunt trip
Specifications
Brand: Square D
Amperage Rating: 30 A
Dimensions: 2.91 in L x 2.25 in W x 3 in H
Frequency Rating: 50/60 Hz
Interrupt Rating: 10 kA
Number of Poles: 2
Phase: 1 ph
Temperature Rating (Degrees F): 40 deg C
Trip Type: Thermal/Magnetic
Type: Standard
Voltage Rating: 120/240 VAC
Wire Size: 14 to 8 AWG
Connection type: Pressure Plate
Country of origin: MX
Mounting type: Bolt-On
Manufacturer Name: Schneider Electric
UNSPSC: 39121603
UPC: 00785901494300
Square D QOB2301021 Qo Miniature Circuit Breaker
Square D QO Miniature Circuit Breaker, Standard, 120/240 VAC, 30 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal/Magnetic Trip, 2 Pole, 1 ph, Pressure Plate Connection, 14 to 8 AWG Wire, Bolt-On Mounting, 40 deg C, 2.91 in L x 2.25 in W x 3 in H Dimensions
Additional Description: SQD -QOB2301021 MINIATURE CIRCUIT BREAKER 120/240V 30A
Catalog Description: Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 10kA, bolt on, AC shunt
Item FeaturesFor providing overload and short circuit protection
Item Features
Item FeaturesCSA C22.2 File No. 5|CSA Certified|Federal/SPecification W-C-375B/GEN|HACR Rated|NEMA AB1|NOM/ANCE Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov|RoHS Compliant|UL File No. 489 File No. E84967|UL Listed
