Brand: Square D

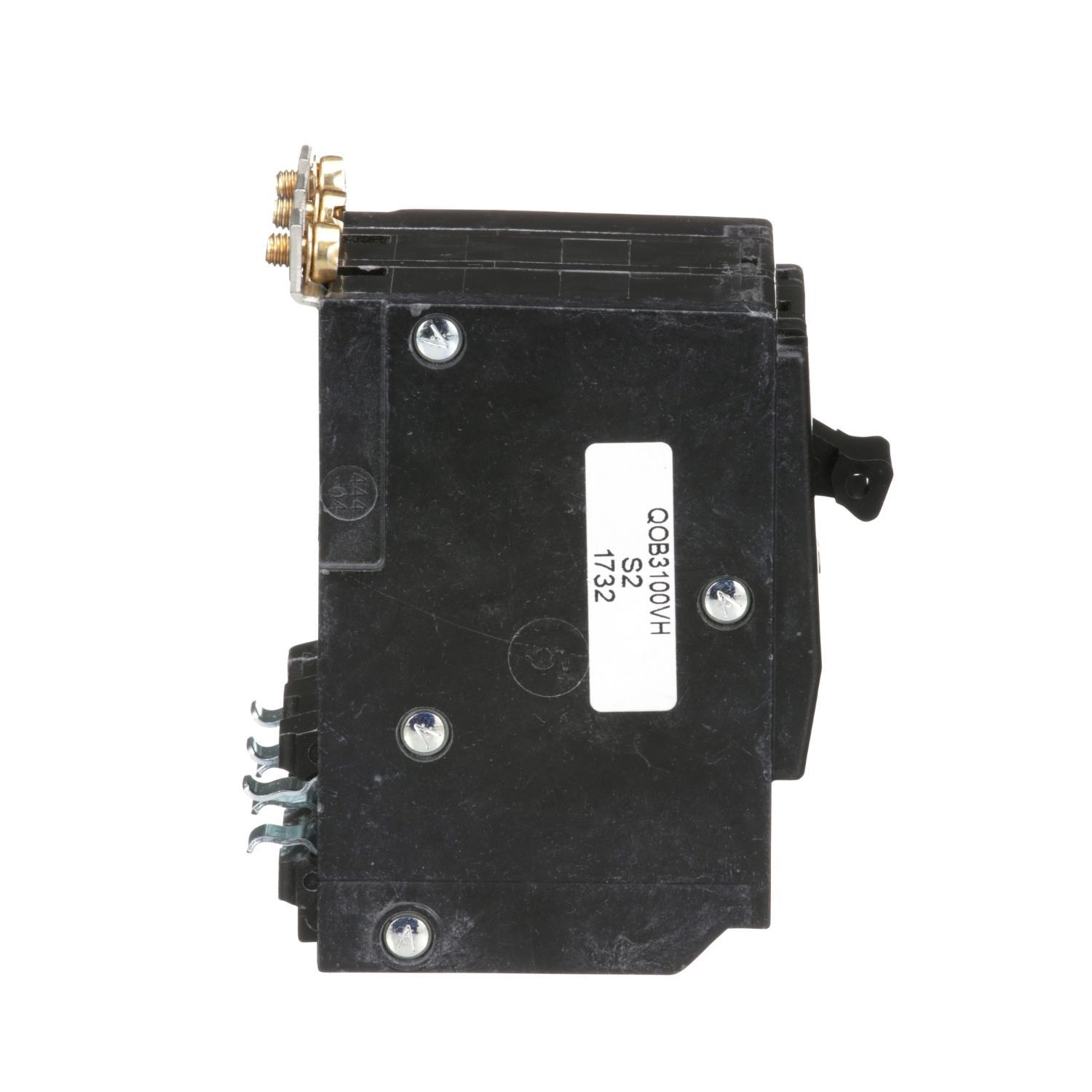

Square D QOB3100VH Qo Miniature Circuit Breaker
Image Disclaimers Message
Brand: Square D
Square D QOB3100VH Qo Miniature Circuit Breaker
Brand: Square D
Square D QOB3100VH Qo Miniature Circuit Breaker
Part #:QOB3100VH
SKU #: 2219752
$557.23/EA
Key Features
Part #:QOB3100VH
SKU #: 2219752
Brand: Square D
Amperage Rating: 100, 100 A
Dimensions: 2.91 in L x 2.25 in W x 3.5 in H
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 22, 22 kA
Number of Poles: 3
$557.23/EA
- QO and QOB circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication
- The tripping mechanisms in two and three-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously
- Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboard
- QO and QOB circuit breakers have Visi-Trip feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit
- Common trip
- 4 to 2/0 AWG aluminum/copper wire range
Specifications
Brand: Square D
Amperage Rating: 100, 100 A
Dimensions: 2.91 in L x 2.25 in W x 3.5 in H
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 22, 22 kA
Number of Poles: 3
Phase: 3, 3 ph
Temperature Rating (Degrees F): 104, 40, 40 deg C
Trip Type: Thermal Magnetic, Thermal/Magnetic
Type: Standard
Voltage Rating: 240, 240 VAC
Wire Size: 4 to 2/0, 4 to 2/0 AWG
Connection type: Box Lug
Country of origin: MX, US
Mounting type: Bolt-On
Manufacturer Name: Schneider Electric
UNSPSC: 39121603
UPC: 00785901054801
Square D QOB3100VH Qo Miniature Circuit Breaker
Square D QO Miniature Circuit Breaker, Standard, 240 VAC, 100 A, 50/60 Hz Frequency, 22 kA Interrupt, Thermal/Magnetic Trip, 3 Pole, 3 ph, Box Lug Connection, 4 to 2/0 AWG Wire, Bolt-On Mounting, 40 deg C, 2.91 in L x 2.25 in W x 3.5 in H Dimensions
Additional Description: SQD -QOB3100VH MINIATURE CIRCUIT BREAKER 240V 100A
Catalog Description: Mini circuit breaker, QO, 100A, 3 pole, 120/240VAC, 22kA, bolt on
Item FeaturesFor providing overload and short circuit protection
Item Features
Item FeaturesCSA C22.2 File No. 5|CSA Certified|HACR Rated|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov|RoHS Compliant|UL File No. 489|UL Listed
