Part Number # QOB325VH
SKU # 2393645
Image Disclaimers Message
QOB325VH

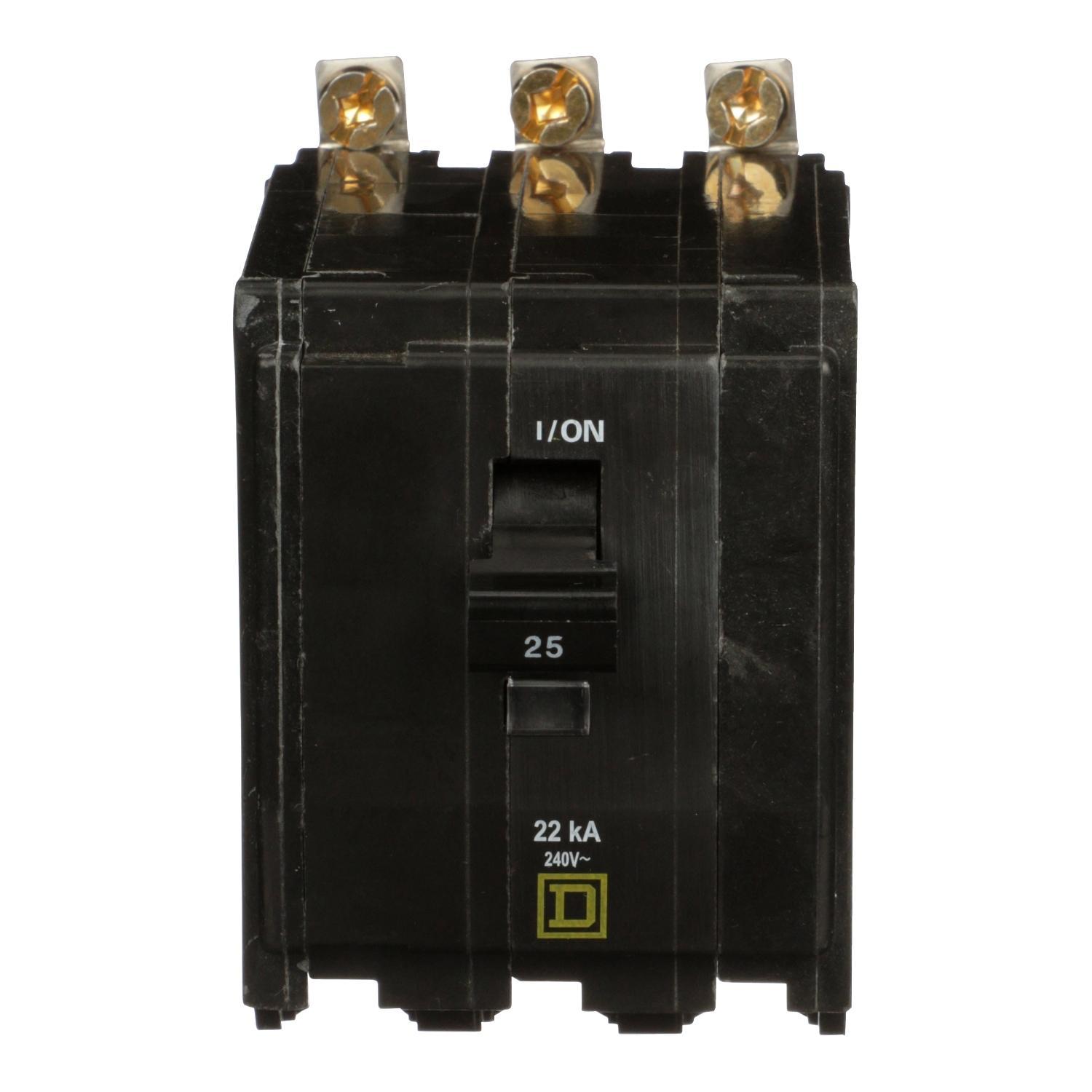

Square D QOB325VH Qo Miniature Circuit Breaker
Part Number # QOB325VH
SKU # 2393645
$389.80 / Each
Typical price:$475.20 / Each
Square D QOB325VH Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QOB325VH |
| SKU #: | 2393645 |
| Amperage Rating: | 25 A |
| Dimensions: | 2.91 in L x 2.25 in W x 3 in H |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 22 kA |
| Number of Poles: | 3 |
| Phase: | 3, 3 ph |
| Temperature Rating (Degrees F): | 40 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type QOB-VH Standard |
| Wire Size: | 14 to 8 AWG |
| Connection type: | Pressure Plate |
| Country of origin: | MX |
| Material: | Fiberglass Filled Thermoset |
| Mounting type: | Bolt-On |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 00785901371977 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$389.80 / Each
Typical price:$475.20 / Each
Quantity:
Square D QOB325VH Qo Miniature Circuit Breaker
Brand: Square D
Part Number: QOB325VH
Square D QO Miniature Circuit Breaker, Type QOB-VH Standard, 240 VAC, 25 A, 50/60 Hz Frequency, 22 kA Interrupt, Thermal/Magnetic Trip, 3 Pole, 3 ph, Pressure Plate Connection, 14 to 8 AWG Wire, Bolt-On Mounting, 40 deg C, 2.91 in L x 2.25 in W x 3 in H Dimensions, Fiberglass Filled Thermoset
Additional Description: SQD -QOB325VH MINIATURE CIRCUIT BREAKER 240V 25A
Catalog Description: Mini circuit breaker, QO, 25A, 3 pole, 120/240VAC, 22kA, bolt on
QOB325VH Application
Residential, HACR, Light Commercial, Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel, Series Arc Fault and Ground Fault Protection ApplicationsQOB325VH Item Features
- Reliable and durable
- Plug-on neutral design and shorter footprint for faster installs
- Simple design and clear instructions for quick setup
- Time-saving diagnostics with touch of a button
QOB325VH Standards
CSA C22.2 File No. 5|CSA Certified|Federal/SPecification W-C-375B/GEN|HACR Rated|NEMA AB1|NOM/ANCE Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov|RoHS Compliant|UL File No. 489 File No. E84967|UL ListedSKU #2393645Part Number #QOB325VHUNSPSC39121603UPC00785901371977
