Brand: Square D

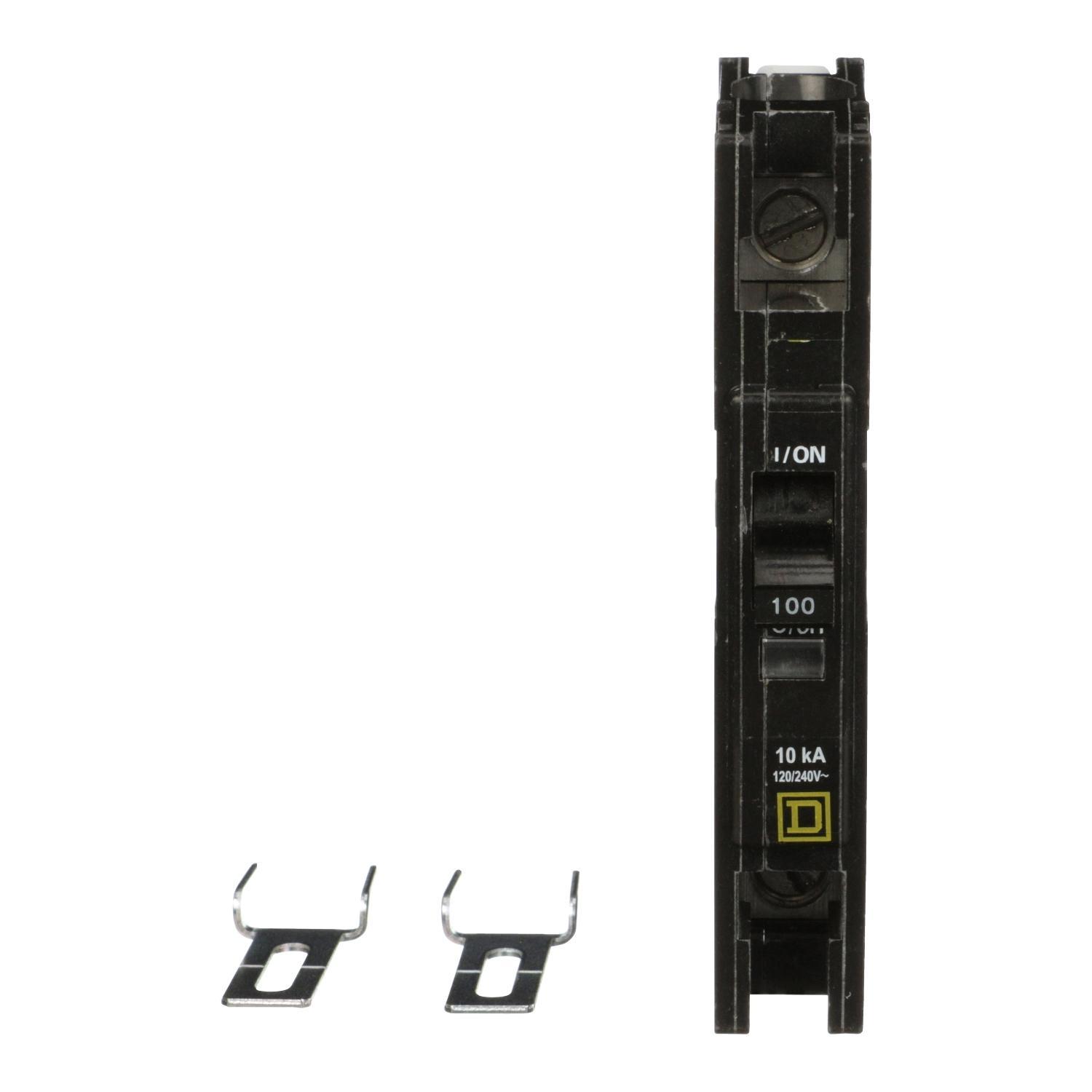

Square D QOU1100 Miniature Circuit Breaker
Part Number # QOU1100
SKU # 109186

Brand: Square D
QOU1100
Square D QOU1100 Miniature Circuit Breaker
Part Number # QOU1100
SKU # 109186
$154.59 / Each
Typical price:$176.00 / Each
Square D QOU1100 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QOU1100 |
| SKU #: | 109186 |
| Amperage Rating: | 100 A |
| Auxiliary Contact Rating: | 1A |
| Dimensions: | 0.45 in W x 2.96 in D x 6.3 in H |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA at 120/240 VAC, 5 kA at 60 VDC |
| Number of Poles: | 1 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 14 to 140 deg F |
| Trip Type: | Thermal Magnetic |
| Type: | Type QOU Standard |
| Wire Size: | 12 to 2/0 AWG Aluminum/Copper |
| Connection type: | Line/Load Lug |
| Country of origin: | MX |
| Mounting type: | DIN Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 00785901478546 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
$154.59 / Each
Typical price:$176.00 / Each
Quantity:
- Square D Miniature Circuit Breaker, Type QOU Standard, 120/240 V AC, 100 A, 50/60 Hz Frequency, 10 kA at 120/240 V AC, 5 kA at 60 VDC Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Line/Load Lug Connection, 1A Auxiliary, 12 to 2/0 AWG Aluminum/Copper Wire, DIN Rail/Surface Mounting, 14 to 140 deg F, 0.45 in W x 2.96 in D x 6.3 in H Dimensions
QOU1100 Application
Commercial HVAC and Wastewater Treatment ApplicationsQOU1100 Item Features
- QO MCBs are designed to sheild electronics from short-circuits and overcurrent
- Provides instaneous and time-delayed overcurrent protection
- Idle application for OEMs due to their high performances and multiple mounting options
- https://www.youtube.com/watch?v=qzoM_KCJiak
QOU1100 Standards
Buy American Act Compliant|RoHS Compliant|UL 489 File No. E84967|CSA C22.2 No. 5|NEMA AB1|Federal Specification W-C-375B/GEN|NOM/ANCE Certified|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.govSKU #109186Part Number #QOU1100UNSPSC39121603UPC00785901478546
Image provided may only be a representation of final product and may include optional equipment
