Brand: Square D

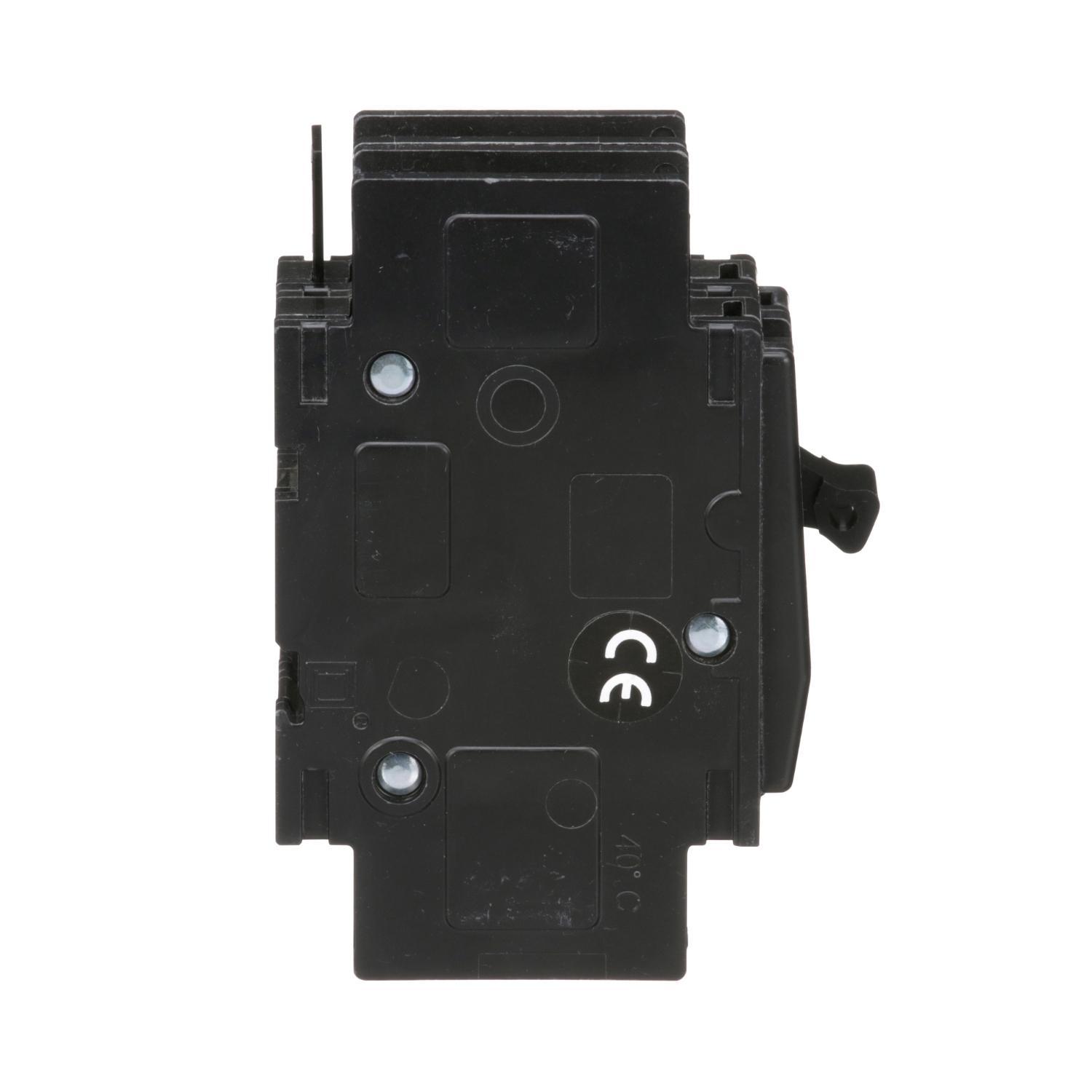

Square D QOU250 Qo Miniature Circuit Breaker
Image Disclaimers Message
Brand: Square D
Square D QOU250 Qo Miniature Circuit Breaker
Brand: Square D
Square D QOU250 Qo Miniature Circuit Breaker
Part #:QOU250
SKU #: 213881
$75.84/EA
Key Features
Part #:QOU250
SKU #: 213881
Brand: Square D
Actuator Type: Toggle
Amperage Rating: 50, 50 A
Dimensions: 2.95 in L x 1.5 in W x 4.05 in H
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 10, 10 kA
$75.84/EA
12 In Stock
Ships in 1 Business Day
- Miniature molded case circuit breakers are intended for use in residential and commercial applications
- QOU miniature circuit breakers are unit mount (lug/lug) thermal magnetic circuit breakers
- Provide a means to manually open a circuit
- Automatically open a circuit under overload or short circuit conditions
- Feature common tripping of all poles
- Visi-Trip trip indicator
- Lugs at both ends (cable-in/cable-out construction)
- Operate in any position
- Single handle with internal common trip
- Reversible line and load lugs
- Field installable quick connectors
- 10 kA at 120/240 VAC short circuit current rating
- 14 to 2 AWG aluminum/copper wire
Specifications
Brand: Square D
Actuator Type: Toggle
Amperage Rating: 50, 50 A
Dimensions: 2.95 in L x 1.5 in W x 4.05 in H
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 10, 10 kA
Number of Poles: 2
Phase: 1, 1 ph
Temperature Rating (Degrees F): 104, 104 deg F
Trip Type: Thermal Magnetic, Thermal/Magnetic
Type: Standard Unit Mount, Type QOU Standard Unit Mount
Voltage Rating: 120/240, 120/240 VAC
Wire Size: 14 to 2, 14 to 2 AWG
Color: Black
Connection type: Box Lug
Country of origin: MX
Mounting type: DIN Rail/Flush
Manufacturer Name: Schneider Electric
UNSPSC: 39121603
UPC: 00785901418771
Square D QOU250 Qo Miniature Circuit Breaker
Square D QO Miniature Circuit Breaker, Type QOU Standard Unit Mount, 120/240 VAC, 50 A, 50/60 Hz, 10 kA Interrupt, Thermal/Magnetic Trip, 2 Pole, 1 ph, Toggle Actuator, Box Lug, 14 to 2 AWG Wire, DIN Rail/Flush Mount, 104 deg F, 2.95 in L x 1.5 in W x 4.05 in H, Black
Additional Description: SQD -QOU250 MINIATURE CIRCUIT BREAKER 120/240V 50A 50A 120/240V
Catalog Description: Mini circuit breaker, QOU, 50A, 2 pole, 120/240VAC, 10kA
Item FeaturesAppliance Manufacturers, Car Wash Systems, Facility and Infrastructure, Food and Beverage, HVAC, Industrial Machinery, Material Handling, Specialty Machinery and Waste Water Treatment Facilities Applications
Item Features
Item FeaturesRoHS Compliant|UL 489 File No. E84967|CSA C22.2 No. 5.1|CE Certified|IEC 60947-2|HACR Rated|SWD Rated|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
