QOU290

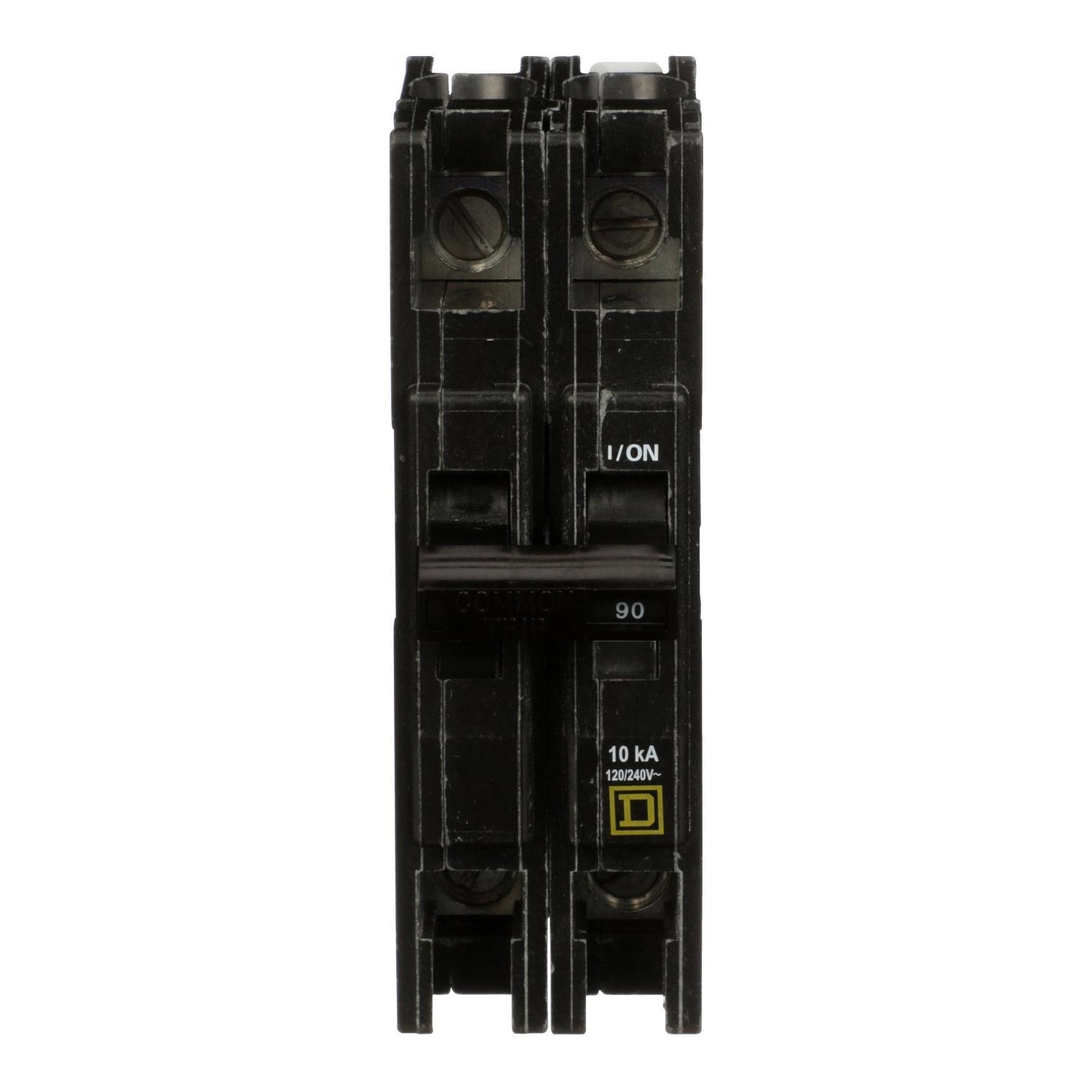

Square D QOU290 Miniature Circuit Breaker
Part Number # QOU290
SKU # 2185203
$212.36 / Each
Typical price:$258.89 / Each
Square D QOU290 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QOU290 |
| SKU #: | 2185203 |
| Amperage Rating: | 90, 90 A |
| Dimensions: | 1.32 in W x 2.96 in D x 6.3 in H |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 10 kA at 120/240 VAC, 5 kA at 60 VDC |
| Number of Poles: | 2 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 14 to 140, 14 to 140 deg F |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type QOU Standard |
| Wire Size: | 12 to 2/0 AWG Al/Cu, 12 to 2/0 AWG Aluminum/Copper |
| Connection type: | Line/Load Lug |
| Country of origin: | MX |
| Mounting type: | DIN Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 00785901060277 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$212.36 / Each
Typical price:$258.89 / Each
Quantity:
- Square D Miniature Circuit Breaker, Type QOU Standard, 120/240 V AC, 90 A, 50/60 Hz Frequency, 10 kA at 120/240 V AC, 5 kA at 60 VDC Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, Line/Load Lug Connection, 12 to 2/0 AWG Aluminum/Copper Wire, DIN Rail/Surface Mounting, 14 to 140 deg F, 1.32 in W x 2.96 in D x 6.3 in H Dimensions
QOU290 Application
Commercial HVAC and Wastewater Treatment ApplicationsQOU290 Item Features
- QO MCBs are designed to sheild electronics from short-circuits and overcurrent
- Provides instaneous and time-delayed overcurrent protection
QOU290 Standards
Buy American Act Compliant|RoHS Compliant|UL 489 File No. E84967|CSA C22.2 No. 5|NEMA AB1|Federal Specification W-C-375B/GEN|NOM/ANCE Certified|HACR Rated|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.govSKU #2185203Part Number #QOU290UNSPSC39121603UPC00785901060277
