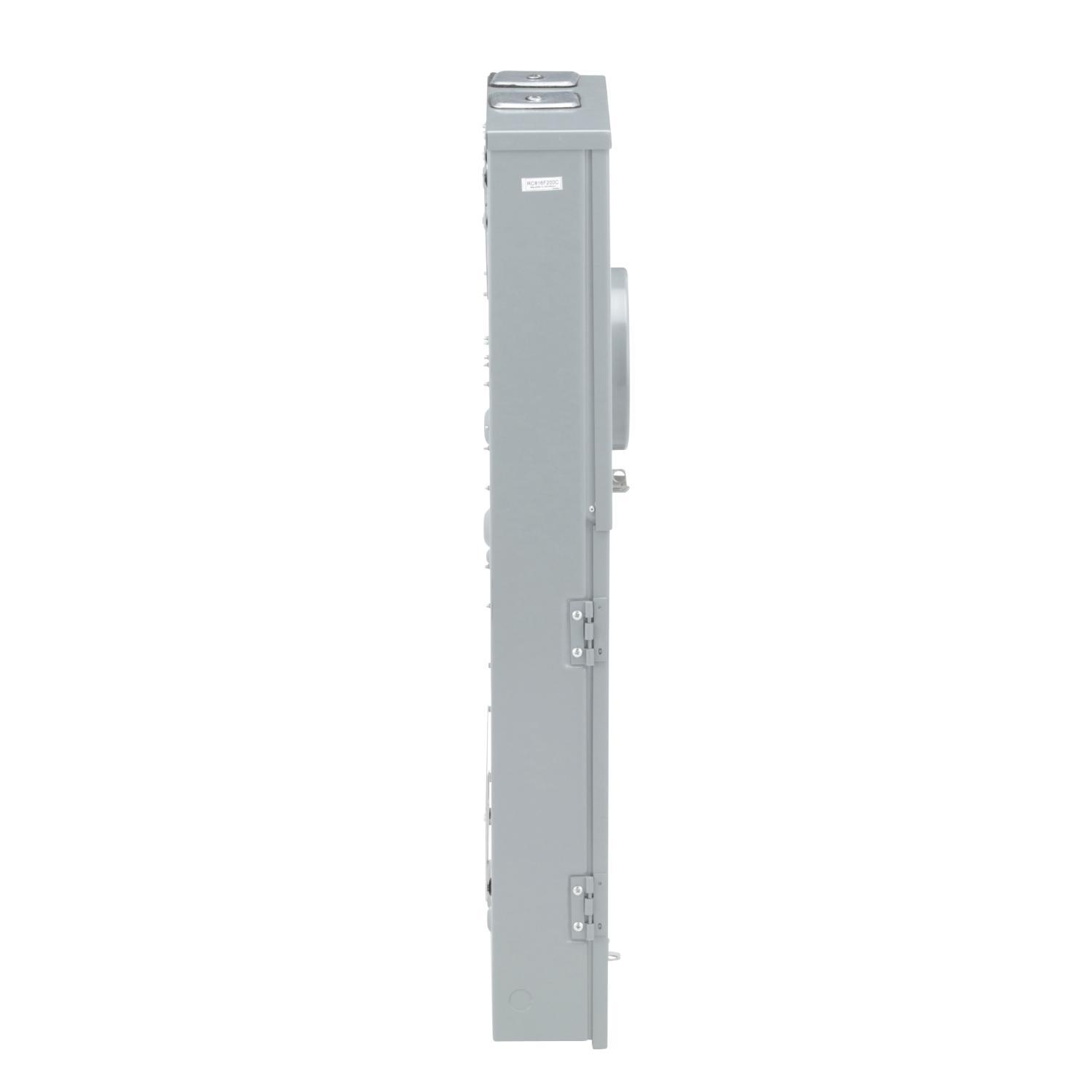

Square D RC816F200C Homeline Combination Service Entrance Meter Main
Square D RC816F200C Homeline Combination Service Entrance Meter Main
Part #:RC816F200C
SKU #: 2406637
Key Features
Part #:RC816F200C
SKU #: 2406637
Brand: Schneider Electric
Amperage Rating: 200 A
Dimensions: 14.37 in W x 4.67 in D x 35.13 in H
Enclosure Type: NEMA 3R
Frequency Rating: 50/60 Hz
Hub Size: A
- Multiple disconnect units can accommodate plug-on surge Breaker secondary surge arrester
- Multiple disconnect units can be converted to semi-flush with addition of flange kit
- 6 AWG to 350 kcmil line side main, 12 to 2/0 AWG service ground lug
- Without bypass
- Surface mount or convertible to semi-flush with field installed flange kit
- Device supplied with barrel lock provisions factory installed
Square D RC816F200C Homeline Combination Service Entrance Meter Main
Square D Homeline Combination Service Entrance Meter Main, 8-Space 16-Circuit All-in-One Field Installed Rainproof, 120/240/208Y/120 VAC, 200 A, 1 ph, 50/60 Hz Frequency, Overhead/Underground Feed, 6 AWG to 350 kcmil, 12 to 2/0 AWG Wire, A Hub, Ringless Cover, Line/Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 14.37 in W x 4.67 in D x 35.13 in H Dimensions
Additional Description: SQD -RC816F200C METER MAIN RINGLESS OH/UG 200A ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass
Catalog Description: Meter mains, Homeline, CSED, ringless socket, 200A, surface mount, maximum 8 spaces, 16 circuits, no bypass
