Part Number # RM35LM33MW
SKU # 2205576
Image provided may only be a representation of
final product and may include optional equipment
RM35LM33MW

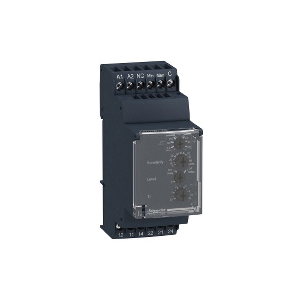

Square D RM35LM33MW Control Relay
Part Number # RM35LM33MW
SKU # 2205576
$126.70 / Each
Typical price:$136.45 / Each
Square D RM35LM33MW Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | RM35LM33MW |
| SKU #: | 2205576 |
| Amperage Rating: | 5, 5 A |
| Coil Voltage: | 250, 250 V AC/DC, 250 VAC/VDC, 4 to 240 |
| Contact Form: | 2CO, 2CO 2 Form C |
| Contact Rating: | 5 A at 12/13/14/15 VAC, 12/13 VDC |
| Dimensions: | 1.37 in W, 1.38 in W |
| Display Type: | LED |
| Enclosure Type: | IP20/IP30 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Series: | RM35-L |
| Temperature Rating (Degrees F): | -20 to 50, -40 to 158, -40 to 158 deg F |
| Terminal Type: | Threaded |
| Type: | Liquid Level |
| Country of origin: | ID |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901565796 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$126.70 / Each
Typical price:$136.45 / Each
Quantity:
Square D RM35LM33MW Control Relay
Brand: Square D
Part Number: RM35LM33MW
Square D Control Relay, Liquid Level, Series: RM35-L, 5 A, <5 VA, 50/60 Hz, 250 VAC/VDC Coil, 2CO, DIN Rail Mount, Threaded Terminal, LED, IP20/IP30, -40 to 158 deg F, 1.37 in W
Additional Description: SQD -RM35LM33MW MULTIFUNC LEV CONTRL RESIST 24-240VAC/DC
Catalog Description: level control relay, Harmony Control Relays, 5A, 2CO, 24...240V AC DC
RM35LM33MW Application
Detecting Pump Seal Failures, Spring, Town, Industrial and Sea Water, Metallic Salt, Acid or Base Solutions, Liquid Fertilizers and Non-Concentrated AlcoholRM35LM33MW Item Features
- 250 VAC conforming to EN/IEC 60947-1 rated insulation voltage
- 24 to 240 VAC/VDC rated supply voltage
- Self-extinguishing plastic housing
- 360 operations/hr under full load operating rate
- Insulation between supply and measurement
- 10 mA at 5 VDC minimum switching current
- 95% at 55 deg C conforming to IEC 60068-2-30 relative humidity
- -4 to 122 deg F storage temperature
RM35LM33MW Standards
EN/IEC 60255-6|CE 73/23/EEC|CSA File No. 248382|UL File No. E173076|C-Tick|RoHS CompliantSKU #2205576Part Number #RM35LM33MWUNSPSC39122331UPC00785901565796
