Part Number # 8536SCG3V08
SKU # 2252245
Brand: Square D
8536SCG3V08

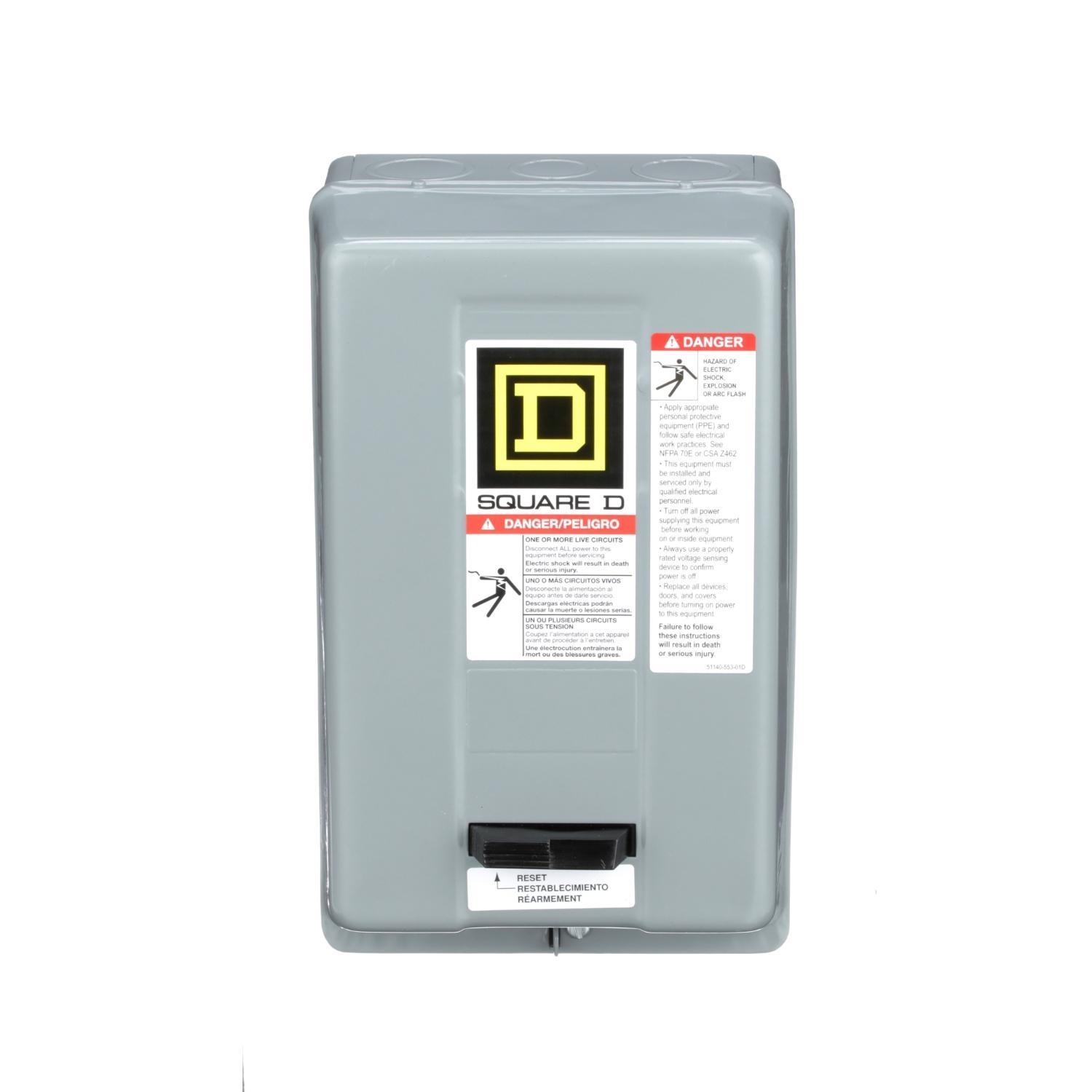

Square D 8536SCG3V08 Starter
Part Number # 8536SCG3V08
SKU # 2252245
$723.58 / Each
Square D 8536SCG3V08 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8536SCG3V08 |
| SKU #: | 2252245 |
| Action: | Non-Reversing |
| Amperage Rating: | 27 A |
| Coil Voltage: | 208 V AC |
| Dimensions: | 5.98 in W x 5.55 in D x 10 in H |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 60 Hz |
| Motor Power: | 7-1/2 hp/10 hp |
| Number of Poles: | 3 |
| Overload Relay: | Thermal Melting Alloy 3 |
| Phase: | 3 |
| Reset Type: | (3) Thermal Melting Alloy |
| Type: | General Purpose Type S |
| Connection type: | Screw Clamp |
| Country of origin: | MX |
| Material: | Sheet Steel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121521 |
| UPC: | 00785901765813 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$723.58 / Each
Quantity:
- Square D Starter, General Purpose Type S, 600 V AC, 27 A, 60 Hz, 7-1/2 hp/10 hp Motor, 208 VAC Coil, 3 Pole, (3) Thermal Melting Alloy Reset, 3 ph, Screw Clamp, Non-Reversing, Thermal Melting Alloy 3 Overload Relay, NEMA 1, Starting Modes: Magnetic, Sheet Steel, 5.98 in W x 5.55 in D x 10 in H
8536SCG3V08 Application
For full voltage starting and stopping of AC squirrel cage motors applications8536SCG3V08 Item Features
- Flexiblewith four overload relays types
- Customizablewith hundreds of combinations
- Streamline installation, wiring, maintenance and field modifications
- Reliable build for long mechanical life and electrical endurance
- https://www.youtube.com/embed/W3jC7ckgcBo
8536SCG3V08 Standards
UL Listed|CSA Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.govSKU #2252245Part Number #8536SCG3V08UNSPSC39121521UPC00785901765813
Image provided may only be a representation of final product and may include optional equipment
