Part Number # 8536SCO3V02S
SKU # 35380

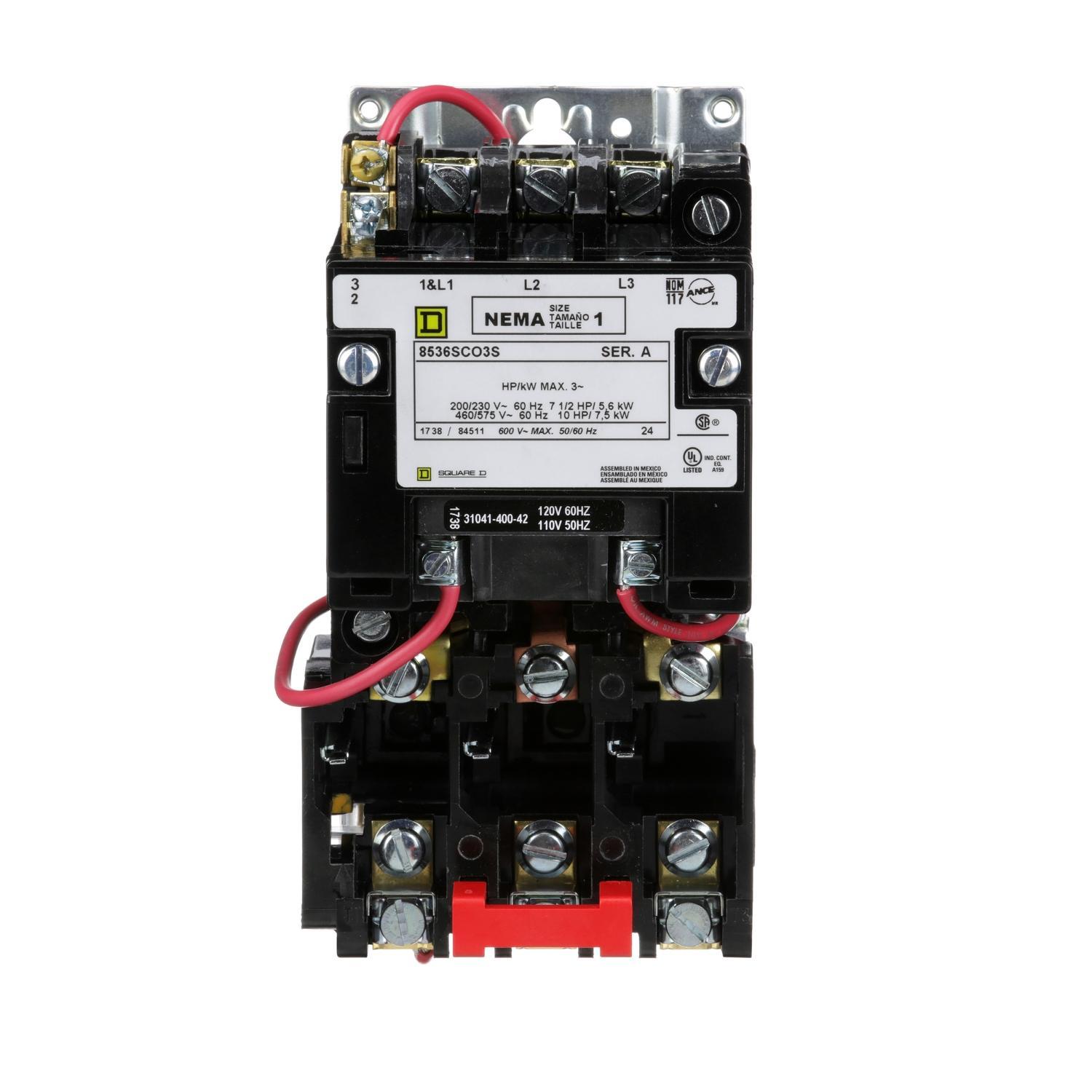

Image provided may only be a representation of
final product and may include optional equipment
8536SCO3V02S
Square D 8536SCO3V02S Starter
Part Number # 8536SCO3V02S
SKU # 35380
Square D 8536SCO3V02S Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 8536SCO3V02S |
| SKU #: | 35380 |
| Action: | Non-Reversing |
| Amperage Rating: | 27, 27 A |
| Coil Voltage: | 110 to 120, 110 to 120 VAC, 110/120, 110/120 V AC, 110/120 VAC |
| Dimensions: | 4.53 in W x 4.22 in D x 6.77 in H, 6.77 in H x 3.5 in W x 4.21 in D |
| Enclosure Type: | NEMA 1/Open, Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Motor Power: | 7-1/2 hp, 10 hp, 7-1/2 hp/10 hp |
| Number of Poles: | 3 |
| Overload Relay: | Thermal Melting Alloy, Thermal Melting Alloy 3 |
| Phase: | 3, 3 ph |
| Reset Type: | (3) Thermal Melting Alloy |
| Series: | 8536S |
| Type: | Type S, Type S Non-Reversing |
| Connection type: | Screw Clamp |
| Country of origin: | MX |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121521 |
| UPC: | 00785901845119 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D 8536SCO3V02S Starter
Brand: Square D
Part Number: 8536SCO3V02S
Square D Starter, Type S Non-Reversing, Series: 8536S, 600 VAC, 27 A, 50/60 Hz Frequency, 7-1/2 hp, 10 hp Motor, 110 to 120 VAC Coil, 3 Pole, 3 ph, Screw Clamp Connection, Thermal Melting Alloy 3 Overload Relay, Open Enclosure, 6.77 in H x 3.5 in W x 4.21 in D Dimensions
Additional Description: SQD -8536SCO3V02S STARTER 600VAC 27AMP NEMA +OPTIONS
Catalog Description: NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open [TAA]
8536SCO3V02S Application
For full voltage starting and stopping of AC squirrel cage motors applications8536SCO3V02S Item Features
- Flexible with four overload relays types
- Customizable with hundreds of combinations
- Streamline installation, wiring, maintenance and field modifications
- Reliable build for long mechanical life and electrical endurance
8536SCO3V02S Standards
UL Listed|CSA Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.govSKU #35380Part Number #8536SCO3V02SUNSPSC39121521UPC00785901845119
