Part Number # 9001BW93Y
SKU # 2227764
Image provided may only be a representation of
final product and may include optional equipment
9001BW93Y

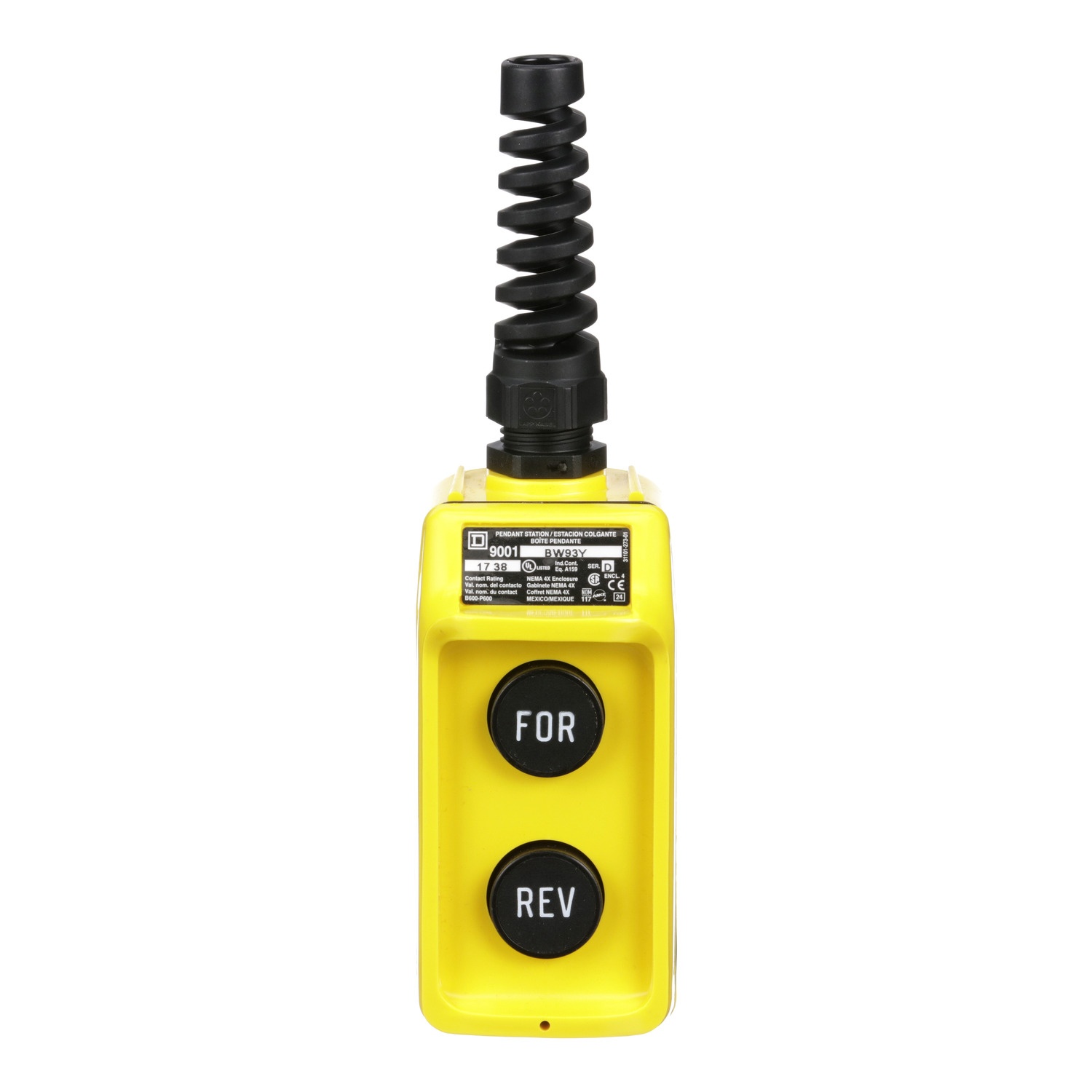

Square D (Schneider Electric) 9001BW93Y Pendant Control Station
Part Number # 9001BW93Y
SKU # 2227764
Schneider Electric 9001BW93Y Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9001BW93Y |
| SKU #: | 2227764 |
| Amperage Rating: | 5, 5 A |
| Contact Configuration: | 1NC-1NO, 1NO-1NC, 2NO |
| Contact Form: | Momentary |
| Contact Rating: | 5 A at 600 VAC |
| Dimensions: | 4.25 in H x 2.76 in W x 3.6 in D |
| Legend: | FORWARD-REVERSE |
| NEMA Rating: | NEMA 1/3/3R/4/4X, NEMA 4 |
| Number of Operators: | 2 |
| Operating Temperature: | -13 to 140, -13 to 140 deg F |
| Operator Type: | Momentary |
| Series: | 9001B |
| Type: | Type BW |
| Country of origin: | MX |
| Material: | Die Cast Zinc, Polycarbonate |
| Mounting type: | Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121561 |
| UPC: | 00785901852902 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Square D (Schneider Electric) 9001BW93Y Pendant Control Station
Brand: Schneider Electric
Part Number: 9001BW93Y
Schneider Electric Harmony™ Pendant Control Station, Type BW, Series: 9001B, 600 VAC, 5 A, 2 Operators, 2NO, Momentary, 5 A at 600 VAC Contact, Forward-Reverse Legend, NEMA 4, Panel Mount, Die Cast Zinc, Yellow, 4.25 in H x 2.76 in W x 3.6 in D
Additional Description: SQD -9001BW93Y PENDANT STATION 600VAC 5A T-BW
Catalog Description: Pendant Station, 2 mechanically interlocked push buttons, NO contacts, FORWARD REVERSE, yellow enclosure, 600 VAC 5 A
9001BW93Y Specifications
- 1/2-14 NPT cable entry
9001BW93Y Application
Hoist Applications9001BW93Y Item Features
- 1/2 to 14 NPT cable entry
9001BW93Y Standards
RoHS Compliant|UL Listed|CSA Certified|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2227764Part Number #9001BW93YUNSPSC39121561UPC00785901852902
