Brand: Square D
TM5SAO2L

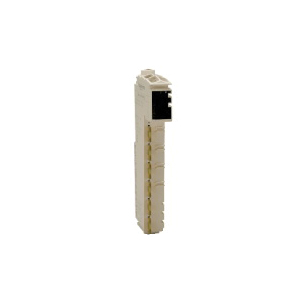

Square D TM5SAO2L Modicon Analog Output Module
Part Number # TM5SAO2L
SKU # 2209732
$477.25 / Each
Square D TM5SAO2L Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | TM5SAO2L |
| SKU #: | 2209732 |
| Amperage Rating: | 0 to 20, 0 to 20 mA, 20 |
| Series: | TM5 |
| Temperature Rating (Degrees F): | 0 to 60, 0 to 60 deg C, 32 to 140 |
| Color: | White |
| Number of outputs: | 2 |
| Resolution: | 12, 12 bit |
| UNSPSC: | 32151703 |
| UPC: | 00785901822493 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$477.25 / Each
Quantity:
Square D TM5SAO2L Modicon Analog Output Module
Brand: Square D
Part Number: TM5SAO2L
Square D Modicon Analog Output Module, Series: TM5, 2 Output, 12 bit Resolution, <=1 ms Step Response, 24 VDC, 0 to 20 mA, <=1.11 W, 0 to 60 deg C, White
Additional Description: SQD -TM5SAO2L (N) MOD. 2AO 10V/0-20MA 12 BITS NON-CANCELABLE, NON-RETURNABLE
Catalog Description: analog output module, Modicon TM5, 2O, +/-10V, 0 to 20mA, 12bits
TM5SAO2L Item Features
- 12 bits 0 to 20 mA, 12 bits + sign +/-10 VDC analog output resolution
- Modicum LMC058, M258 range compatibility
- Motion controller, logic controller product compatibility
- Current 0 to 20 mA, voltage +/-10 VDC analog output type
- 4.882 mV, +/-10 VDC, 9.766 mA, 0 to 20 mA measurement resolution
- >=1 Ohm output impedance, <=500 Ohm (current) load impedance Ohmic, 200 ms sampling duration
- <0.15% of full scale, +/-10 V at 25 deg C, <0.15% of full scale, 0 to 20 mA at 25 deg C measurement error
- 0.02% of full scale/deg C analog output current, 0.02% of full scale/ deg C, analog output voltage
- <0.007% of full scale, analog output current, <0.007% of full scale, analog output voltage non-linearity
- Shielded cable type of cable, internal supply
- No insulation between channel, 500 Vrms AC insulation between channel and bus isolation
- 1 LED green and red for power supply, 2 LEDs yellow for output status local signaling
- 2 mA 5 VDC bus, 46 mA 24 VDC input/output current consumption
- -25 to 70 deg C ambient air temperature for storage
- 5 to 95% without condensation relative humidity
- IP20 conforming to IEC 61131-2
- 2 deg pollution, 0 to 2000 m operating altitude, 0 to 3000 m storage altitude, 15 gn for 11 ms shock resistance
- 1 gn (f= 8.4 to 150 Hz), 3.5 mm (f= 5 to 8.4 Hz) DIN rail vibration resistance
- 4 kV on contacts, 8 kV in air conforming to EN/IEC 61000-4-2 resistance to electrostatic discharge
- 1 V/m 2 to 2.7 GHz, 10 V/m 80 to 2000 MHz conforming to EN/IEC 61000-4-3 resistance to electromagnetic fields
