Square D TM5SAO4L Modicon Analog Output Module
Part Number # TM5SAO4L
SKU # 2218337
$694.14 / Each
Typical price:$758.21 / Each
Square D TM5SAO4L Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | TM5SAO4L |
| SKU #: | 2218337 |
| UNSPSC: | 32151703 |
| UPC: | 00785901822578 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$694.14 / Each
Typical price:$758.21 / Each
Quantity:
Square D TM5SAO4L Modicon Analog Output Module
Brand: Square D
Part Number: TM5SAO4L
Square D Modicon Analog Output Module, Series: TM5, 4 Output, 12 bit Resolution, 24 V DC, 0 to 20 mA, <=1.51 W, 0 to 60 deg C, White
Additional Description: SQD -TM5SAO4L MOD. 4AO 10V/0-20MA 12 BITS
Catalog Description: analog output module, Modicon TM5, 4O, +/-10V, 0 to 20mA, 12bits
TM5SAO4L Item Features
- 12 bits 0 to 20 mA, 12 bits + sign +/-10 VDC analog output resolution
- Modicum LMC058, M258 range compatibility
- Motion controller, logic controller product compatibility
- Current 0 to 20 mA, voltage +/-10 VDC analog output type
- 4.882 mV, +/-10 VDC, 9.766 mA, 0 to 20 mA measurement resolution
- >=1 Ohm output impedance, 200 to 500 Ohm (current) load impedance Ohmic, 300 ms sampling duration
- <0.08% of full scale, +/-10 V at 25 deg C, <0.08% of full scale, 0 to 20 mA at 25 deg C measurement error
- 0.015% of full scale/deg C analog output current, 0.015% of full scale/deg C, analog output voltage
- <0.005% of full scale, analog output current, <0.005% of full scale, analog output voltage non-linearity
- Shielded cable type of cable, internal supply, 24 VDC -15 to 20% rated supply voltage
- No insulation between channel, 500 Vrms AC insulation between channel and bus isolation
- 1 LED green and red for power supply, 2 LEDs yellow for output status local signaling
- 2 mA 5 VDC bus, 46 mA 24 VDC input/output current consumption
- -25 to 70 deg C ambient air temperature for storage
- 5 to 95% without condensation relative humidity
- IP20 conforming to IEC 61131-2
- 2 deg pollution, 0 to 2000 m operating altitude, 0 to 3000 m storage altitude, 15 gn for 11 ms shock resistance
- 1 gn (f= 8.4 to 150 Hz), 3.5 mm (f= 5 to 8.4 Hz) DIN rail vibration resistance
- 4 kV on contacts, 8 kV in air conforming to EN/IEC 61000-4-2 resistance to electrostatic discharge
- 1 V/m 2 to 2.7 GHz, 10 V/m 80 to 2000 MHz conforming to EN/IEC 61000-4-3 resistance to electromagnetic fields
TM5SAO4L Standards
UL 508|cULus Listed|CSA C22.2 No 213|CSA C22.2 No 142|IEC 61131-2|C-Tick|GOST-R|CE Certified|CertifiedSKU #2218337Part Number #TM5SAO4LUNSPSC32151703UPC00785901822578

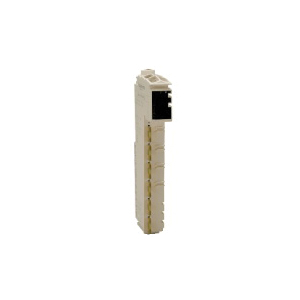

Image provided may only be a representation of final product and may include optional equipment
