Part Number # TM5SDO12T
SKU # 2203761
TM5SDO12T

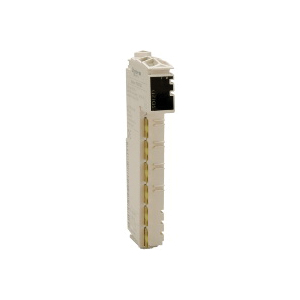

Square D TM5SDO12T Modicon Discrete Output Module
Part Number # TM5SDO12T
SKU # 2203761
$320.82 / Each
Typical price:$350.43 / Each
Square D TM5SDO12T Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | TM5SDO12T |
| SKU #: | 2203761 |
| Amperage Rating: | 48/52, 48/52 mA |
| Dimensions: | 3.9 in H x 0.49 in W |
| Series: | TM5 |
| Type: | Transistor |
| Number of outputs: | 12 |
| UNSPSC: | 32151703 |
| UPC: | 00785901821939 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$320.82 / Each
Typical price:$350.43 / Each
Quantity:
Square D TM5SDO12T Modicon Discrete Output Module
Brand: Square D
Part Number: TM5SDO12T
Square D Modicon Discrete Output Module, Transistor, Series: TM5, 12 Output, <=300 ms, 24 VDC, 48/52 mA, <=2.04 W, 14 to 140 deg F, White
Additional Description: SQD -TM5SDO12T MOD. 12DO 24VDC TR 0.5A 1 WIRE 1 WIRE
Catalog Description: discrete output module, Modicon TM5, 12 DO, 24V DC, 0.5 A, 1 wire
TM5SDO12T Item Features
- Modicum LMC058, M258, PacDrive LMC motion controller range compatibility
- Motion controller, logic controller, PacDrive LMC Pro, PacDrive LMC Eco, PacDrive LMC Pro 2 product compatibility
- 20.4 to 28.8 VDC input voltage limits
- Source discrete input logic
- 0.5 A current per channel, <=6 A current per output common
- <=12 A peak output current
- <=500 Hz resistive load switching frequency
- <=300 us from state 0 to 1 output, <=300 us from state 1 to 0 output response time
- 5 mA when switched OFF leakage current
- Overload, reverse polarity, short circuit protection
- No insulation between channel, 500 Vrms AC insulation between channel and bus isolation
- 36 mA 5 VDC bus, 73 mA 24 VDC all inputs on current consumption
- 1 LED green and red power supply, 12 LEDs green input status local signaling
- 1 wire electrical connection
- -40 to 158 deg F ambient air temperature for storage
- 5 to 95% without condensation relative humidity
- IP20 conforming to IEC 61131-2
- 2 deg conforming to IEC 60664 pollution
- 0 to 6561.68 ft operating altitude, 0 to 9842.52 ft storage altitude
- 1 gn (f = 8.4 to 150 Hz) DIN rail, 3.5 mm (f = 5 to 8.4 Hz) DIN rail vibration resistance
TM5SDO12T Standards
cULus Listed|UL 508|CSA C22.2 No 142|CSA C22.2 No 213|IEC 61131-2, C-Tick, GOST-R CertifiedSKU #2203761Part Number #TM5SDO12TUNSPSC32151703UPC00785901821939
Image provided may only be a representation of final product and may include optional equipment
