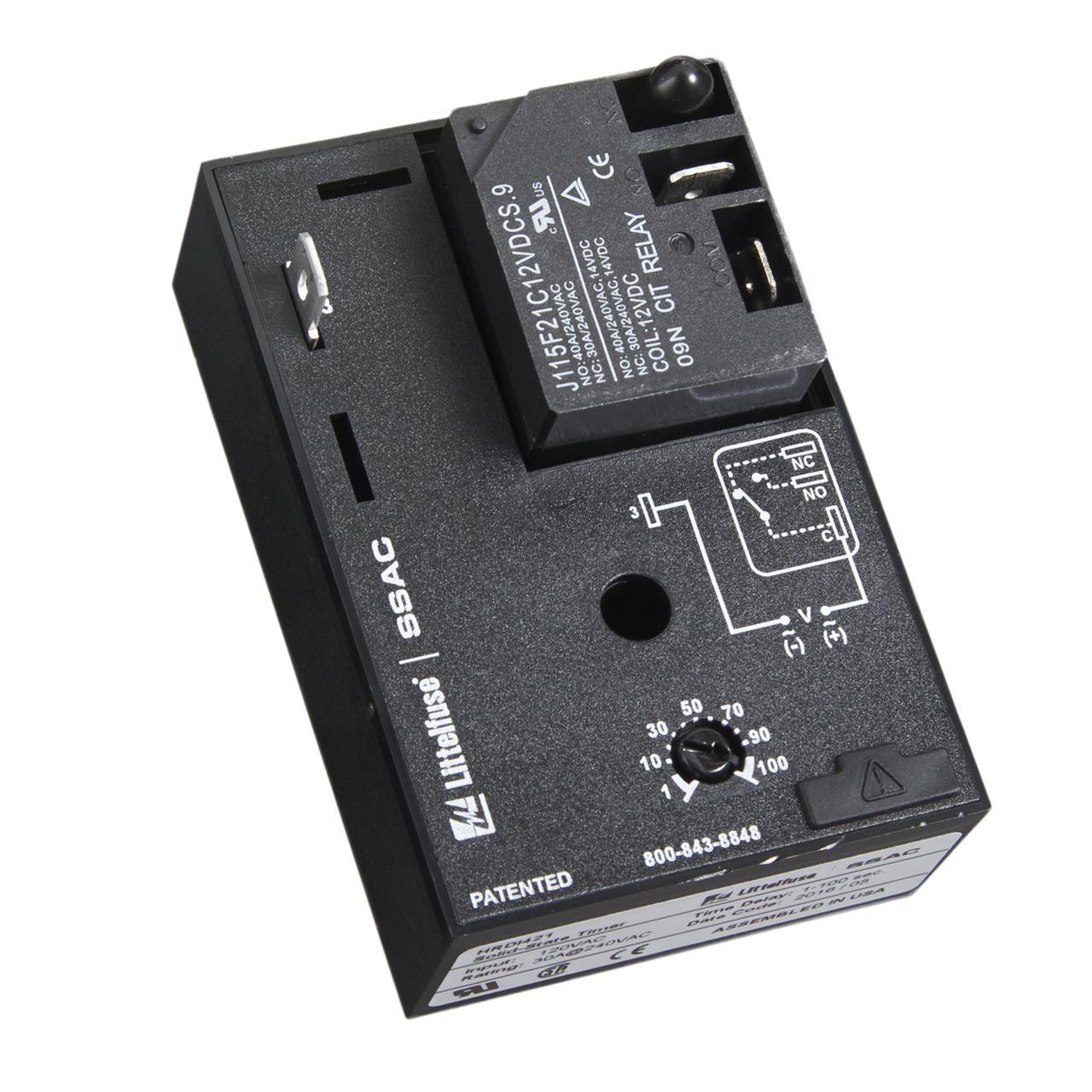

Ssac-Symcom HRDI421
Part Number # HRDI421
SKU # 2434810
Littelfuse HRDI421 Key Features
Ssac-Symcom HRDI421
Brand: Littelfuse
Part Number: HRDI421
Littelfuse® SSAC® Time Delay Relay, Adjustable Onboard, Series: HRDI, Operation Mode: Interval, 120 VAC, SPDT/NO-NC (1 Form C) Contact Form, 1 to 100 s Time Setting, Male Quick-Connect Terminal Electrical Connections, -40 to 60 deg F, Surface Mounting, 3 in H x 2 in W x 1-1/2 in D
Additional Description: LTFS-HRDI421 INTERVAL TIMER
Catalog Description: The HRDI Series combines an electromechanical relay output with microcontroller timing circuitry. It offers 12 to 230V operation in five ranges and factory fixed, external, or onboard adjustable time delays with a repeat accuracy of ±0.5%. The output contact rating allows for direct operation of heavy loads, such as compressors, pumps, blower motors, heaters, etc. This series is ideal for OEM applications where cost is a factor. Operation (Interval): Upon application of input voltage, the time delay begins. The output relay is energized during the time delay. At the end of the time delay, the output de-energizes and remains de-energized until input voltage is removed. Reset: Removing input voltage resets the time delay and the output.
SKU #2434810Part Number #HRDI421UNSPSC39122329UPC00079458993851
