Stahlin N201610HWT Electrical General Purpose Enclosure
Part Number # N201610HWT
SKU # 2195882
N201610HWT
Stahlin N201610HWT Electrical General Purpose Enclosure
Part Number # N201610HWT
SKU # 2195882
$953.62 / Each
Typical price:$1600.64 / Each
Stahlin N201610HWT Key Features
| Brand: | Stahlin |
|---|---|
| Part Number # : | N201610HWT |
| SKU #: | 2195882 |
| Series: | N Series |
| Manufacturer Name: | Robroy Industries |
| UNSPSC: | 39121324 |
| UPC: | 00078592822132 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$953.62 / Each
Typical price:$1600.64 / Each
Quantity:

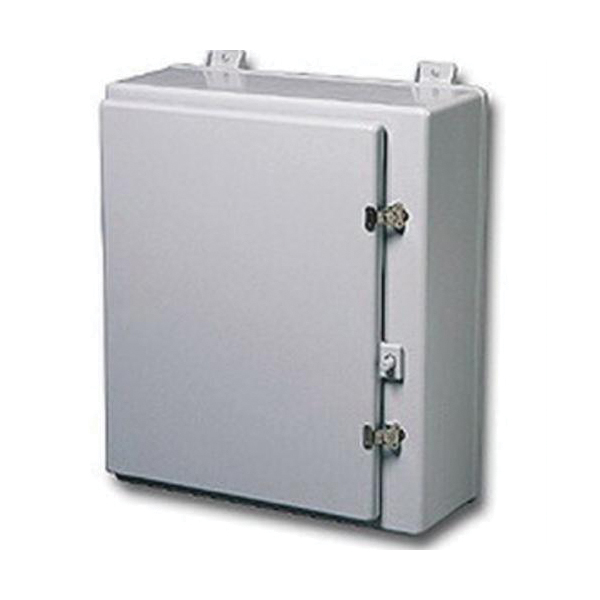

- Stahlin Enclosure, Series: N Series, 20 in H x 16 in W x 10 in D, NEMA 4X, Hinged Cover, Lock: Draw Latch, Wall Mount, -76 to 274 deg F, Fiberglass Reinforced Polyester, Smooth, Glacier Gray
N201610HWT Specifications
- High temperature, flame retardant, non-corrosive, environmental designs
- Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal
- 300 series stainless used on all external hardware
- Panel mounting capability for fixed rear panel
- Back panel utilizes threaded brass inserts accepting 3-gang/8-16 screws
- Rounded edges, minimal protrusions or exposed pocket areas for assembly of dust and debris
- Hot compression molded fiberglass reinforced polyester, hand layup FRP
N201610HWT Application
For larger space control systems and machine tool control panels, they are well suited for both indoor and outdoor environments applicationsN201610HWT Item Features
- High temperature, flame retardant, non-corrosive and environmental designs
- Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal
- 300 series stainless used on all external hardware
- Panel mounting capability for fixed rear panel
- Back panel utilizes threaded brass inserts accepting 3-gang/8-16 screws
- Rounded edges, minimal protrusions or exposed pocket areas for assembly of dust and debris
- Hot compression molded fiberglass-reinforced polyester, hand layup FRP
- https://youtube.com/watch?v=ZFN_eepMH4g
N201610HWT Standards
ARRA Compliant|BAA Compliant|cUL 50/File No. E64358|CSA LR069014|IEC Standard|RoHS Compliant|UL Listed|UL 94-5V Flammability RatedSKU #2195882Part Number #N201610HWTUNSPSC39121324UPC00078592822132
Image provided may only be a representation of final product and may include optional equipment
