Part Number # 77C
SKU # 2412202
77C

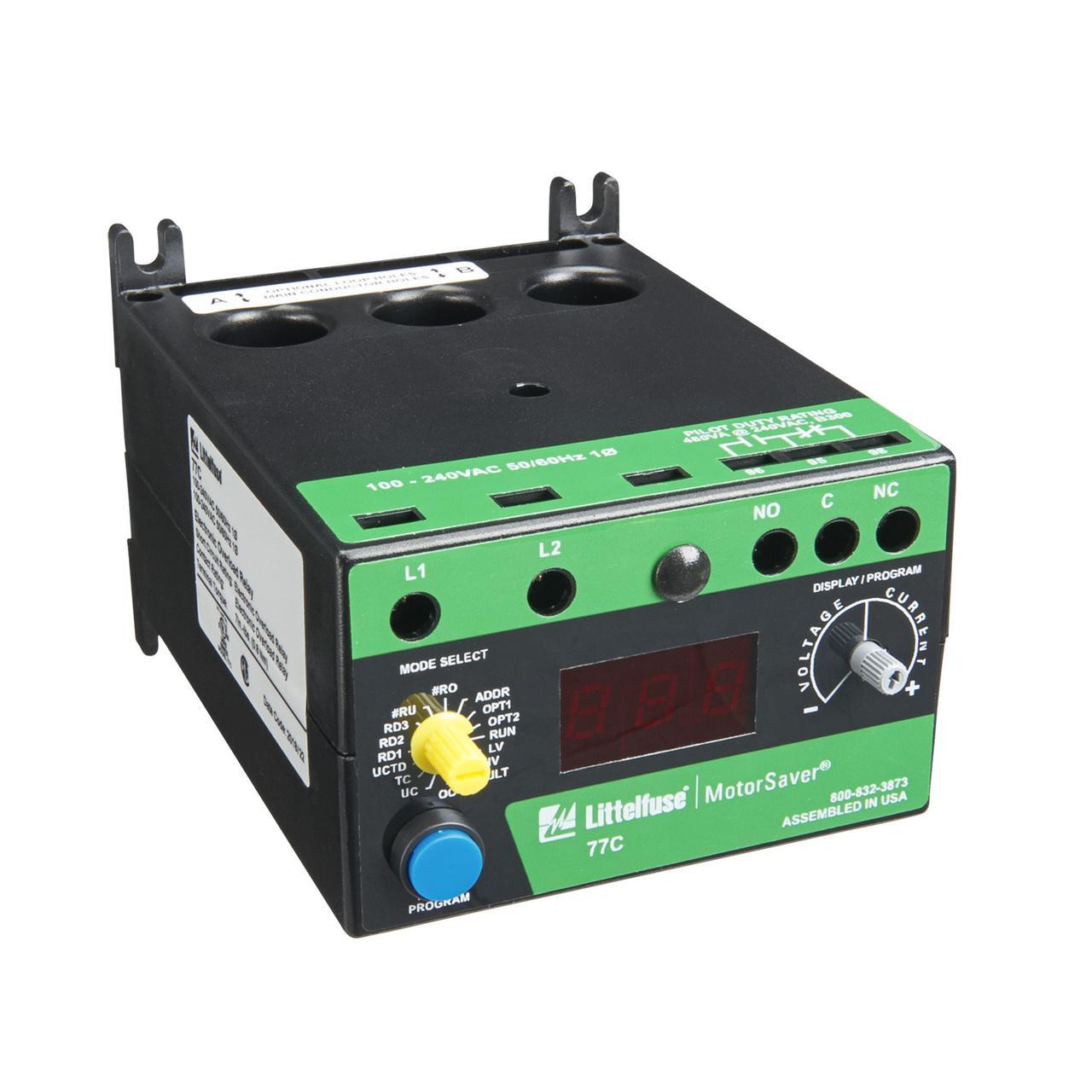

Symcom 77C Phase Failure Relay
Part Number # 77C
SKU # 2412202
$413.41 / Each
Typical price:$773.63 / Each
Littelfuse 77C Key Features
| Brand: | Littelfuse |
|---|---|
| Part Number # : | 77C |
| SKU #: | 2412202 |
| Contact Form: | 1 Form C SPDT |
| Contact Rating: | 10 A, 480 VA |
| Dimensions: | 3.05 in H x 3.85 in W x 5.05 in D |
| Display Type: | LED |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 1 |
| Series: | 77C |
| Temperature Rating (Degrees F): | -4 to 158 deg F |
| Type: | 1-Phase |
| Country of origin: | MX |
| Mounting type: | DIN Rail/Surface |
| Manufacturer Name: | Littelfuse |
| UNSPSC: | 39122332 |
| UPC: | 00079458991192 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$413.41 / Each
Typical price:$773.63 / Each
Quantity:
- Littelfuse Overload Relay, 1-Phase, Series: 77C, 10 W Power, 50/60 Hz Frequency, 1 Form C SPDT Contact Form, 10 A, 480 VA Contact, 1 Pole, DIN Rail/Surface Mounting, LED Display, IP20 Enclosure, -4 to 158 deg F, 3.05 in H x 3.85 in W x 5.05 in D Dimensions
77C Item Features
- Built-in display, visual indication for programming, viewing real-time voltage or current and last fault code
- Programmable voltage and current settings, allows usage on wide range of systems
- 3 selectable restart options, choose from automatic, semi-automatic or manual to best meet individual application needs
- 3 programmable restart delay timers, program separate restart delay time for rapid cycle protection, motor cool down and dry well recovery
- Remote display compatibility, increases safety through remote display of real time data and fault history, without the need to open the cabinet, aids with arc flash safety regulations
- Flexible reset, reset can be done through pushbutton on relay or remotely with optional 777-MRSW or OL-RESET remote reset kit
- Network communications capability, compatible with Modbus, DeviceNet, Profibus, or ethernet using optional communications module
- 2 to 800 A (external CTs required above 90 A) motor full amperage range
- Provides 480 VA at 240 VAC output SPDT relay contacts
- 480 VA at 240 VAC, B300 pilot duty rating, 10 A at 240 VAC general purpose
77C Standards
UL 508/1053 File No. E68520|CE IEC 60947-1/60947-5-1|IEC 68-2-27|CSA C22.2|ANSI/IEEE C62.41|PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancerSKU #2412202Part Number #77CUNSPSC39122332UPC00079458991192
Image provided may only be a representation of final product and may include optional equipment
