1SNA110106R2500

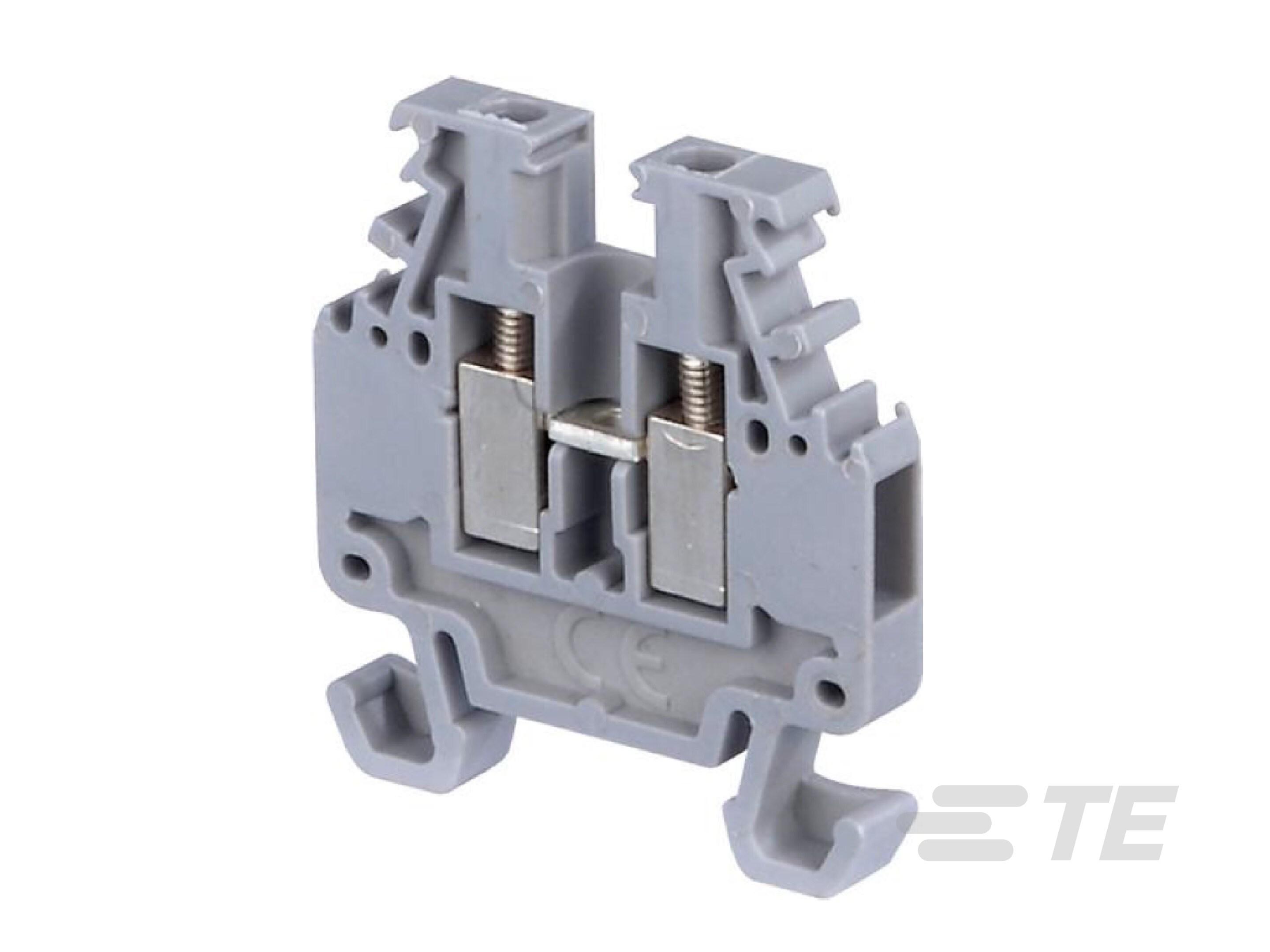

TE Connectivity 1SNA110106R2500 Dr1.5/4
Part Number # 1SNA110106R2500
SKU # 2221790
$55.00 / 50Each
Typical price:$70.65 / Each
TE Connectivity 1SNA110106R2500 Key Features
| Brand: | TE Connectivity |
|---|---|
| Part Number # : | 1SNA110106R2500 |
| SKU #: | 2221790 |
| Amperage Rating: | 17.5 A |
| Dimensions: | 28 mm H x 4 mm W x 25.5 mm D |
| Series: | SNA |
| Spacing: | 4 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Torque Rating: | 0.4 N-m |
| Type: | Miniblock |
| Connection type: | Screw Clamp |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019953953 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$55.00 / 50Each
Typical price:$70.65 / Each
Quantity:
TE Connectivity 1SNA110106R2500 Dr1.5/4
Brand: TE Connectivity
Part Number: 1SNA110106R2500
Gray feed through terminal block with 4 mm spacing and 17.5 amp UL rated current with screw clamp connection
Additional Description: TEC -1SNA110106R2500 (N) DR1.5/4 Screw Clamp Terminal Blocks - Miniblocks - Grey 011010625 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Gray feed through terminal block with 4 mm spacing and 17.5 amp UL rated current with screw clamp connection
1SNA110106R2500 Application
For Miniblock application1SNA110106R2500 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA110106R2500 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2221790Part Number #1SNA110106R2500UNSPSC39121410UPC00662019953953
