1SNA110439R2200

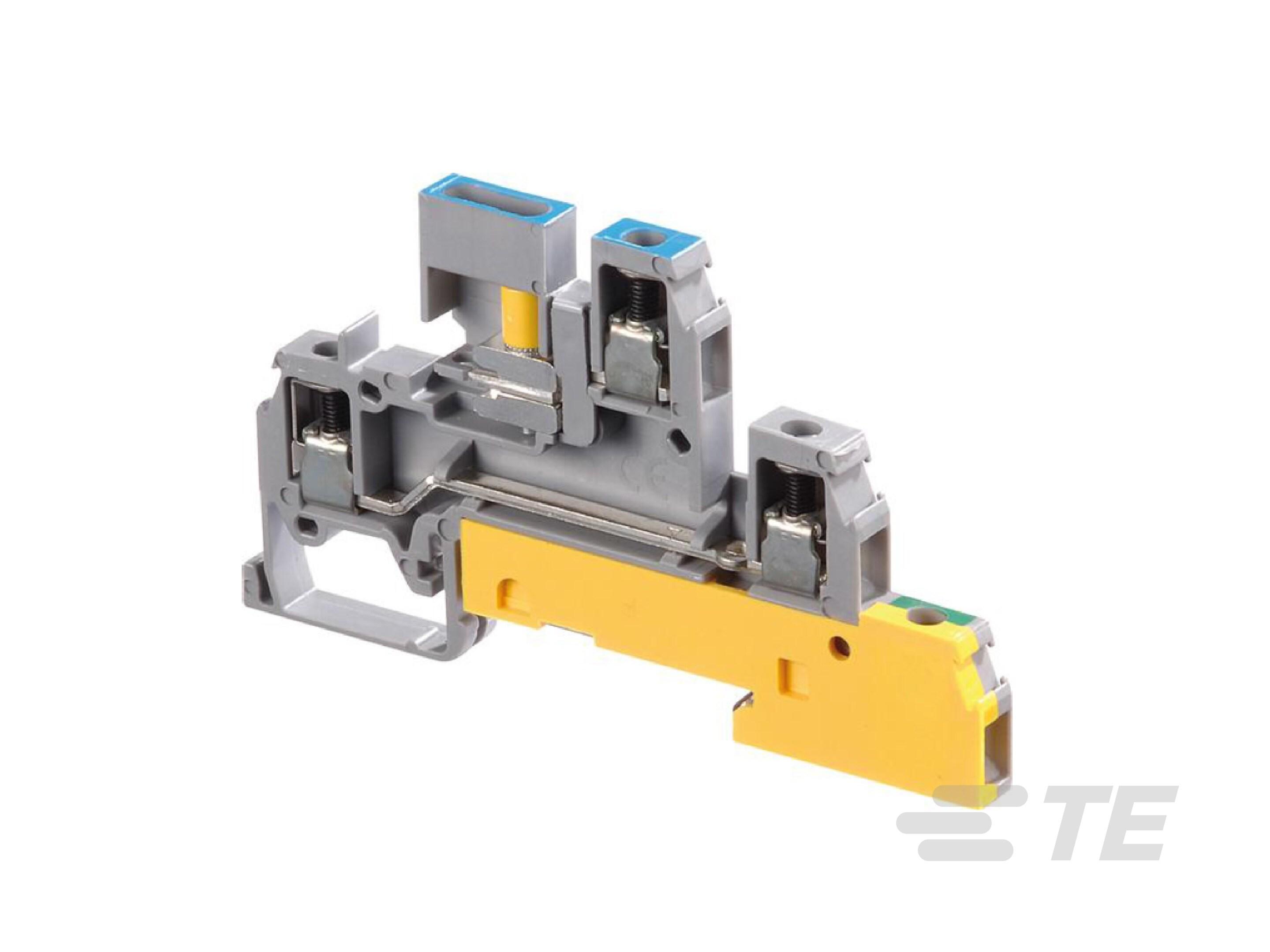

TE Connectivity 1SNA110439R2200 D4/6NTLP Screw Clamp Terminal Blocks - Installation - Grey
Part Number # 1SNA110439R2200
SKU # 2319739
TE Connectivity 1SNA110439R2200 Key Features
| Brand: | TE Connectivity |
|---|---|
| Part Number # : | 1SNA110439R2200 |
| SKU #: | 2319739 |
| Amperage Rating: | 30 A |
| Dimensions: | 87 mm H x 6 mm W x 44 mm L |
| Spacing: | 6 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Torque Rating: | 0.4 N-m |
| Type: | Multi-Position |
| Color: | Blue/Grey/Green-Yellow |
| Connection type: | Screw Clamp |
| Country of origin: | PL |
| Material: | Polyamide |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019954103 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
TE Connectivity 1SNA110439R2200 D4/6NTLP Screw Clamp Terminal Blocks - Installation - Grey
Brand: TE Connectivity
Part Number: 1SNA110439R2200
""D4/6.NTLP Screw Clamp Terminal Blocks - Installation - Grey, Blue, Green-Yellow,4mm2 RatedCrossSection, 6mm Spacing G32, TH 35-7.5, TH 35-15 Rail""
Additional Description: TEC -1SNA110439R2200 (N) D4/6.NTLP Screw Clamp Terminal Blocks - Installation - Grey, Blue, Green-Yellow NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: D4/6.NTLP Screw Clamp Terminal Blocks - Installation - Grey, Blue, Green-Yellow,4mm2 RatedCrossSection, 6mm Spacing G32, TH 35-7.5, TH 35-15 Rail
1SNA110439R2200 Application
For Installation application1SNA110439R2200 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA110439R2200 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2319739Part Number #1SNA110439R2200UNSPSC39121410UPC00662019954103
