Part Number # 1SNA115168R2300
SKU # 2325251
Image Disclaimers Message
1SNA115168R2300

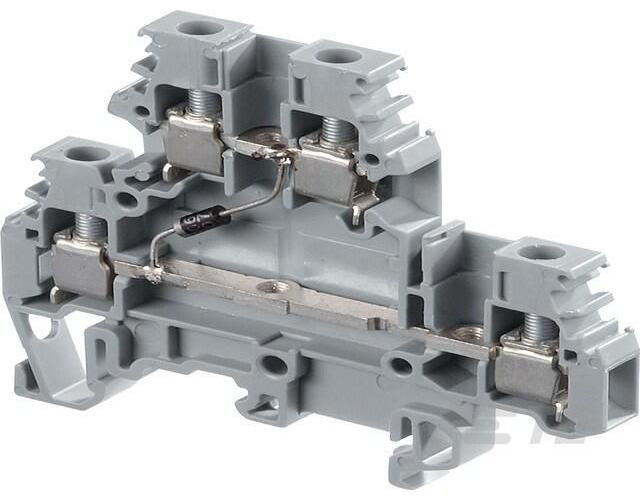

TE Connectivity 1SNA115168R2300 Gray electronic component holder terminal blocks
Part Number # 1SNA115168R2300
SKU # 2325251
$404.50 / 50Each
Typical price:$521.20 / Each
TE Connectivity 1SNA115168R2300 Key Features
| Brand: | TE Connectivity |
|---|---|
| Part Number # : | 1SNA115168R2300 |
| SKU #: | 2325251 |
| Amperage Rating: | 20 A |
| Dimensions: | 65.5 mm H x 6 mm W x 52 mm D |
| Spacing: | 6 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Type: | Module |
| Connection type: | Screw Clamp |
| Country of origin: | PL |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019956077 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$404.50 / 50Each
Typical price:$521.20 / Each
Quantity:
TE Connectivity 1SNA115168R2300 Gray electronic component holder terminal blocks
Brand: TE Connectivity
Part Number: 1SNA115168R2300
Gray electronic component holder terminal blocks, 25 Amps UL rated with a screw clamp connection that accepts 22-12 AWG wire
Additional Description: TEC -1SNA115168R2300 M4/6.DD Screw Clamp Terminal Blocks - Component holder - Grey 011516823
Catalog Description: Gray electronic component holder terminal blocks, 25 Amps UL rated with a screw clamp connection that accepts 22-12 AWG wire
1SNA115168R2300 Application
For Component holder application1SNA115168R2300 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115168R2300 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2325251Part Number #1SNA115168R2300UNSPSC39121410UPC00662019956077
