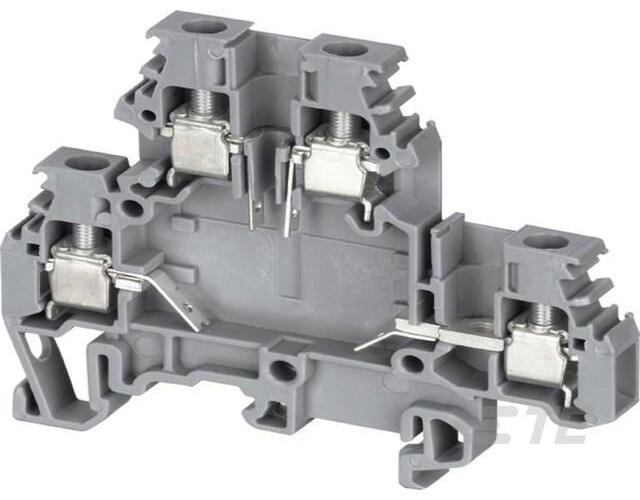

TE Connectivity 1SNA115185R0500 Fused Terminal Block
Image Disclaimers Message
TE Connectivity 1SNA115185R0500 Fused Terminal Block
TE Connectivity 1SNA115185R0500 Fused Terminal Block
Part #:1SNA115185R0500
SKU #: 2330309
Key Features
Part #:1SNA115185R0500
SKU #: 2330309
Brand: TE Connectivity
Amperage Rating: 26, 26 A
Dimensions: 6 mm W x 52 mm D x 65.5 mm H, 65.5 mm H x 6 mm W x 52 mm D
Series: SNA
Spacing: 6, 6 mm
Temperature Rating (Degrees F): -55 to 110, -55 to 110 deg C
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
TE Connectivity 1SNA115185R0500 Fused Terminal Block
ABB Fused Terminal Block, Component Holder, Series: SNA, 500 VAC, 26 A, 22 to 12 AWG Wire, 8.5 mm Wire Strip Length, Screw Clamp Terminal, 6 mm Spacing, 0.5 to 0.6 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Gray, 6 mm W x 52 mm D x 65.5 mm H Dimensions
Additional Description: TEC -1SNA115185R0500 M4/6.DE Screw Clamp Terminal Blocks 011518505
Catalog Description: Gray component holder terminal blocks, 20 Amps UL rated with a screw clamp connection that accepts 22-12 AWG wire
