M4/6.DE1.D1

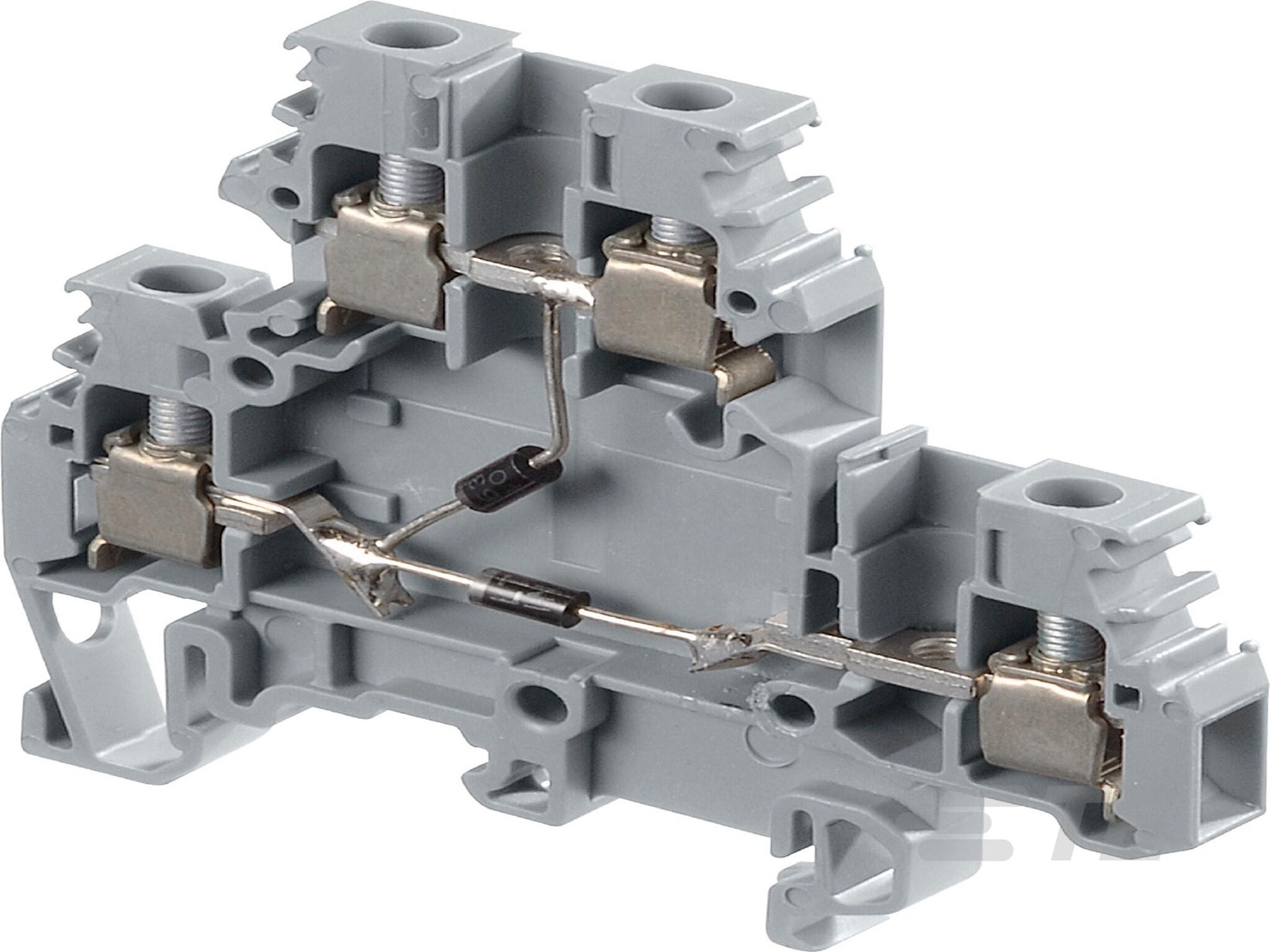

TE Connectivity 1SNA115591R0400 M4/6DE1D1 Screw Clamp Terminal Blocks - Component holder - Grey
Part Number # M4/6.DE1.D1
SKU # 2169632
TE Connectivity M4/6.DE1.D1 Key Features
| Brand: | TE Connectivity |
|---|---|
| Part Number # : | M4/6.DE1.D1 |
| SKU #: | 2169632 |
| Amperage Rating: | 20 A |
| Dimensions: | 65.5 mm H x 6 mm W x 52 mm D |
| Spacing: | 6 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Type: | Module |
| Color: | Grey |
| Connection type: | Screw Clamp |
| Country of origin: | PL |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019033556 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
TE Connectivity 1SNA115591R0400 M4/6DE1D1 Screw Clamp Terminal Blocks - Component holder - Grey
Brand: TE Connectivity
Part Number: M4/6.DE1.D1
M4/6.DE1.D1 Screw Clamp Terminal Blocks - Component holder - Grey,4mm2 RatedCrossSection, 6mm Spacing G32, TH 35-7.5, TH 35-15 Rail
Additional Description: TEC -1SNA115591R0400 (N) M4/6.DE1.D1 Screw Clamp Terminal Blocks - Component holder - Grey 011559104 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: M4/6.DE1.D1 Screw Clamp Terminal Blocks - Component holder - Grey,4mm2 RatedCrossSection, 6mm Spacing G32, TH 35-7.5, TH 35-15 Rail
M4/6.DE1.D1 Application
For Component holder applicationM4/6.DE1.D1 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
M4/6.DE1.D1 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2169632Part Number #M4/6.DE1.D1UNSPSC39121410UPC00662019033556
