Part Number # 1SNA146207R0200
SKU # 2349358
Image Disclaimers Message
1SNA146207R0200

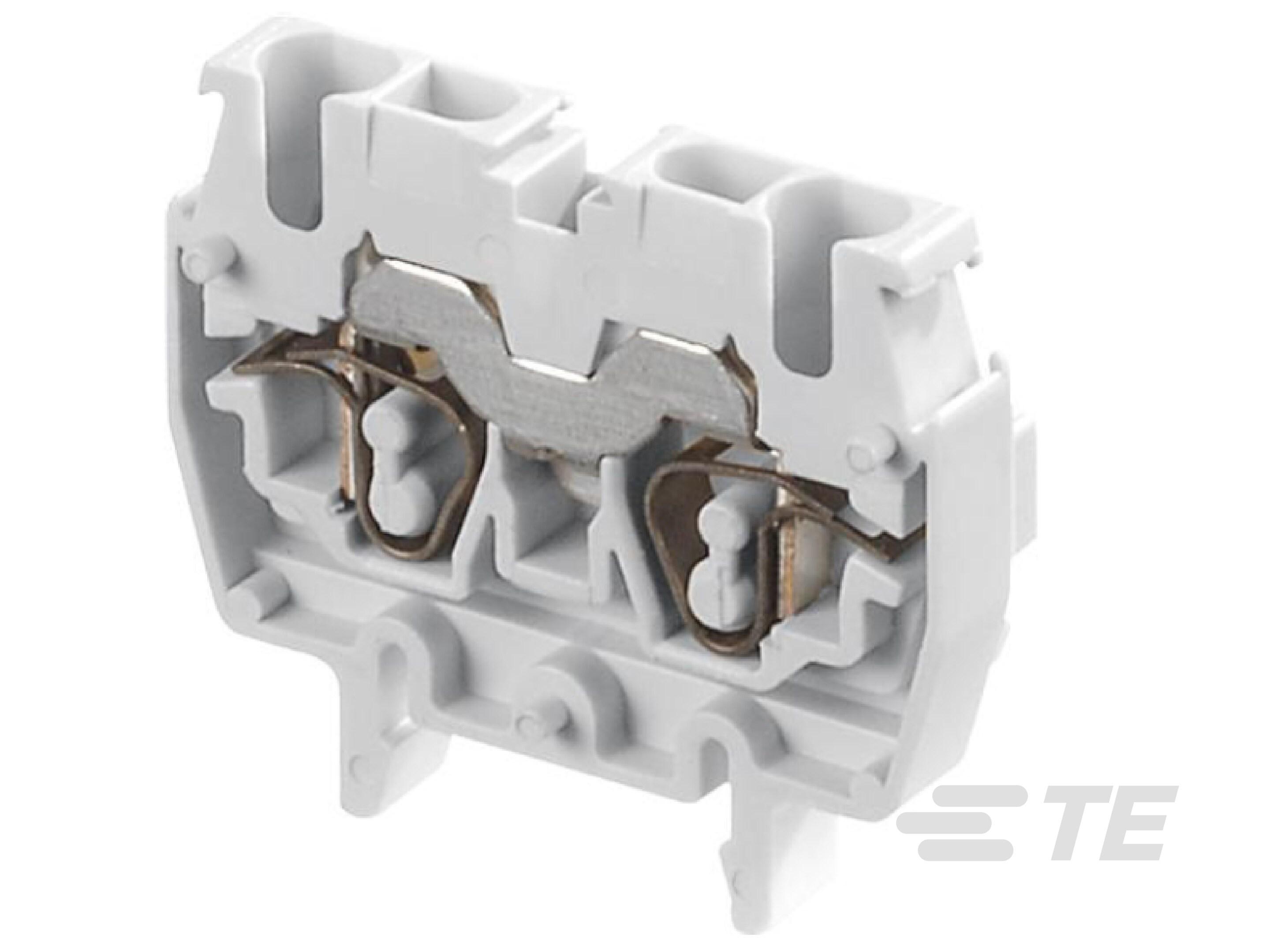

TE Connectivity 1SNA146207R0200 Connector
Part Number # 1SNA146207R0200
SKU # 2349358
$172.00 / 100Each
Typical price:$213.20 / Each
ENTRELEC 1SNA146207R0200 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA146207R0200 |
| SKU #: | 2349358 |
| Dimensions: | 33 mm H x 5 mm W x 24.5 mm D |
| Series: | SNA |
| Spacing: | 5 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Type: | Miniblock |
| Color: | Light Grey |
| Connection type: | Spring |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 03472591462074 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$172.00 / 100Each
Typical price:$213.20 / Each
Quantity:
TE Connectivity 1SNA146207R0200 Connector
Brand: ENTRELEC
Part Number: 1SNA146207R0200
Additional Description: TEC -1SNA146207R0200 (N) DR2.5/5.2L.Ex Spring Terminal Blocks 1SNA146207R0200 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Modular Terminal Blocks, Feed-Through, Screw Terminal Block, Gray, Product Spacing .236 in [6 mm], 2 Position, Insulation Displacement (IDC), Signal
1SNA146207R0200 Application
For Miniblock application1SNA146207R0200 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA146207R0200 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2349358Part Number #1SNA146207R0200UNSPSC39121410UPC03472591462074
