Part Number # 1SNA165114R1700
SKU # 1217735
Image Disclaimers Message

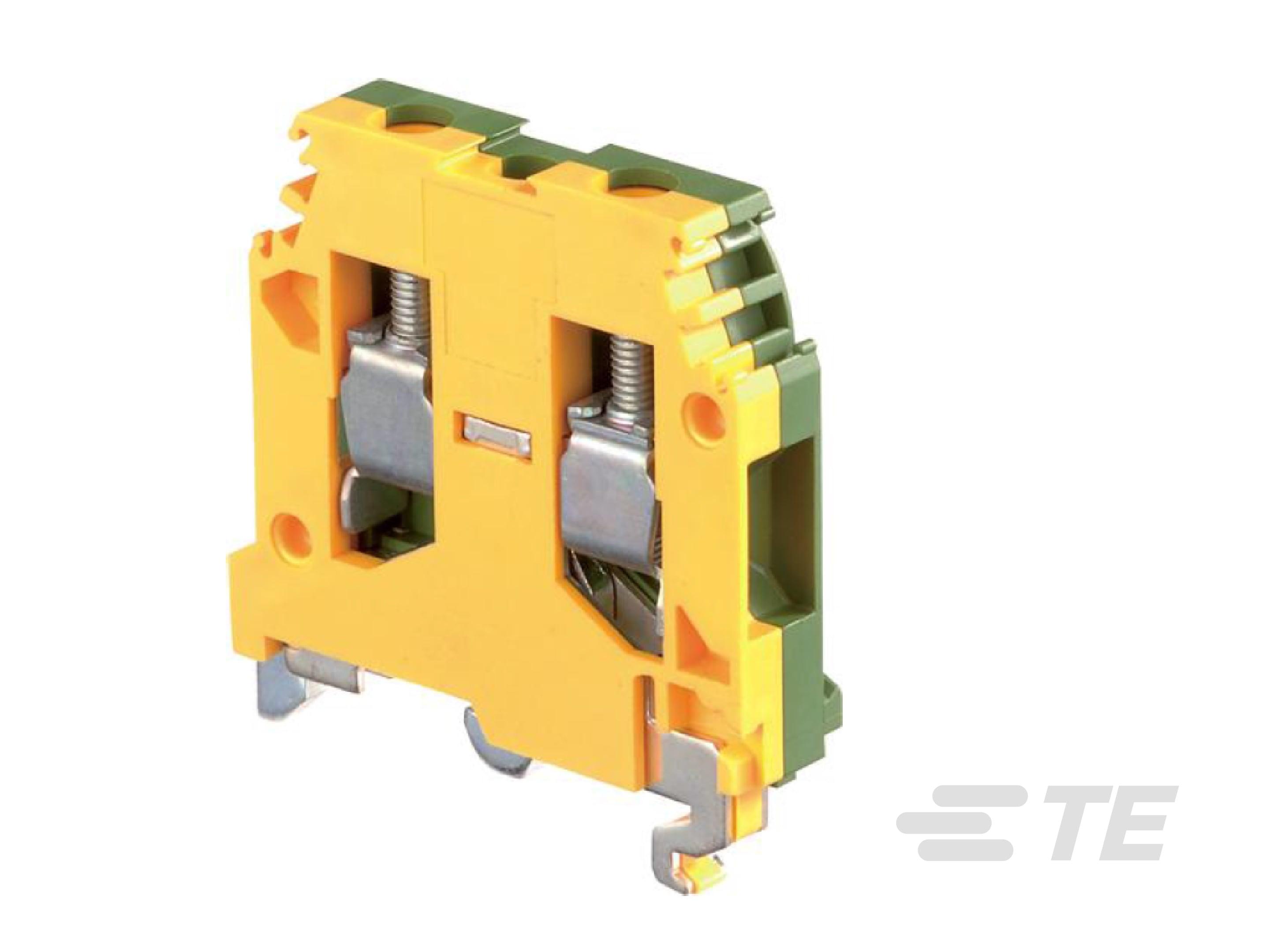

1SNA165114R1700
TE Connectivity 1SNA165114R1700 Te
Part Number # 1SNA165114R1700
SKU # 1217735
ENTRELEC 1SNA165114R1700 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA165114R1700 |
| SKU #: | 1217735 |
| Amperage Rating: | 55 A, 720 A |
| Dimensions: | 40.5 mm L x 8 mm W x 43.5 mm H, 43.5 mm H x 8 mm W x 40.5 mm L |
| Number of Poles: | 2 |
| Series: | SNA |
| Spacing: | 8, 8 mm |
| Temperature Rating (Degrees F): | -55 to 110, -55 to 110 deg C |
| Terminal Type: | Screw |
| Torque Rating: | 0.8 N-m, 0.8 to 1 N-m |
| Type: | 3-Position, M6/8.P |
| Wire Size: | 8, 8 AWG |
| Color: | Green, Green/Yellow |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121410 |
| UPC: | 00662019960210 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
TE Connectivity 1SNA165114R1700 Te
Brand: ENTRELEC
Part Number: 1SNA165114R1700
TE, 1SNA165114R1700, Terminal Block, M6/8.P, Series: SNA, 720 A, 2 Pole, 8 AWG Wire, 12 mm Wire Strip Length, 8 mm Spacing, 0.8 N-m Torque, DIN Rail Mounting, Screw Clamp Connection, -55 to 110 deg C, Polyamide, Green, 43.5 mm H x 8 mm W x 40.5 mm L Dimensions
Additional Description: TEC -1SNA165114R1700 M6/8.P Screw Clamp Terminal Blocks - Ground - Green-Yellow 016511417
Catalog Description: - Reliable electrical and mechanical contact with the rail, - Flexibility: snap onto symmetrical and asymmetrical rails.
1SNA165114R1700 Application
For applications ranging from standard distribution and control panels, to specialized applications in key industries such as traction, energy, maritime, explosive atmospheres and material handling1SNA165114R1700 Item Features
- Top entry wire connection
- Touch-safe IP20 protection
- Flexible 1x 0.5 to 6 sq-mm, rigid 1x 0.5 to 10 sq-mm connecting capacity main circuit
- G32 (32 x 15 mm mounting rail) according to IEC 60715 - TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715 - TH35-15 (35 x 15 mm mounting rail) according to IEC 60715 DIN rail mounting
- 3 deg pollution
- 4.5 mm recommended screw driver
- V0 flammability according to UL94
- 6 sq-mm rated cross section
- A5 gauge type
- For 1 sec 720 A rated short time withstand current
- 0.5 to 10 sq-mm solid, 0.5 to 6 sq-mm stranded rated IEC wire range, 22 to 8 AWG UL wire range
1SNA165114R1700 Standards
RoHS Compliant|CE Certified|CSA Certified|EAC Certified|cUL Listed|UL94 V-0 Flammability RatingSKU #1217735Part Number #1SNA165114R1700UNSPSC39121410UPC00662019960210
