Part Number # 1SNA199044R2700
SKU # 2155676
Image Disclaimers Message
1SNA199044R2700

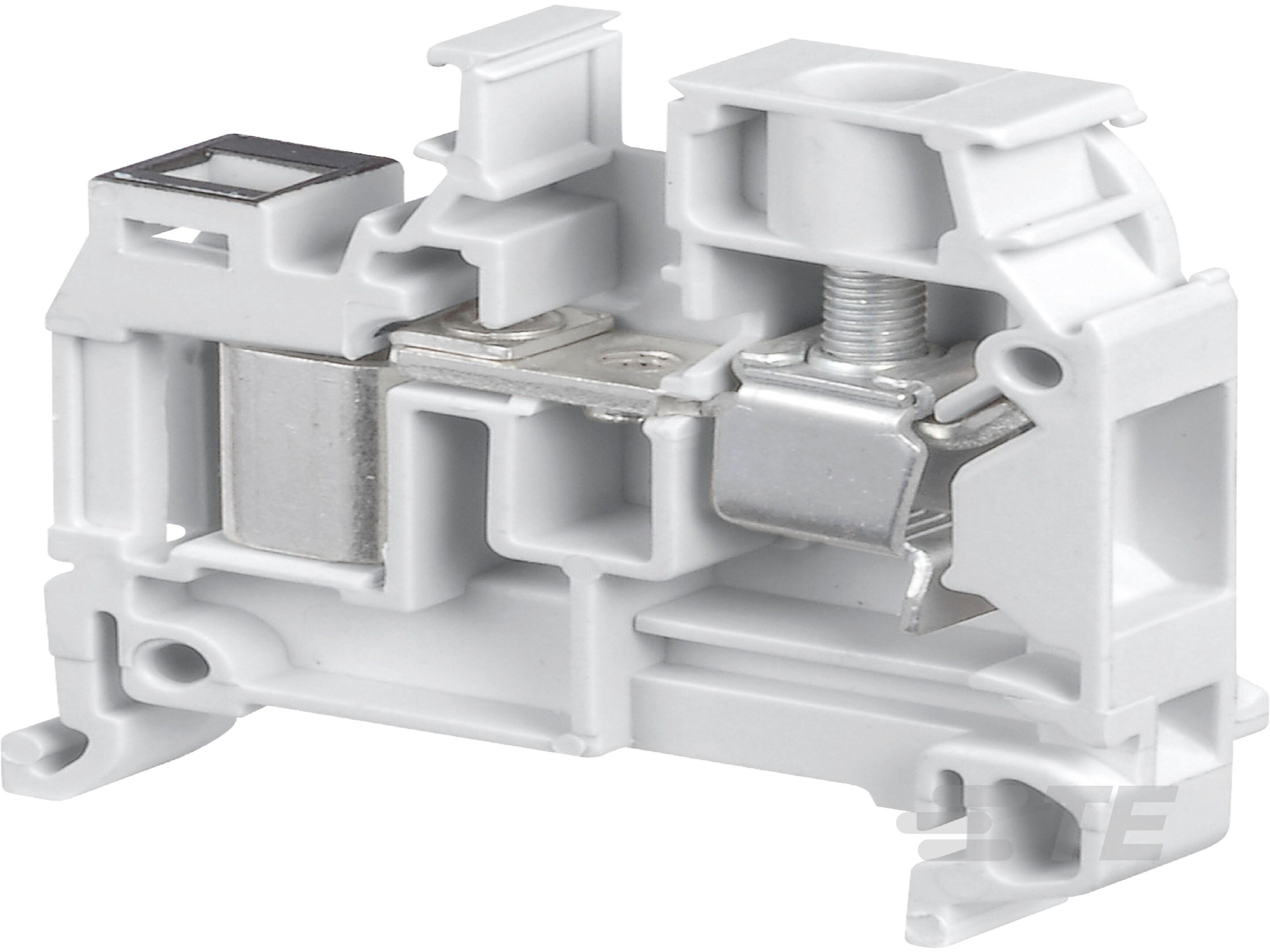

TE Connectivity 1SNA199044R2700 Blue
Part Number # 1SNA199044R2700
SKU # 2155676
TE Connectivity 1SNA199044R2700 Key Features
| Brand: | TE Connectivity |
|---|---|
| Part Number # : | 1SNA199044R2700 |
| SKU #: | 2155676 |
| Amperage Rating: | 24 A |
| Dimensions: | 45 mm H x 8 mm W x 41 mm D |
| Series: | SNA |
| Spacing: | 8 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Type: | Feed-Through |
| Color: | Blue |
| Connection type: | Screw Clamp |
| Country of origin: | PL |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019964621 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
TE Connectivity 1SNA199044R2700 Blue
Brand: TE Connectivity
Part Number: 1SNA199044R2700
Blue, feed through terminal block with 8 mm spacing, 25 Amp rated UL current with both insulation displacement and scew camp connections that accept 16-14 AWG wire range for IDC and 22 - 8 AWG wire range for screw clamp connection
Additional Description: TEC -1SNA199044R2700 (N) D6/8.N.ADO IDC Terminal Blocks - Feed-through ADO - screw clamp - Blue NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Blue, feed through terminal block with 8 mm spacing, 25 Amp rated UL current with both insulation displacement and scew camp connections that accept 16-14 AWG wire range for IDC and 22 - 8 AWG wire range for screw clamp connection
1SNA199044R2700 Application
For Feed-through application1SNA199044R2700 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA199044R2700 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2155676Part Number #1SNA199044R2700UNSPSC39121410UPC00662019964621
