Part Number # 1SNA199050R0100
SKU # 2222008
Image Disclaimers Message
1SNA199050R0100

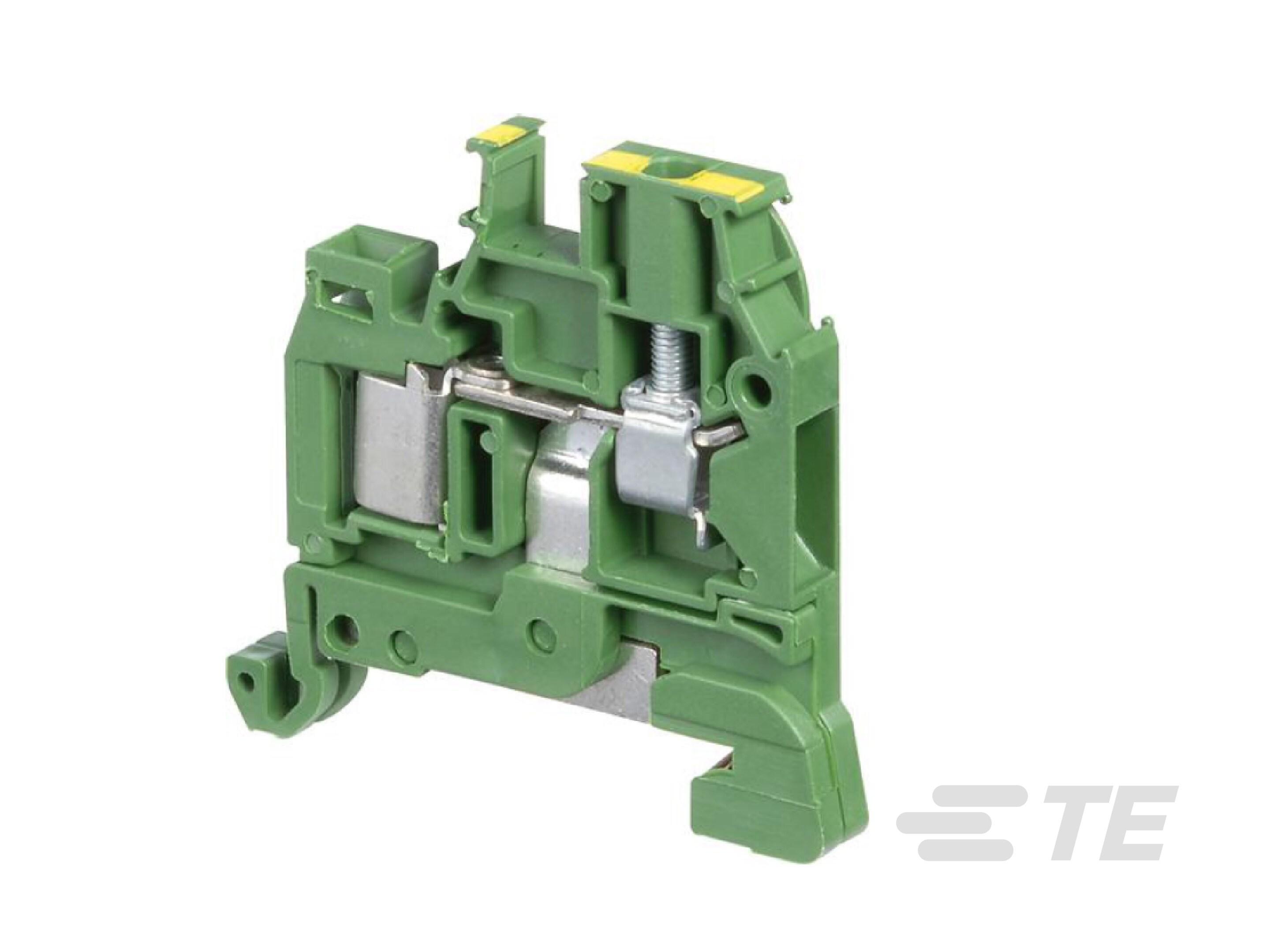

TE Connectivity 1SNA199050R0100 Green and yellow
Part Number # 1SNA199050R0100
SKU # 2222008
TE Connectivity 1SNA199050R0100 Key Features
| Brand: | TE Connectivity |
|---|---|
| Part Number # : | 1SNA199050R0100 |
| SKU #: | 2222008 |
| Amperage Rating: | 180 A |
| Dimensions: | 50 mm H x 6 mm W x 41 mm L |
| Series: | D4/6-P-ADO |
| Spacing: | 6 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Torque Rating: | 0.5 N-m |
| Type: | Ground |
| Color: | Green/Yellow |
| Connection type: | Screw Clamp |
| Country of origin: | PL |
| Material: | Polyamide |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019964652 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
TE Connectivity 1SNA199050R0100 Green and yellow
Brand: TE Connectivity
Part Number: 1SNA199050R0100
Green and yellow, ground block with rail contact with 6 mm spacing, Amp rated UL current with both insulation displacement and screw clamp connections that accept 22-16 AWG wire range for IDC and 22-10 AWG wire range for screw clamp connection
Additional Description: TEC -1SNA199050R0100 D4/6.P.ADO IDC Terminal Blocks - Ground ADO - screw clamp - Green-Yellow 019905001
Catalog Description: Green and yellow, ground block with rail contact with 6 mm spacing, Amp rated UL current with both insulation displacement and screw clamp connections that accept 22-16 AWG wire range for IDC and 22-10 AWG wire range for screw clamp connection
1SNA199050R0100 Application
For Ground application1SNA199050R0100 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA199050R0100 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2222008Part Number #1SNA199050R0100UNSPSC39121410UPC00662019964652
