Part Number # 1SNA290001R0400
SKU # 2230724
Image Disclaimers Message
1SNA290001R0400

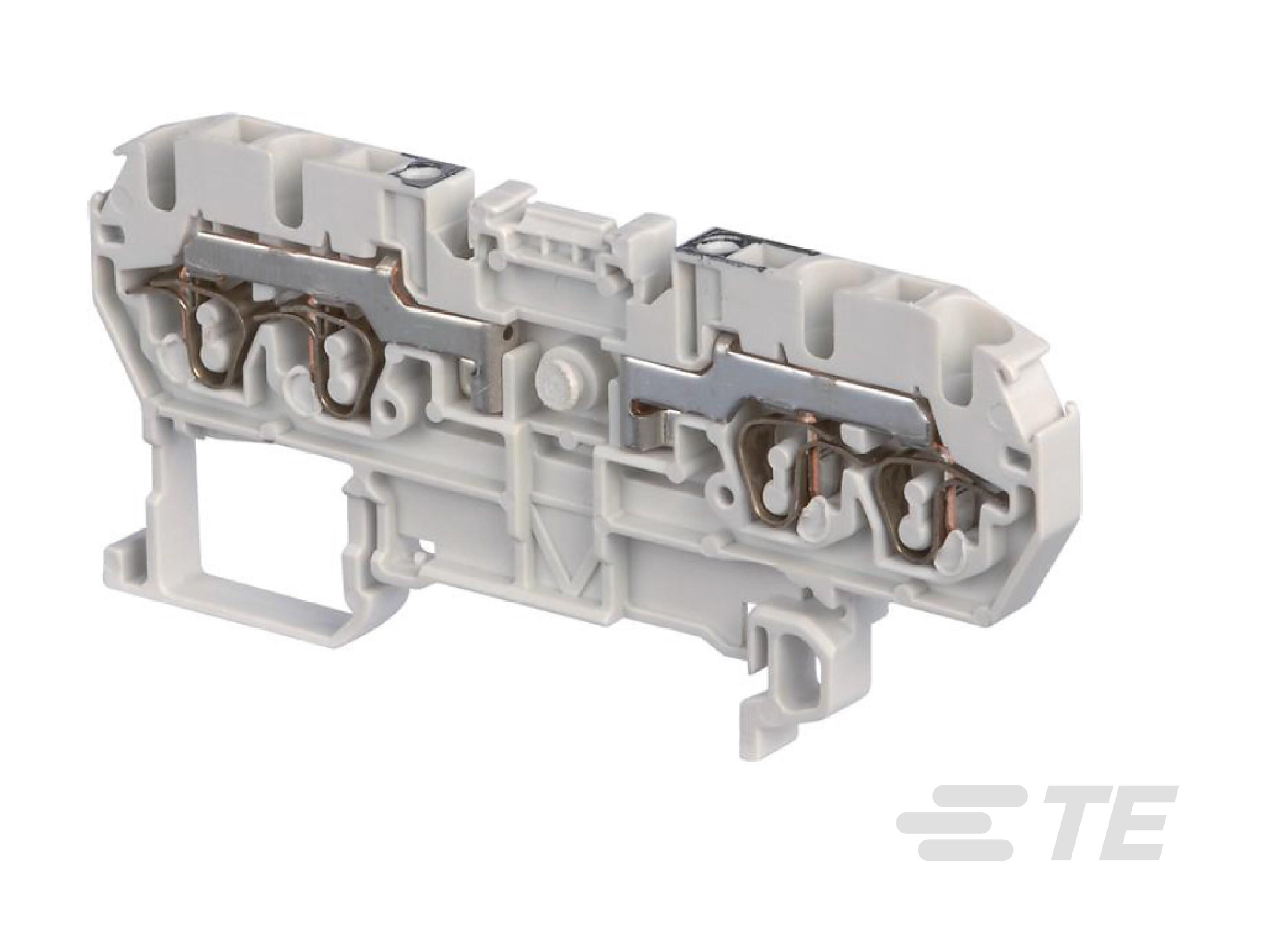

TE Connectivity 1SNA290001R0400 D25/52L2L Spring Terminal Blocks - Feed-through - Grey
Part Number # 1SNA290001R0400
SKU # 2230724
TE Connectivity 1SNA290001R0400 Key Features
| Brand: | TE Connectivity |
|---|---|
| Part Number # : | 1SNA290001R0400 |
| SKU #: | 2230724 |
| Amperage Rating: | 24 A |
| Dimensions: | 80 mm H x 5 mm W x 30.5 mm D |
| Series: | SNA |
| Spacing: | 5 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Type: | Feed-Through |
| Color: | Grey |
| Connection type: | Spring |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019969855 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
TE Connectivity 1SNA290001R0400 D25/52L2L Spring Terminal Blocks - Feed-through - Grey
Brand: TE Connectivity
Part Number: 1SNA290001R0400
""D2.5/5.2L.2L Spring Terminal Blocks - Feed-through - Grey,2.5mm2 RatedCrossSection, 5mm Spacing TH 35-7.5, TH 35-15 Rail""
Additional Description: TEC -1SNA290001R0400 (N) D2.5/5.2L.2L Spring Terminal Blocks - 2 feed-through with 4 connections - Grey NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: D2.5/5.2L.2L Spring Terminal Blocks - Feed-through - Grey,2.5mm2 RatedCrossSection, 5mm Spacing TH 35-7.5, TH 35-15 Rail
1SNA290001R0400 Application
For Feed-through application1SNA290001R0400 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA290001R0400 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2230724Part Number #1SNA290001R0400UNSPSC39121410UPC00662019969855
