Part Number # 1SNA290203R1300
SKU # 2326981
Image Disclaimers Message
1SNA290203R1300

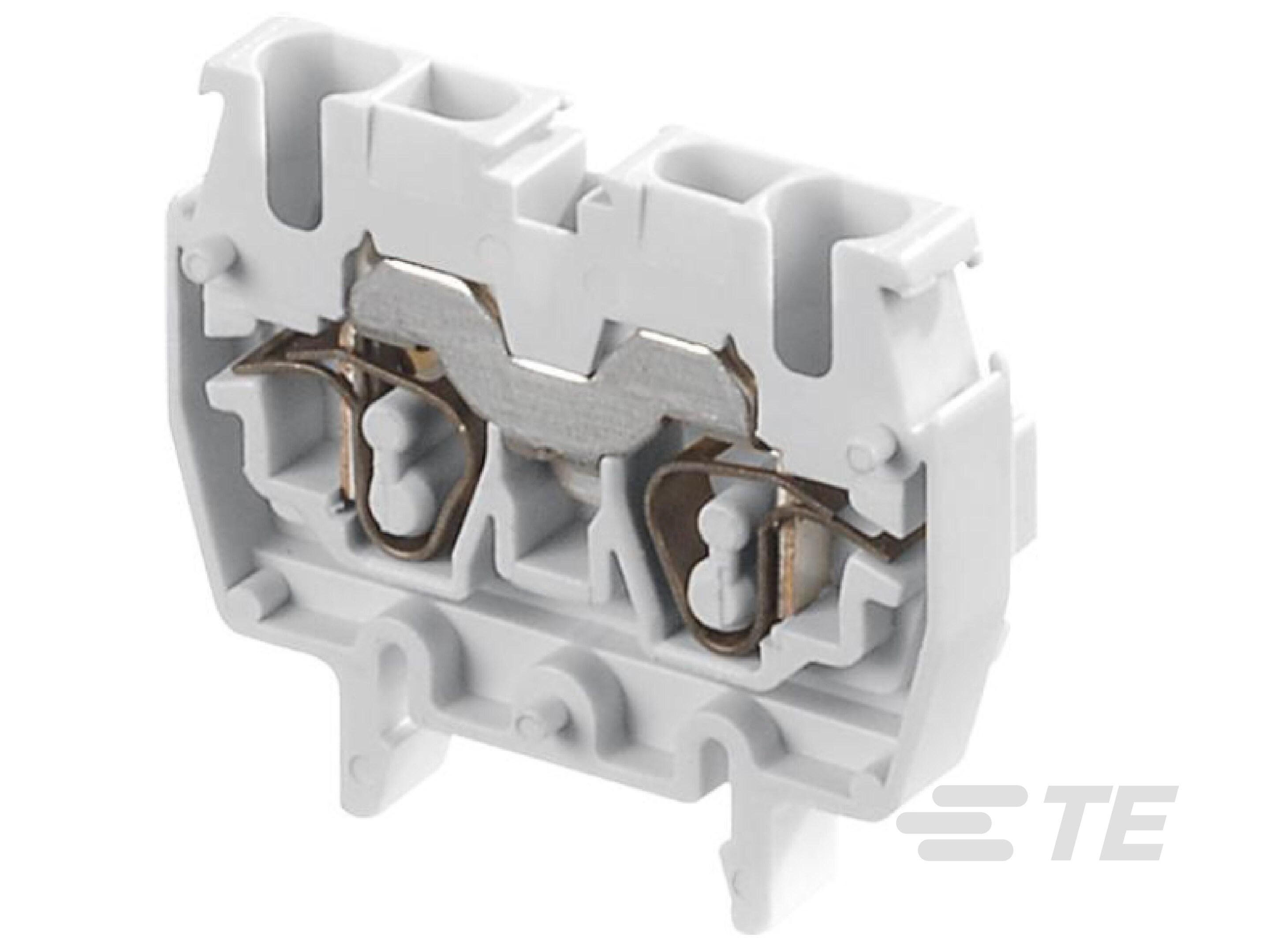

TE Connectivity 1SNA290203R1300 Dr2 5/5.2L Blue
Part Number # 1SNA290203R1300
SKU # 2326981
$109.00 / 100Each
Typical price:$135.70 / Each
TE Connectivity 1SNA290203R1300 Key Features
| Brand: | TE Connectivity |
|---|---|
| Part Number # : | 1SNA290203R1300 |
| SKU #: | 2326981 |
| Amperage Rating: | 24 A |
| Dimensions: | 33 mm H x 5 mm W x 24.5 mm D |
| Series: | SNA |
| Spacing: | 5 mm |
| Temperature Rating (Degrees F): | -55 to 110 deg C |
| Type: | Miniblock |
| Color: | Blue |
| Connection type: | Spring |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019970325 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$109.00 / 100Each
Typical price:$135.70 / Each
Quantity:
TE Connectivity 1SNA290203R1300 Dr2 5/5.2L Blue
Brand: TE Connectivity
Part Number: 1SNA290203R1300
Blue miniblock terminal block with 5mm spacing and 15 amp UL rated current with spring clamp connection
Additional Description: TEC -1SNA290203R1300 (N) DR2.5/5.N.2L Spring Terminal Blocks - Miniblocks - Blue 029020313 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Blue miniblock terminal block with 5mm spacing and 15 amp UL rated current with spring clamp connection
1SNA290203R1300 Application
For Miniblock application1SNA290203R1300 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA290203R1300 Standards
EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|Solder Process Capability|EU REACH Regulation (EC) No. 1907/2006SKU #2326981Part Number #1SNA290203R1300UNSPSC39121410UPC00662019970325
