Part Number # 1SNL340010R0000
SKU # 2320391
1SNL340010R0000

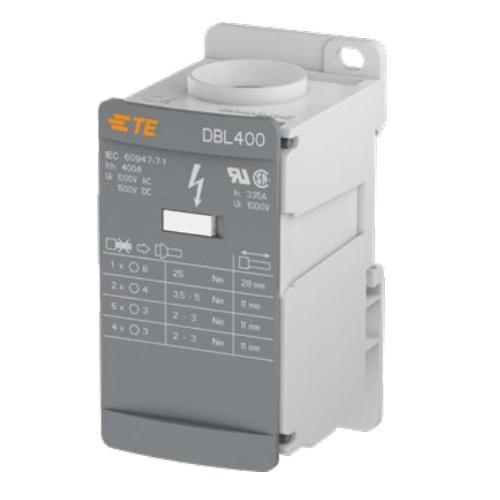

TE Connectivity 1SNL340010R0000 Te Power Distribution Block
Part Number # 1SNL340010R0000
SKU # 2320391
ENTRELEC 1SNL340010R0000 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNL340010R0000 |
| SKU #: | 2320391 |
| Amperage Rating: | 400 A |
| Dimensions: | 1.81 in W x 2.42 in D x 3.78 in H |
| Number of Poles: | 1 |
| Series: | DBL400 |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Feed-Through |
| Wire Size: | 3/0 to 300 kcmil/14 to 4 AWG/14 to 6 AWG/14 to 8 AWG kcmil |
| Country of origin: | IN |
| Material: | Polyamide |
| Manufacturer Name: | TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 03472599856547 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
TE Connectivity 1SNL340010R0000 Te Power Distribution Block
Brand: ENTRELEC
Part Number: 1SNL340010R0000
TE Power Distribution Block, Feed-Through, Series: DBL400, 1000 V, 400 A, 1 Pole, Primary Connections/Pole: 1, Secondary Connection/Pole: 11, 3/0 to 300 kcmil/14 to 4 AWG/14 to 6 AWG/14 to 8 AWG Wire, 100 kA Short Circuit, Polyamide, Gray, 1.81 in W x 2.42 in D x 3.78 in H Dimensions
Additional Description: TEC -1SNL340010R0000 DBL400 Screw Clamp Power Distribution Blocks 1SNL340010R0000
Catalog Description: Power Distribution Blocks, Single Pole, 1 Pole, 335 A Current Rating (UL), 12 Position, Wire & Cable, Power, DIN Rail, -55 – 110 °C [-67 – 230 °F]
1SNL340010R0000 Item Features
- Three configurations - distribute unipolar and multi-polar power lines or combine several inputs
- Mount it on din rail or plate and save up to 50% rail space compared to conventional copper bars
- Reduce the assembly time by 80% by avoiding to use fastening and isolating components
- Easy identification with the reversible cover and delivered pre-printed markers L1, L2, L3, N, PE, + and -
1SNL340010R0000 Standards
BV Certified|CE Certified|CSA Certified|EAC Certified|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|IEC 60529/60715/60947-1|RoHS Compliant|UL 94 V0|UL RecognizedSKU #2320391Part Number #1SNL340010R0000UNSPSC39121410UPC03472599856547
Image provided may only be a representation of final product and may include optional equipment
