9012GAR4

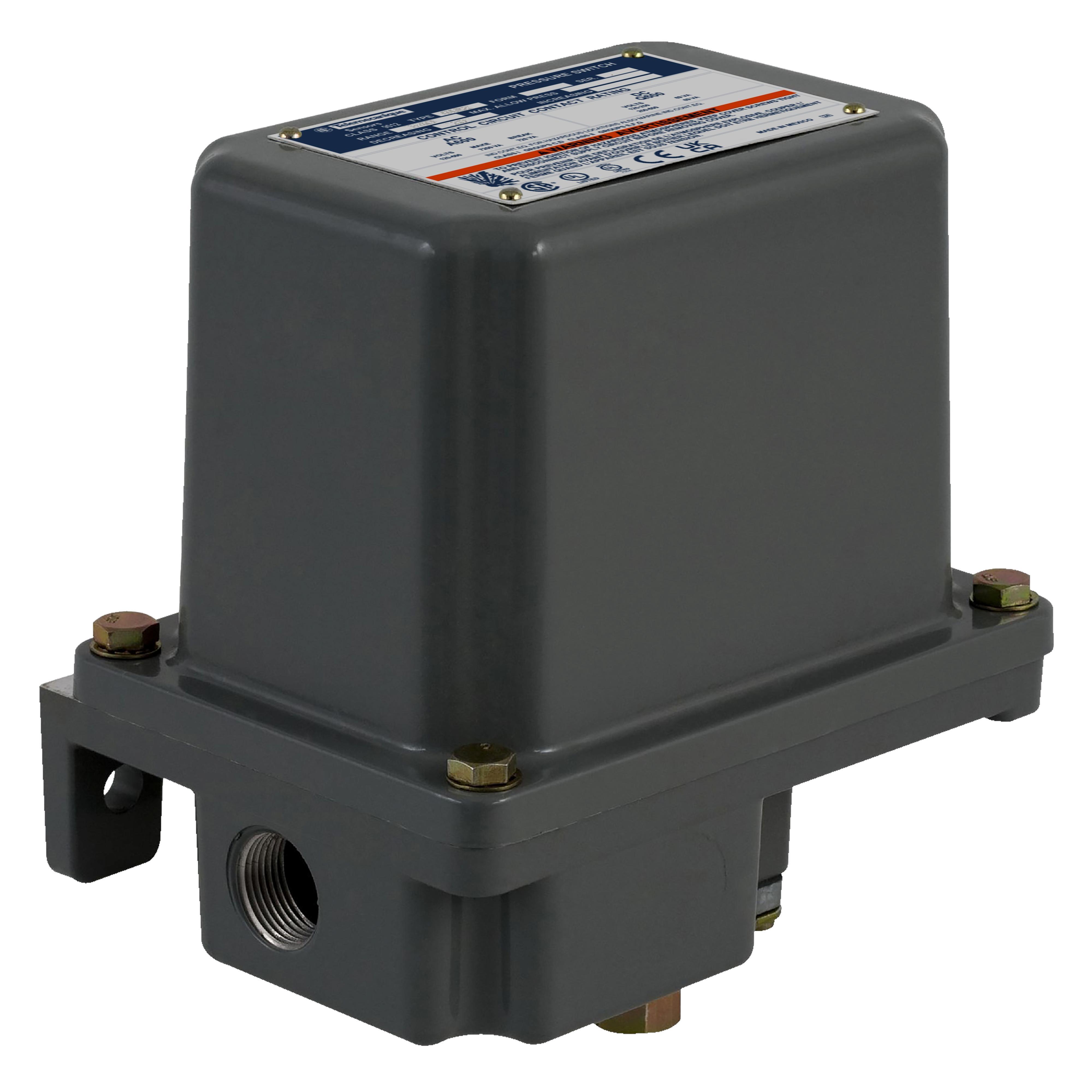

Telemecanique 9012GAR4 Electromechanical Pressure Switch
Part Number # 9012GAR4
SKU # 2440777
Telemecanique 9012GAR4 Key Features
| Brand: | Telemecanique |
|---|---|
| Part Number # : | 9012GAR4 |
| SKU #: | 2440777 |
| Connection Material: | Zinc Plated Steel |
| Contact Configuration: | SPDT (Isolated) |
| Differential: | 4.5 to 15 psi |
| Enclosure Type: | NEMA 7/9 |
| Maximum Pressure: | 240 psi |
| Operating Cycles: | 120 cpm |
| Pressure Rating: | 1.5 to 75 psi |
| Series: | 9012G |
| Temperature Rating (Degrees F): | -10 to 185 deg F |
| Type: | Single Stage Low Pressure |
| Connection type: | Screw Clamp |
| Country of origin: | MX |
| Housing material: | Cast Aluminum |
| Manufacturer Name: | YAGEO Corporation |
| UNSPSC: | 39122210 |
| UPC: | 00785901047483 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Telemecanique 9012GAR4 Electromechanical Pressure Switch
Brand: Telemecanique
Part Number: 9012GAR4
Square D™ Electromechanical Pressure Switch, Single Stage Low Pressure, Series: 9012G, 1.5 to 75 psi, 4.5 to 15 psi Differential, 240 psi Maximum, SPDT (Isolated), 120 cpm Operating Cycles, -10 to 185 deg F, Screw Clamp, Zinc Plated Steel Connection, Nitrile Diaphragm, Cast Aluminum Housing, NEMA 7/9
Additional Description: TELE-9012GAR4 (N) PRESSURE SWITCH 480VAC 10AMP G +OPTIONS +Options NON-CANCELABLE, NON-RETURNABLE
Catalog Description: This product is part of the Nema Pressure Switches range, an offer of electromechanical pressure switches. This electromechanical pressure switch has 1 NC and 1 NO, SPDT-DB (single pole double throw, double break), form Z, snap action contacts. It has an adjustable differential scale for internal settings between 1.5psig to 75psig. The pressure switch with an approximate adjustable differential at mid range of 31.03kPa to 103.42kPa and a maximum pressure of 240psi. It is furnished with screw clamp terminals for electrical connection and 1/4-18 NPTF for fluid connection. This switch has a diaphragm actuator which can be operated from any position and regulation of 2 thresholds. It is a NEMA 7/9 rated product. The enclosure is made of cast aluminum. Its dimensions are 181.1mm (width) x 135.64mm (depth) x 182.88mm (height). It weighs 8.39kg. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, molding presses and inject
9012GAR4 Application
Industrial, Pressure control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical9012GAR4 Item Features
- 9012G industrial pressure switches control circuit rated for pneumatic and hydraulic systems
- Rugged, robust construction provides a long life and provides years of uninterrupted, worry-free service
- Drift proof cut-in and cut-out settings
- Has visible vertical contacts, easy to inspect without removal
- An extra strong frame that resists distortion when mounting the switch to a compressor
- Designed for the direct control of motors in pump and compressor applications
- For use in sensitive pressure control application
- 1/4-18 NPTF pressure
- +/- 2.5 % full scale adjustable differential at mid range
- Adjustable differential
- 1/2 in NPT conduit entrance
9012GAR4 Standards
ECCN: EAR99|CE Certified|CSA C22.2 No 14/LR26817 Class 3218 02|IEC 68-2-6/58-2-27|REACH Compliant|RoHS Compliant|UL 508/698/E12443 CCN NOWT|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2440777Part Number #9012GAR4UNSPSC39122210UPC00785901047483
