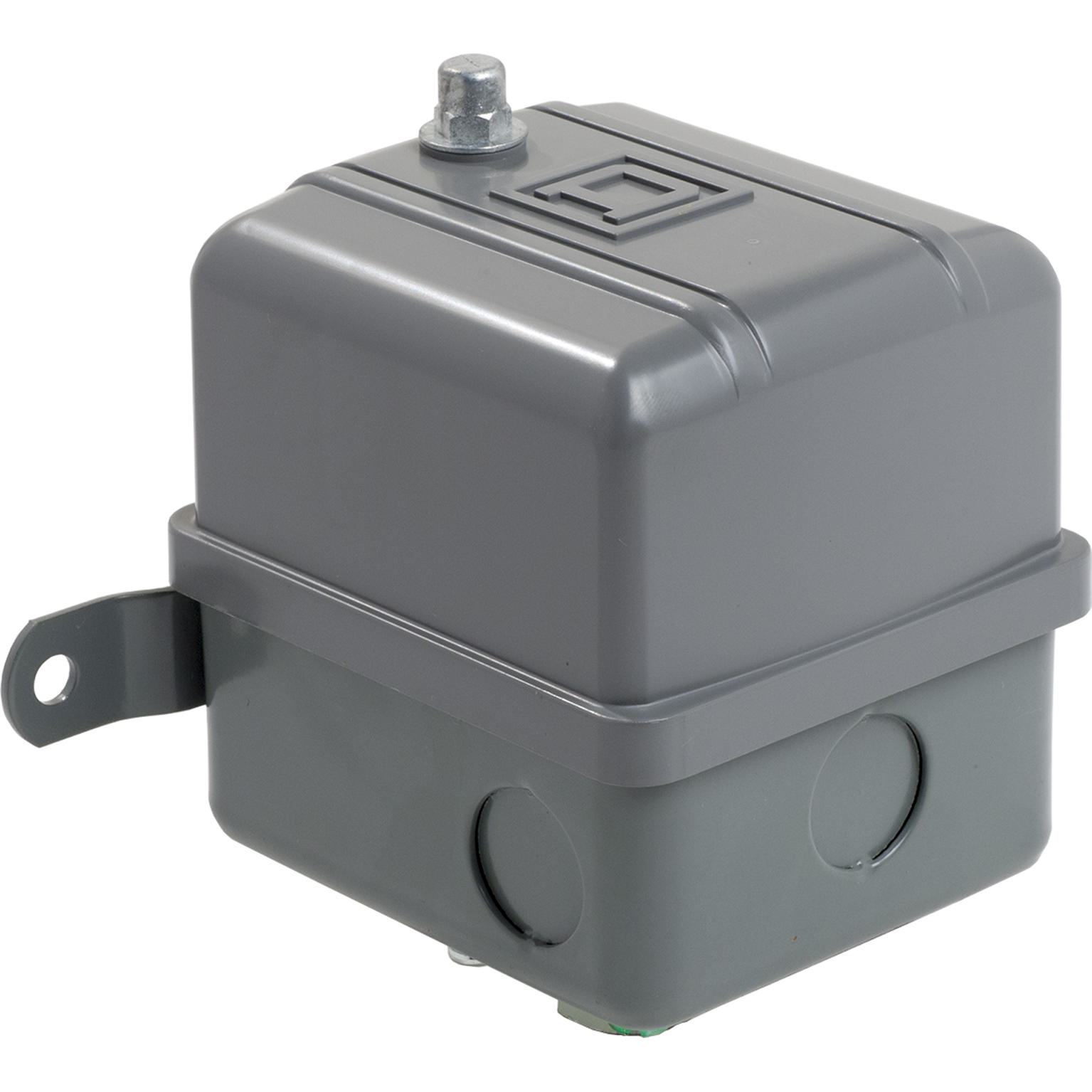

Telemecanique 9013GHG5S2J62X Pressure Switch
Part Number # 9013GHG5S2J62X
SKU # 2428479
Telemecanique 9013GHG5S2J62X Key Features
| Brand: | Telemecanique |
|---|---|
| Part Number # : | 9013GHG5S2J62X |
| SKU #: | 2428479 |
| Connection Material: | Zinc Plated Steel Flange |
| Contact Configuration: | DPST |
| Dimensions: | 3.44 in W x 3.68 in D x 5.72 in H |
| Enclosure Type: | IP20/NEMA 1 |
| Maximum Pressure: | 300 psig |
| Pressure Rating: | 32 to 215 psi |
| Series: | 9013 |
| Type: | Type G |
| Connection type: | Screw Clamp |
| Country of origin: | MX |
| Manufacturer Name: | YAGEO Corporation |
| UNSPSC: | 39122210 |
| UPC: | 00785901774983 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Telemecanique 9013GHG5S2J62X Pressure Switch
Brand: Telemecanique
Part Number: 9013GHG5S2J62X
Square D™ Pumptrol™ Electromechanical Pressure Switch, Type G, Series: 9013, 32 to 215 psi Pressure, 300 psig Maximum, DPST Contact Configuration, Screw Clamp Connection, Zinc Plated Steel Flange Connection, Nitrile Diaphragm, IP20/NEMA 1 Enclosure, 3.44 in W x 3.68 in D x 5.72 in H Dimensions
Additional Description: TELE-9013GHG5S2J62X (N) PRESSURE SWITCH 480VAC 10A G SPECIAL 480 VAC 10 A g special NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Telemecanique Sensors Pumptrol, pressure switch 480 VAC 10 A g special
9013GHG5S2J62X Application
Industrial, Pressure control or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centers, complex and special machines, HVAC, automotive, food and beverage, healthcare facilities, pharmaceutical and Control electrically driven water pumps and air compressors9013GHG5S2J62X Item Features
- 9013G power pressure switches rated for the direct control of motors in pump and compressor applications
- Rugged, robust construction provides a long life and provides years of uninterrupted, worry-free service
- Drift proof cut-in and cut-out settings
- Has visible vertical contacts, easy to inspect without removal
- An extra strong frame that resists distortion when mounting the switch to a compressor
- Designed for the direct control of motors in pump and compressor applications
- 1/4 in NPT External pressure
- 140 to 175 psi decreasing pressure
- 2-way pressure release value (not compatible with form E) available on GHB, GMG, GSB, GHG, GSG, GHR, GHW, GSR, GSW
9013GHG5S2J62X Standards
ECCN EAR99|CSA Certified|REACH Compliant|UL File E12158 CCN NKPZ|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2428479Part Number #9013GHG5S2J62XUNSPSC39122210UPC00785901774983
