Part Number # SM656A33254FP
SKU # 2405277
Image Disclaimers Message
Brand: Telemecanique
SM656A33254FP

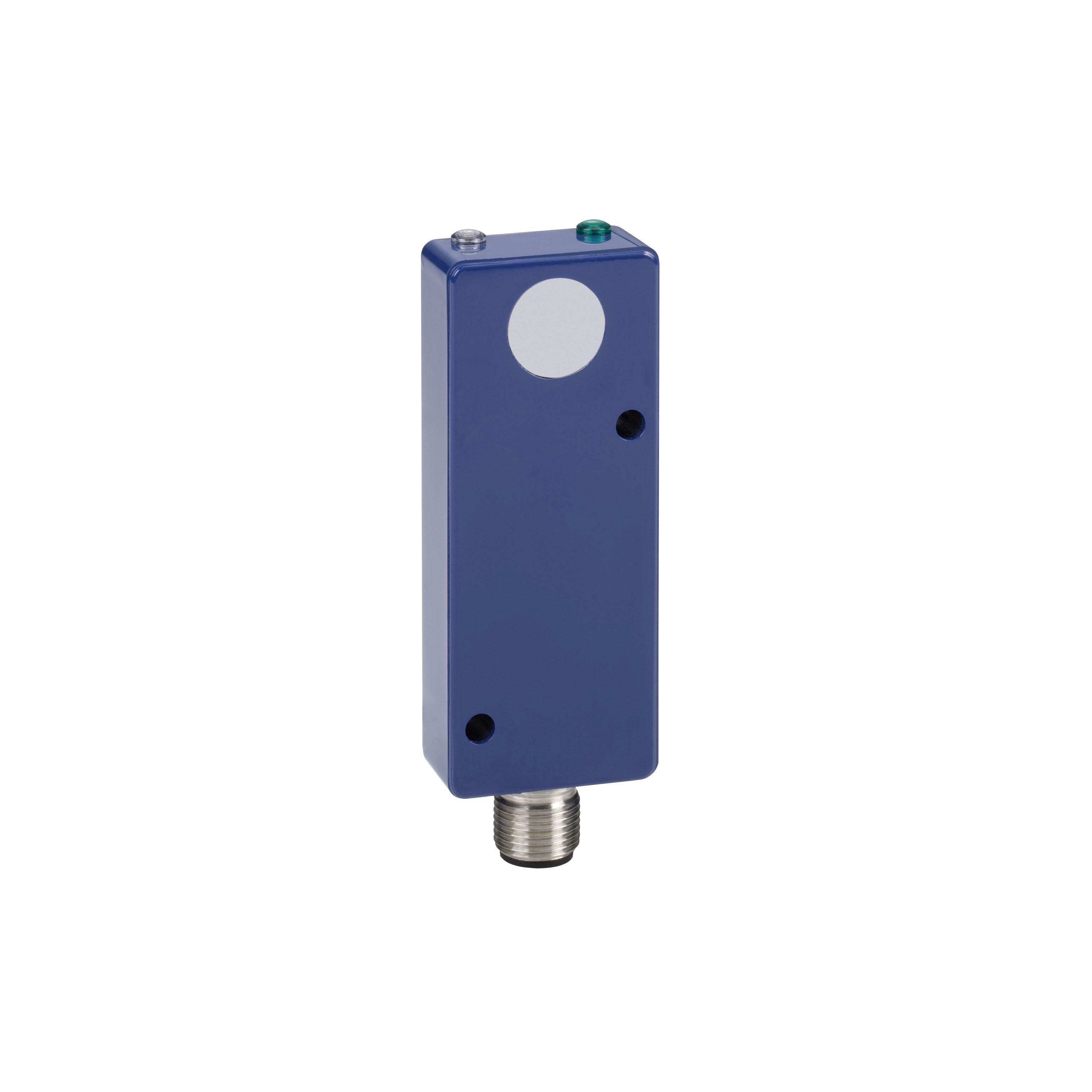

Telemecanique Telemecanique Ultrasonic Proximity Sensor, Flat Form Subcompact Fixed, Series: Superprox 600, Ultrasonic Sensing Method, 3 in Sensing Distance, 25.4 to 76.2 mm Measuring, Analog Output, 10 to 28/12 to 24 VDC, 500 kHz Frequency Response, 4-Pin M12 Male Connection, 0.5 ms Response, 84.32 mm L x 30 mm W x 16.25 mm D Size, NEMA 4X/IP67 Enclosure, 0 to 60 deg C, ULTEM Environmental Conditions: -40 to 212 deg F Storage Temperature, 100% Relative Humidity, 30 gn Shock Resistance
Part Number # SM656A33254FP
SKU # 2405277
$607.24 / Each
Telemecanique SM656A33254FP Key Features
| Brand: | Telemecanique |
|---|---|
| Part Number # : | SM656A33254FP |
| SKU #: | 2405277 |
| Enclosure Type: | NEMA 4X/IP67 |
| Environmental Conditions: | -40 to 212 deg F Storage Temperature, 100% Relative Humidity, 30 gn Shock Resistance |
| Frequency Response: | 500 kHz |
| Measuring Range: | 25.4 to 76.2 mm |
| Response Time: | 0.5 ms |
| Sensing Distance: | 3 in |
| Sensing Method: | Ultrasonic |
| Series: | Superprox 600 |
| Size: | 84.32 mm L x 30 mm W x 16.25 mm D |
| Temperature Rating (Degrees F): | 0 to 60 deg C |
| Type: | Flat Form Subcompact Fixed |
| Connection type: | 4-Pin M12 Male |
| Country of origin: | US |
| Material: | ULTEM, ULTEM® |
| Output type: | Analog |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122230 |
| UPC: | 03389119108423 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$607.24 / Each
Quantity:
- Schneider Electric Square D Ultrasonic Proximity Sensor, Flat Form Subcompact Fixed, Series: Superprox 600, Ultrasonic Sensing Method, 3 in Sensing Distance, 25.4 to 76.2 mm Measuring, Analog Output, 10 to 28/12 to 24 V DC, 500 kHz Frequency Response, 4-Pin M12 Male Connection, 0.5 ms Response, 84.32 mm L x 30 mm W x 16.25 mm D Size, NEMA 4X/IP67 Enclosure, 0 to 60 deg C, ULTEM, Environmental Conditions: -40 to 212 deg F Storage Temperature, 100% Relative Humidity, 30 gn Shock Resistance
SM656A33254FP Application
Discrete Proximity, Analog and Dual-Level SensingSM656A33254FP Standards
UL Listed|CE Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2405277Part Number #SM656A33254FPUNSPSC39122230UPC03389119108423
