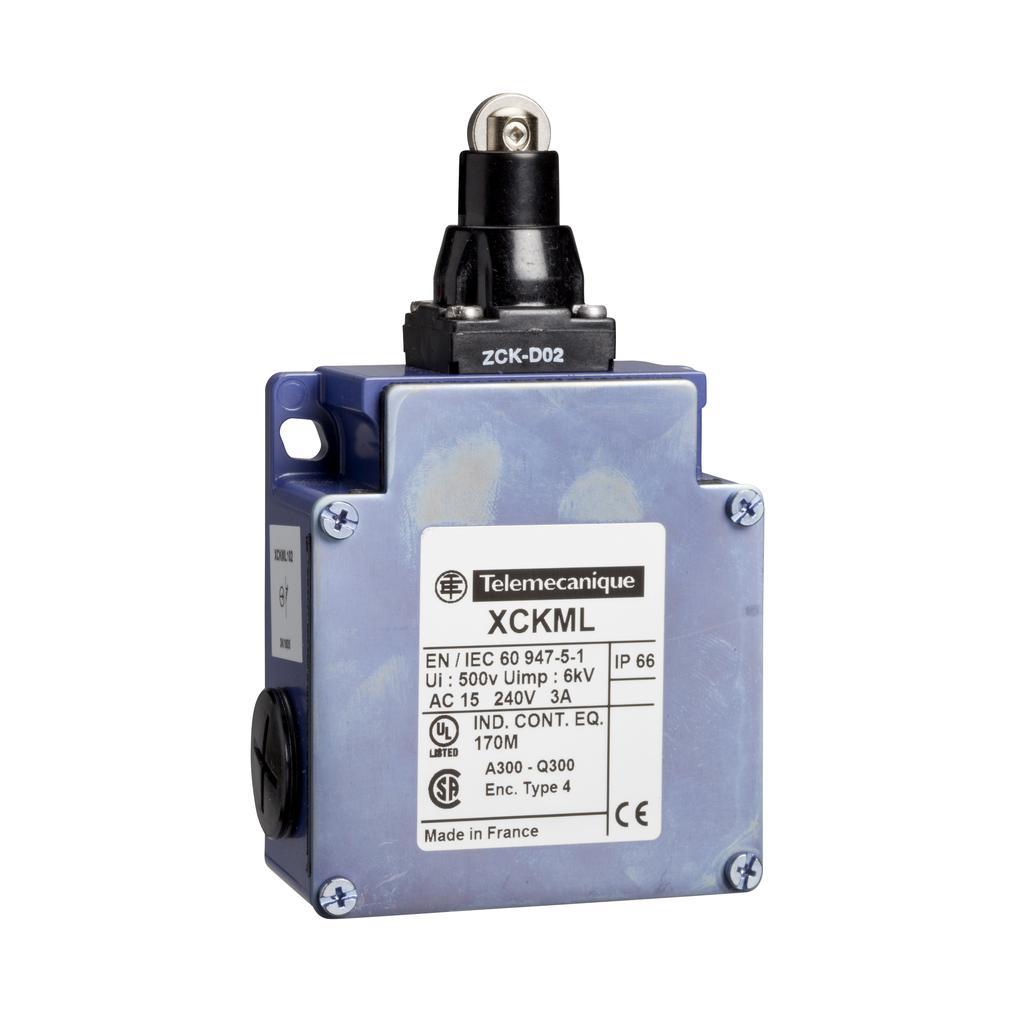

Telemecanique XCKML102

Brand: Telemecanique

Part Number: XCKML102

Telemecanique OsiSense® Limit Switch, Compact Fixed Medium Duty Standard Format, Series: XCKML, 240 VAC, 10 A, 2NO-2NC, 3 A at 240 VAC, 0.27 A at 250 VDC Contact, 4 Pole, 25 MOhm Closed Contact Resistance, Lateral/Snap, Roller Plunger Spring Return, Screw Clamp Terminal, NEMA 1/2/4/6/6P/12/13/IP66, Body Mount, 81 mm H x 77 mm W x 36 mm D, 5000000 Cycles Operating Cycles, -25 to 70 deg C Operating, Metal, Environmental Conditions: -40 to 158 deg F Storage

Additional Description: TELE-XCKML102 (N) LIMIT SWITCH 240VAC 10AMP XCK +OPTIONS Standard, XCKML, steel roller plunger, 2x(1NC+1NO), snap action, Pg13 NON-CANCELABLE, NON-RETURNABLE

Catalog Description: This product is part of the XC Standard range, an offer of limit switches. The limit switch is a device that converts a mechanical motion into an electrical control signal. It has 2 x (1 normally closed + 1 normally opened), snap action contacts with positive opening operation and provides switch actuation by 30° cam. It has a spring return metal roller plunger and supports lateral approach in 2 directions. The movement of limit switch operating head is linear. It is furnished with screw clamp terminals for electrical connection and 3 entry tapped for PG13.5 cable gland. It is an IP66 and IK05 rated product. It is a switch with a conventional enclosed thermal current of 10A AC. It offers long mechanical and electrical life, the mechanical durability is about 3 million operating cycles and electrical durability is 5 million operating cycles. This limit switch has a fixed type body which is made of Zamak. Its dimensions are 77mm (Width) x 36mm (Depth) x 81mm (Height) and weighs 0.405kg
