Part Number # XCKP2101G11
SKU # 2427259
Image Disclaimers Message
XCKP2101G11

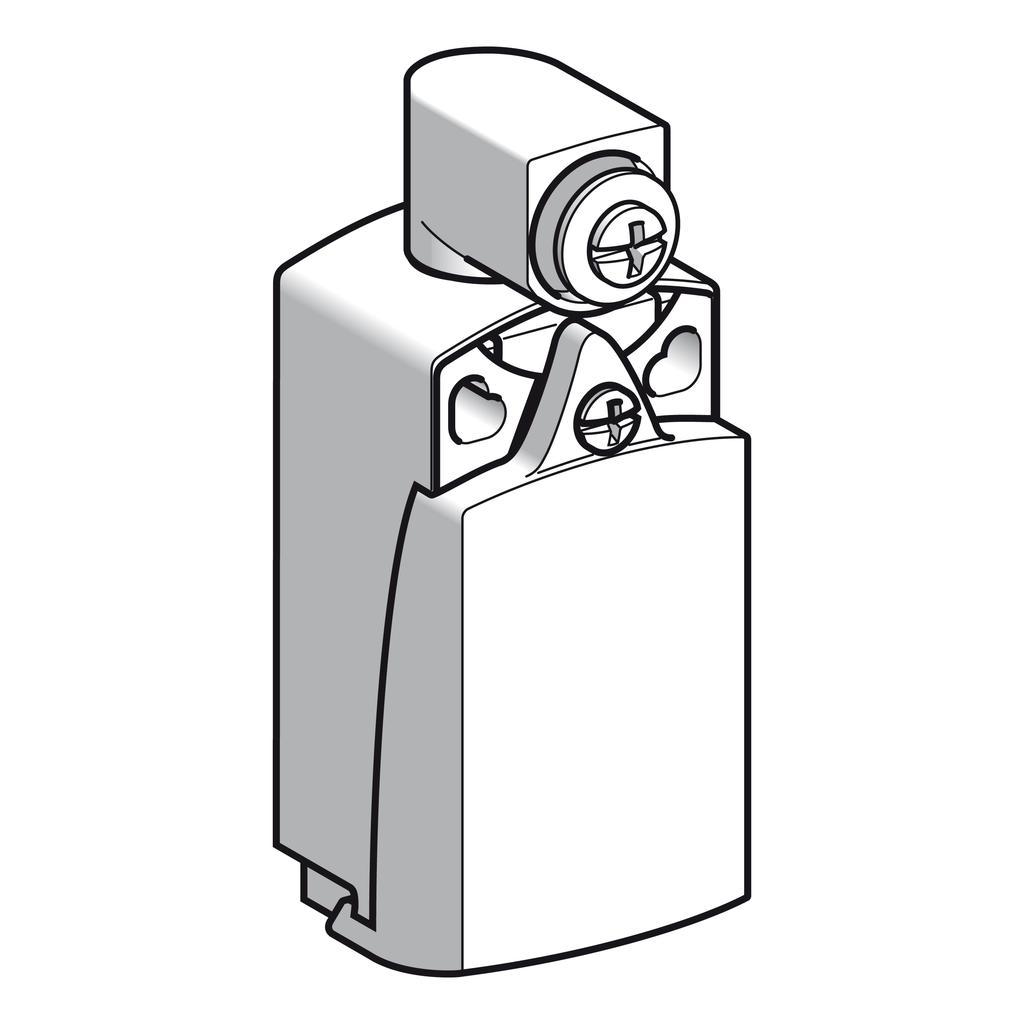

Telemecanique XCKP2101G11 Limit Switch
Part Number # XCKP2101G11
SKU # 2427259
$89.91 / Each
Telemecanique XCKP2101G11 Key Features
| Brand: | Telemecanique |
|---|---|
| Part Number # : | XCKP2101G11 |
| SKU #: | 2427259 |
| Action: | Snap |
| Actuator: | Spring Return Without Operating Lever |
| Amperage Rating: | 3 A |
| Connection type: | Screw Clamp |
| Contact Configuration: | 1NO-1NC |
| Contact Rating: | A300/Q300 |
| Country of origin: | FR |
| Environmental Conditions: | -40 to 158 deg F Storage Temperature |
| Material: | Plastic |
| Mounting type: | Body |
| Number of Poles: | 2 |
| Operating Cycles: | 5000000 Cycles |
| Operating Temperature: | -13 to 158 deg F |
| Series: | XCKP |
| Size: | 1.22 in W x 1.18 in D x 2.56 in H |
| Type: | Compact Fixed Rotary Standard Format |
| Manufacturer Name: | YAGEO Corporation |
| UNSPSC: | 39122213 |
| UPC: | 03389110316773 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$89.91 / Each
Quantity:
- Telemecanique OsiSense XC Limit Switch, Compact Fixed Rotary Standard Format, Series: XCKP, 240 V AC, 3 A, 1NO-1NC, A300/Q300 Contact, 2 Pole, 25 MOhm Closed Contact Resistance, Snap, Spring Return Without Operating Lever, Screw Clamp, Zb Insulation, Body Mount, 1.22 in W x 1.18 in D x 2.56 in H, 5000000 cycles Operating Cycles, -13 to 158 deg F Operating, Plastic, Environmental Conditions: -40 to 158 deg F Storage Temperature
XCKP2101G11 Item Features
- Spring Return Without Operating Lever
- https://youtu.be/bNhfLNTKLkY
XCKP2101G11 Standards
CCC Certified|CSA C22.2 14|EN 60204-1/60947-5-1|ECCN: EAR99|Green Premium Listed|IEC 60947-5-1/60204-1|REACH Compliant|RoHS Compliant|UL File No. 508|PROP65: This product can expose you to chemicals including, Di-isononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.SKU #2427259Part Number #XCKP2101G11UNSPSC39122213UPC03389110316773
