Part Number # XCMD4102T1
SKU # 2440221
Image Disclaimers Message
Brand: Telemecanique
XCMD4102T1

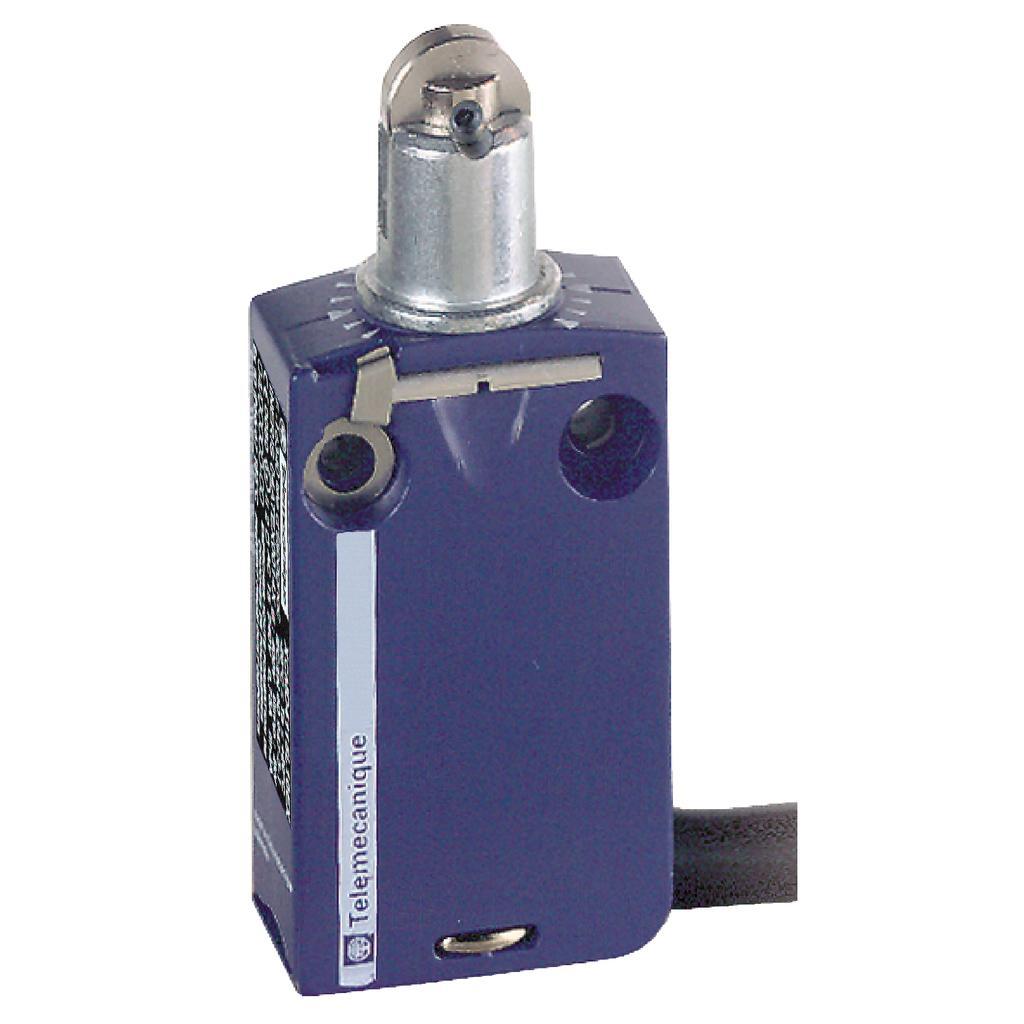

Telemecanique XCMD4102T1
Part Number # XCMD4102T1
SKU # 2440221
$116.93 / Each
Telemecanique XCMD4102T1 Key Features
| Brand: | Telemecanique |
|---|---|
| Part Number # : | XCMD4102T1 |
| SKU #: | 2440221 |
| Action: | Linear |
| Actuator: | Roller Plunger |
| Connection type: | Removable Cable Connector |
| Contact Configuration: | 2NO+2NC (Time Delayed), 2NO-2NC (Time Delayed) |
| Country of origin: | US |
| Enclosure Type: | IP66/IP67/IP68 |
| Environmental Conditions: | -40 to 158 deg F Storage Temperature, -13 to 158 deg F Operating Temperature |
| Finish: | TC |
| Material: | Metal |
| Mounting type: | Fixed |
| Number of Poles: | 4 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -13 to 158 deg F |
| Series: | Standard format |
| Type: | Standard Format |
| Manufacturer Name: | YAGEO Corporation |
| UNSPSC: | 39122213 |
| UPC: | 03389119079600 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$116.93 / Each
Quantity:
Telemecanique XCMD4102T1
Brand: Telemecanique
Part Number: XCMD4102T1
Additional Description: TELE-XCMD4102T1 (N) LIMIT SWITCH METAL 2NO2NC CABLE EN50306 Standard, INTERRUPTEUR DE POSITION METAL 2 O et 2 F NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Limit switch, Limit switches XC Standard, INTERRUPTEUR DE POSITION METAL 2 O et 2 F
XCMD4102T1 Item Features
- Fixed body type
- Zamak body material
- Zamak head material
- By the body fixing mode
- Lateral approach, 2 directions type of approach
- By 30 deg cam switch actuation
- 3.28 ft 1 m cable length
- PUR wire insulation material
- Zb contacts insulation form
- With positive opening
- 35 N positive opening minimum force
- 8.5 N minimum force for tripping
- 01 m/min minimum actuation speed
- 1.64 ft/s 0.5 m/s maximum actuation speed
- 300 V 3 IEC 60947-5-1 ui rated insulation voltage
- 25 mOhm IEC 60255-7 category 3 maximum resistance across terminals
- 4 kV IEC 606644 kV IEC 60947-1 uimp rated impulse withstand voltage
- 6 A cartridge fuse gG short-circuit protection
- 10000000 cycles mechanical durability
XCMD4102T1 Standards
PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|EN/IEC 60947-5-1EN/IEC 60204-1|CSAULCCCSKU #2440221Part Number #XCMD4102T1UNSPSC39122213UPC03389119079600
